固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422H1332J000FIXED IND 3.3UH 770MA 180MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 770 mA | - | Unshielded | 180mOhm Max | 10 @ 2.52MHz | 70MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
B82141A1474J000FIXED IND 470UH 90MA 12 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 90 mA | - | Unshielded | 12Ohm Max | 60 @ 796kHz | 2.3MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82473A1473K000FIXED IND 47UH 1.1A 180 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | 1.2A | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
B82471A1223M000FIXED IND 22UH 1.11A 180MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.11 A | 1.2A | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|
B82476B1102M100FIXED IND 1UH 7.5A 8 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.5 A | 9A | Unshielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
B82464A4332M000FIXED IND 3.3UH 4.9A 15 MOHM SMD EPCOS - TDK Electronics |
12 |
|
规格书 |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.9 A | 6.6A | Unshielded | 15mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

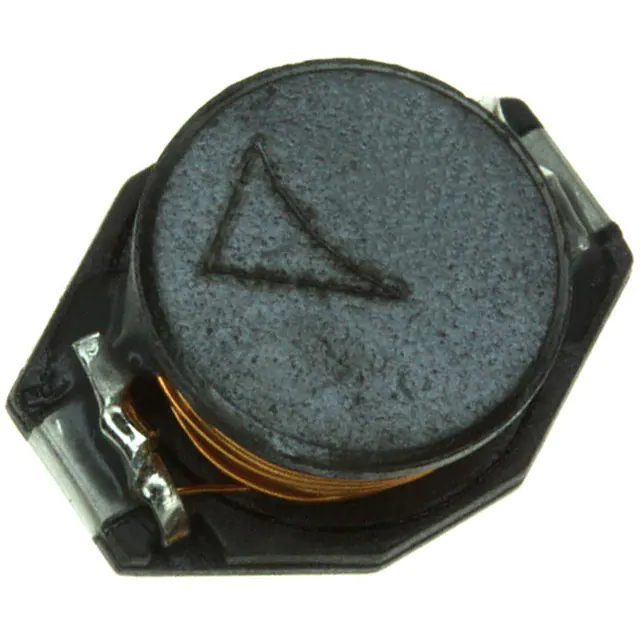

B82476A1222M000FIXED IND 2.2UH 6.1A 10.5MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 10.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
B82472P6224M000FIXED IND 220UH 430MA 880MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 430 mA | 360mA | Shielded | 880mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
B82479A1154M000FIXED IND 150UH 1.5A 250MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.5 A | 2.6A | Unshielded | 250mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
B82477P4154M000FIXED IND 150UH 1.61A 185MOHM SM EPCOS - TDK Electronics |
4 |
|
规格书 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.61 A | 1.7A | Shielded | 185mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
