固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82496C3101J000FIXED IND 100NH 200MA 1.8OHM SMD EPCOS - TDK Electronics |
24,288 |
|
规格书 |

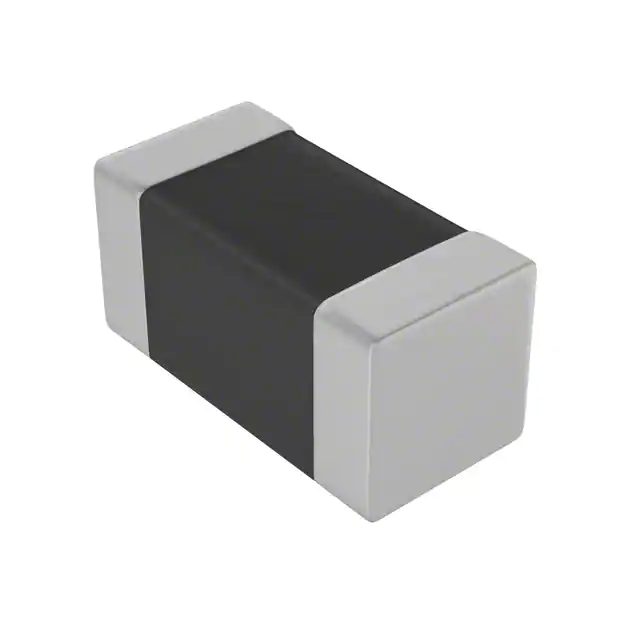

SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 200 mA | - | Unshielded | 1.8Ohm Max | 14 @ 100MHz | 1.8GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3229A000FIXED IND 2.2NH 1.5A 35 MOHM SMD EPCOS - TDK Electronics |
16,140 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.3nH | 1.5 A | - | Unshielded | 35mOhm Max | 14 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3120G000FIXED IND 12NH 450MA 350MOHM SMD EPCOS - TDK Electronics |
32,271 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 450 mA | - | Unshielded | 350mOhm Max | 14 @ 100MHz | 5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
.jpg)
|
B82422H1104K000FIXED IND 100UH 150MA 4.8OHM SMD EPCOS - TDK Electronics |
3,570 |
|
规格书 |

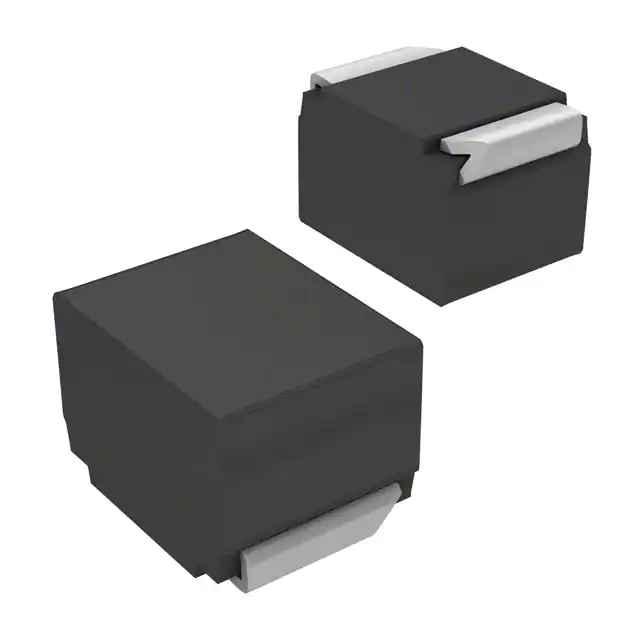

SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 150 mA | - | Unshielded | 4.8Ohm Max | 20 @ 796kHz | 8MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1223K000FIXED IND 22UH 330MA 1 OHM SMD EPCOS - TDK Electronics |
20,317 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 330 mA | - | Unshielded | 1Ohm Max | 12 @ 2.52MHz | 21MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1103K000FIXED IND 10UH 500MA 460MOHM SMD EPCOS - TDK Electronics |
10,395 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 500 mA | - | Unshielded | 460mOhm Max | 12 @ 2.52MHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1472K000FIXED IND 4.7UH 700MA 250MOHM SM EPCOS - TDK Electronics |
28,226 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 700 mA | - | Unshielded | 250mOhm Max | 10 @ 2.52MHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1474K000FIXED IND 470UH 76MA 20 OHM SMD EPCOS - TDK Electronics |
24,491 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 76 mA | - | Unshielded | 20Ohm Max | 20 @ 796kHz | 3.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1222K000FIXED IND 2.2UH 800MA 160MOHM SM EPCOS - TDK Electronics |
21,551 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 800 mA | - | Unshielded | 160mOhm Max | 10 @ 2.52MHz | 90MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1684K000FIXED IND 680UH 61MA 31 OHM SMD EPCOS - TDK Electronics |
33,928 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 61 mA | - | Unshielded | 31Ohm Max | 20 @ 796kHz | 3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
