固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSHB0540R-100MSMD MOLDING POWER CHOKE CODACA |
735 |
|
规格书 |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 4 A | 4.8A | Shielded | 78.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
CSHB0520R-2R2MSMD MOLDING POWER CHOKE CODACA |
496 |
|
规格书 |
CSHB0520R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 7 A | 7.5A | Shielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.079" (2.00mm) |
|
CSAB1260A-330MSMD MOLDING POWER CHOKE CODACA |
380 |
|
规格书 |
CSAB1260A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 33 µH | ±20% | 5.3 A | 6A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.236" (6.00mm) |
|
|
CSAB1260A-101MSMD MOLDING POWER CHOKE CODACA |
2,679 |
|
规格书 |
CSAB1260A | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 100 µH | ±20% | 3.1 A | 3.5A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.236" (6.00mm) |
|
|
CSAB1265A-1R0MSMD MOLDING POWER CHOKE CODACA |
380 |
|
规格书 |
CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 31 A | 42A | Shielded | 2.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.248" (6.30mm) |
|
|
CSAB1265A-3R3MSMD MOLDING POWER CHOKE CODACA |
365 |
|
规格书 |
CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 18.5 A | 26A | Shielded | 5.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.248" (6.30mm) |
|
|
CSAB1260A-220MSMD MOLDING POWER CHOKE CODACA |
250 |
|
规格书 |
CSAB1260A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 6.8 A | 7.5A | Shielded | 39.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.236" (6.00mm) |
|
CSBX0640-2R2MSMD HIGH CURRENT POWER INDUCTOR CODACA |
983 |
|
规格书 |
CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 9 A | 16A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
CSBL0640-2R2MSMD HIGH CURRENT POWER INDUCTOR CODACA |
975 |
|
规格书 |
CSBL0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 9 A | 13A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
|

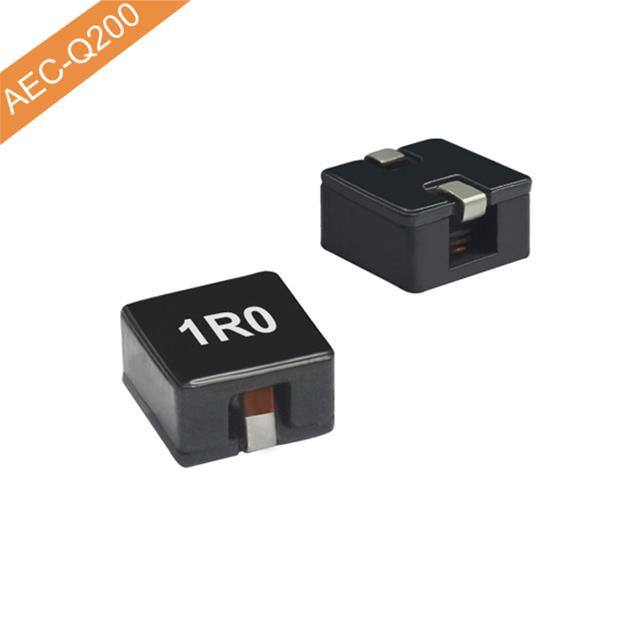

CSBL0640-1R0MSMD HIGH CURRENT POWER INDUCTOR CODACA |
958 |
|
规格书 |
CSBL0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1 µH | ±20% | 15.5 A | 19A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.146" (3.70mm) |
