固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1208-222KLFIXED IND 2.2MH 400MA 4.2OHM SMD Bourns Inc. |
2,484 |
|
规格书 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 400 mA | 420mA | Shielded | 4.2Ohm Max | 20 @ 252kHz | 650kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-470YLFIXED IND 47UH 2.2A 85 MOHM SMD Bourns Inc. |
2,347 |
|
规格书 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 2.2 A | 3.1A | Shielded | 85mOhm Max | 24 @ 2.52MHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|

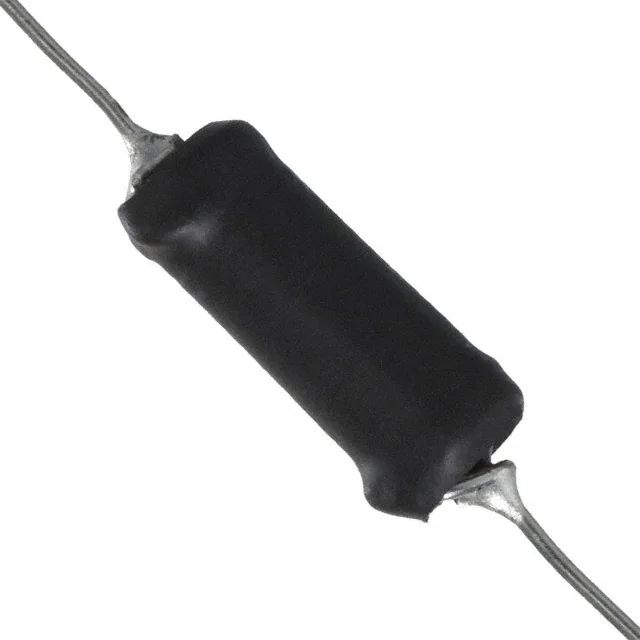

5800-102-RCFIXED IND 1MH 240MA 2.5 OHM TH Bourns Inc. |
34,065 |
|
规格书 |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 240 mA | 360mA | Unshielded | 2.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
SRR1260-101MFIXED IND 100UH 1.7A 180MOHM SMD Bourns Inc. |
167,987 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 1.7A | Shielded | 180mOhm Max | 26 @ 796kHz | 6.07MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRR1280-100MFIXED IND 10UH 6A 19.5 MOHM SMD Bourns Inc. |
89,951 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6 A | 6.3A | Shielded | 19.5mOhm Max | 24 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-151KFIXED IND 150UH 1.85A 270MOHM SM Bourns Inc. |
32,273 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.85 A | 1.9A | Shielded | 270mOhm Max | 24 @ 796kHz | 4.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1260-150MFIXED IND 15UH 5A 27 MOHM SMD Bourns Inc. |
29,884 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 4.6A | Shielded | 27mOhm Max | 25 @ 2.52MHz | 17.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1280-101MFIXED IND 100UH 2.1A 150MOHM SMD Bourns Inc. |
28,431 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.1 A | 2A | Shielded | 150mOhm Max | 18 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-150MFIXED IND 15UH 5.2A 28.5MOHM SMD Bourns Inc. |
25,524 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.2 A | 5A | Shielded | 28.5mOhm Max | 26 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-470MFIXED IND 47UH 2.9A 80 MOHM SMD Bourns Inc. |
20,258 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.9 A | 2.8A | Shielded | 80mOhm Max | 24 @ 2.52MHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
