固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

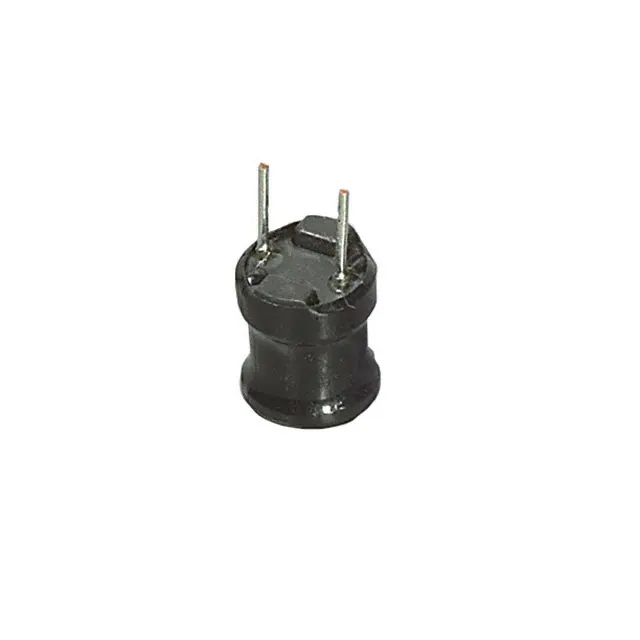

7447452221FIXED IND 220UH 1.2A 290 MOHM TH Würth Elektronik |
149 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.2 A | 1.05A | Unshielded | 290mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|

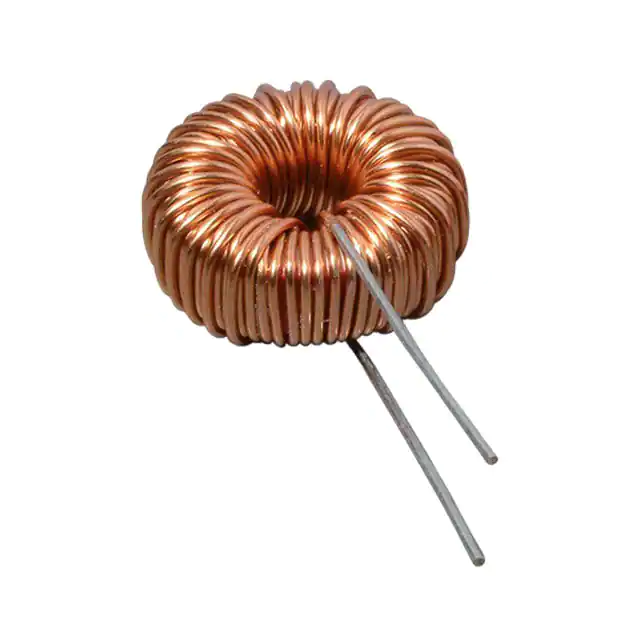

7447055FIXED IND 150UH 5.4A 42 MOHM TH Würth Elektronik |
419 |
|
规格书 |
WE-FI | Radial | Bulk | Active | Toroidal | Ferrite | 150 µH | ±20% | 5.4 A | - | Unshielded | 42mOhm Max | - | - | - | -25°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.024" Dia x 0.512" W (26.00mm x 13.00mm) | - |
|
744065101FIXED IND 100UH 1A 470 MOHM SMD Würth Elektronik |
4,431 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1 A | 900mA | Shielded | 470mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065100FIXED IND 10UH 3A 53 MOHM SMD Würth Elektronik |
3,751 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3 A | 2.5A | Shielded | 53mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
7440650047FIXED IND 4.7UH 4.6A 23 MOHM SMD Würth Elektronik |
471 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.6 A | 4.2A | Shielded | 23mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|

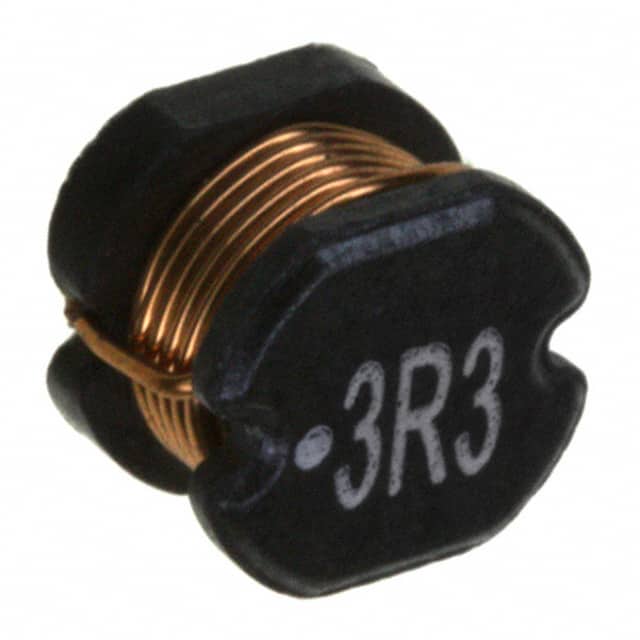

744774033FIXED IND 3.3UH 4A 60 MOHM SMD Würth Elektronik |
7,549 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4 A | 7.5A | Unshielded | 60mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

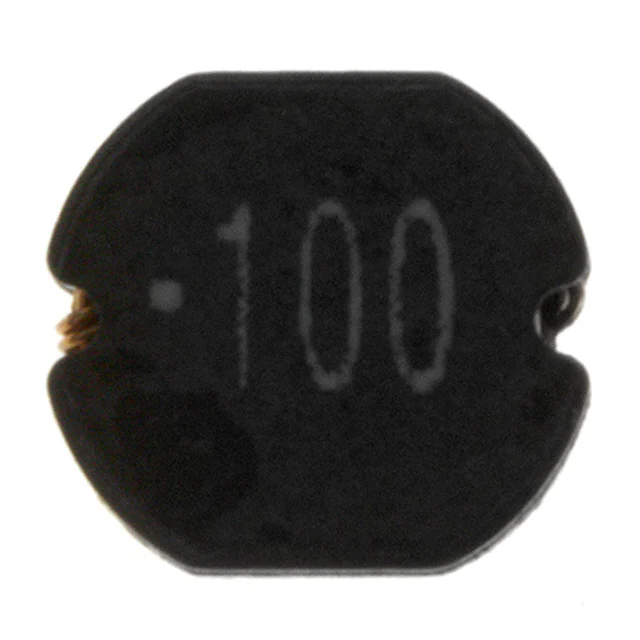

7447745100FIXED IND 10UH 1.7A 130 MOHM SMD Würth Elektronik |
6,963 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 1.6A | Unshielded | 130mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|

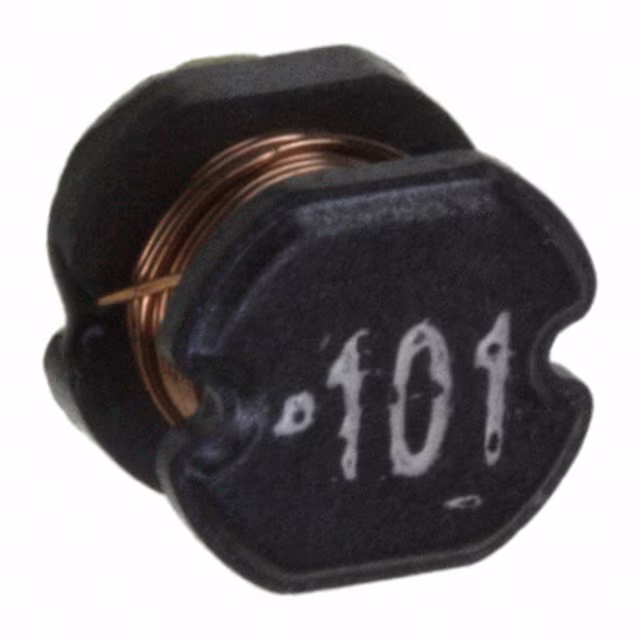

74477420FIXED IND 100UH 570MA 650MOHM SM Würth Elektronik |
6,684 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 570 mA | 680mA | Unshielded | 650mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

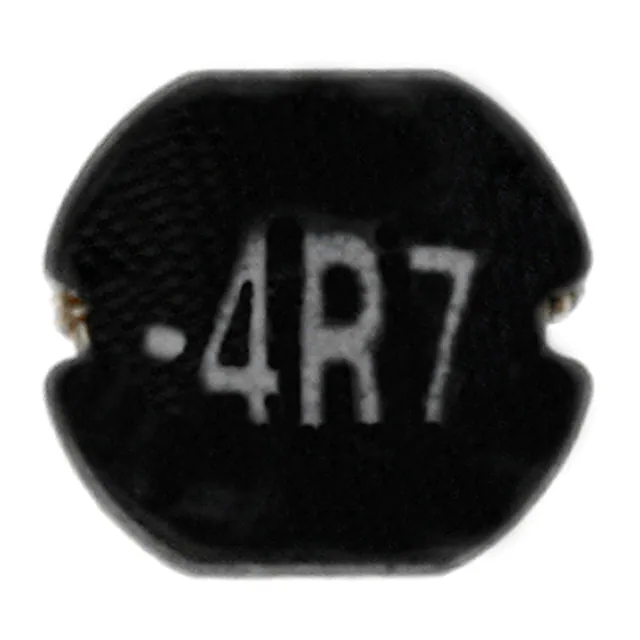

7447745047FIXED IND 4.7UH 2.5A 65 MOHM SMD Würth Elektronik |
5,583 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 2.4A | Unshielded | 65mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
744774122FIXED IND 22UH 1.28A 180MOHM SMD Würth Elektronik |
5,402 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.28 A | 1.53A | Unshielded | 180mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
