固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744308033FIXED IND 330NH 25A 0.00037OHM Würth Elektronik |
2,177 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 nH | ±20% | 25 A | 32A | Shielded | 0.37mOhm | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1070 | 0.398" L x 0.276" W (10.10mm x 7.00mm) | 0.276" (7.00mm) |
|
|
744308015FIXED IND 150NH 25A 0.00037OHM Würth Elektronik |
1,178 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 nH | ±20% | 25 A | 60.7A | Shielded | 0.37mOhm | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1070 | 0.398" L x 0.276" W (10.10mm x 7.00mm) | 0.276" (7.00mm) |
|
744301047FIXED IND 470NH 38A 0.00032OHM Würth Elektronik |
1,133 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 470 nH | ±20% | 38 A | 36.1A | Shielded | 0.32mOhm | - | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1190 | 0.445" L x 0.433" W (11.30mm x 11.00mm) | 0.370" (9.40mm) |
|
|

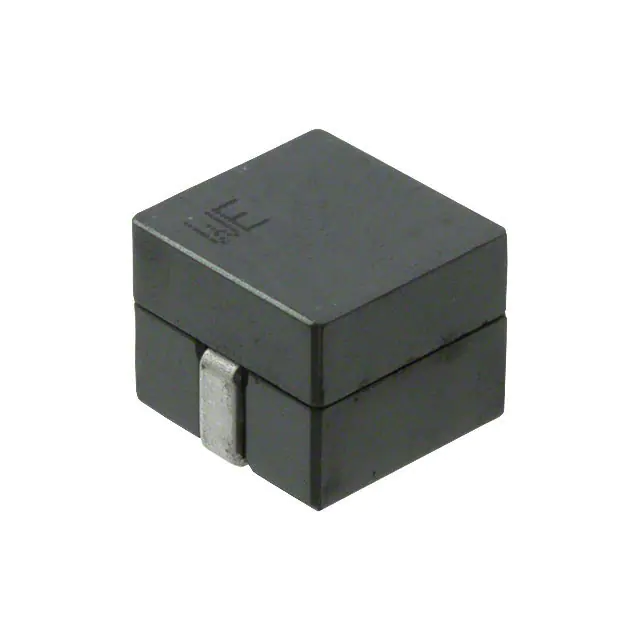

744301025FIXED IND 250NH 38A 0.00032OHM Würth Elektronik |
811 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 250 nH | ±20% | 38 A | 64.7A | Shielded | 0.32mOhm | - | 250MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1190 | 0.445" L x 0.433" W (11.30mm x 11.00mm) | 0.370" (9.40mm) |
|
|

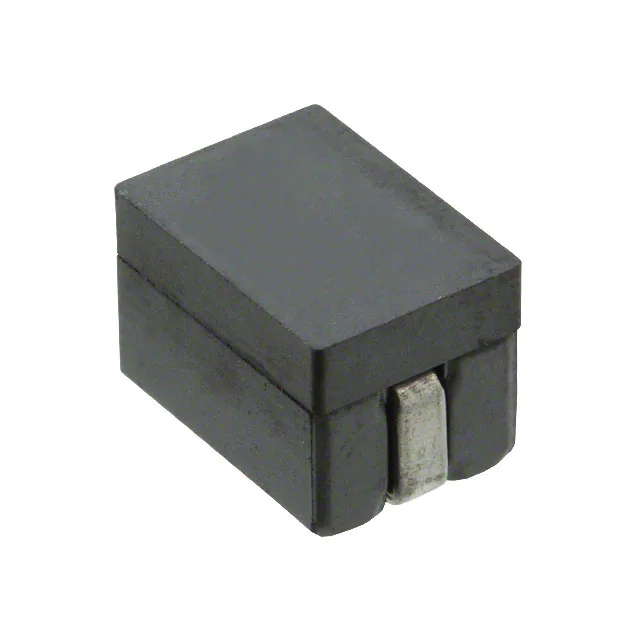

744308040FIXED IND 400NH 25A 0.00037OHM Würth Elektronik |
597 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 400 nH | ±20% | 25 A | 28.3A | Shielded | 0.37mOhm | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1070 | 0.398" L x 0.276" W (10.10mm x 7.00mm) | 0.276" (7.00mm) |
|

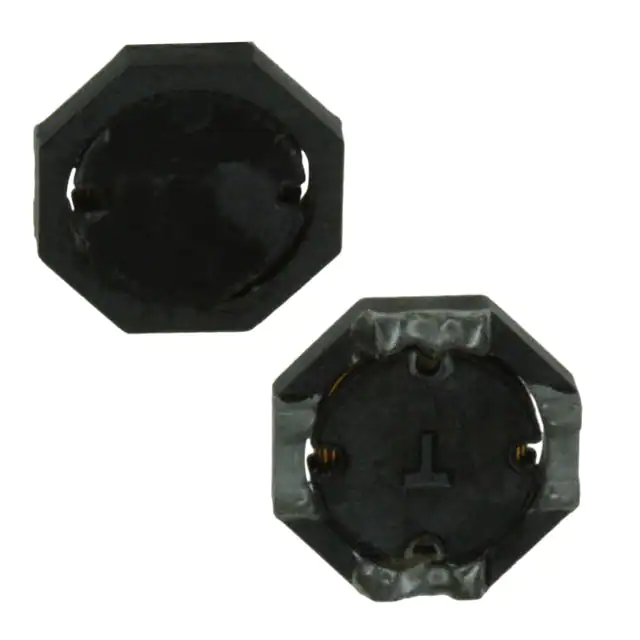

7440700033FIXED IND 3.3UH 3.2A 36 MOHM SMD Würth Elektronik |
1,409 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.2 A | 2.55A | Shielded | 36mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.079" (2.00mm) |
|
|
7440700100FIXED IND 10UH 2A 94 MOHM SMD Würth Elektronik |
1,125 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2 A | 1.55A | Shielded | 94mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.079" (2.00mm) |
|
|
7440700047FIXED IND 4.7UH 3A 45 MOHM SMD Würth Elektronik |
965 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3 A | 2.2A | Shielded | 45mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.079" (2.00mm) |
|
7440650022FIXED IND 2.2UH 6.2A 15 MOHM SMD Würth Elektronik |
199 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.2 A | 5.9A | Shielded | 15mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
78438357047FIXED IND 4.7UH 3.9A 44MOHM SMD Würth Elektronik |
11,474 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 4.7 µH | ±20% | 3.9 A | 6.4A | Shielded | 44mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
