固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744053101FIXED IND 100UH 450MA 480MOHM SM Würth Elektronik |
3,404 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 450 mA | 450mA | Shielded | 480mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
744053220FIXED IND 22UH 1.15A 120MOHM SMD Würth Elektronik |
2,929 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.15 A | 900mA | Shielded | 120mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
744053008FIXED IND 8.2UH 2.1A 55 MOHM SMD Würth Elektronik |
1,344 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 2.1 A | 1.6A | Shielded | 55mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
744053330FIXED IND 33UH 900MA 190MOHM SMD Würth Elektronik |
1,309 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 900 mA | 750mA | Shielded | 190mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
744053221FIXED IND 220UH 300MA 1.25OHM SM Würth Elektronik |
434 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 300 mA | 290mA | Shielded | 1.25Ohm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|

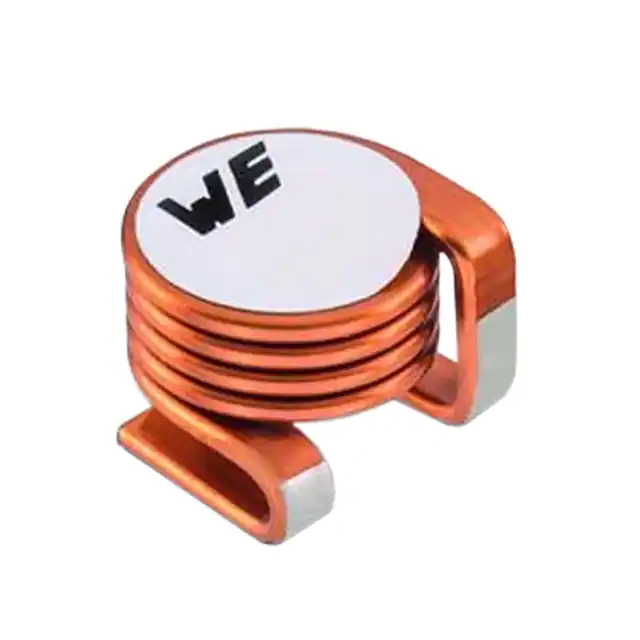

7449150146FIXED IND 146NH 19A 3.33MOHM SMD Würth Elektronik |
437 |
|
规格书 |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 146 nH | ±20% | 19 A | - | Unshielded | 3.33mOhm Max | 163 @ 100MHz | 332MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1010 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
744025220FIXED IND 22UH 500MA 575MOHM SMD Würth Elektronik |
7,845 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 750mA | Shielded | 575mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
|
744025003FIXED IND 3.3UH 1.5A 101MOHM SMD Würth Elektronik |
3,306 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1.8A | Shielded | 101mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
|
744025004FIXED IND 4.7UH 1.35A 120MOHM SM Würth Elektronik |
1,002 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.35 A | 1.7A | Shielded | 120mOhm Max | - | 84MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
|
744025001FIXED IND 1.2UH 2.6A 42 MOHM SMD Würth Elektronik |
324 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 2.6 A | 3A | Shielded | 42mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
