固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

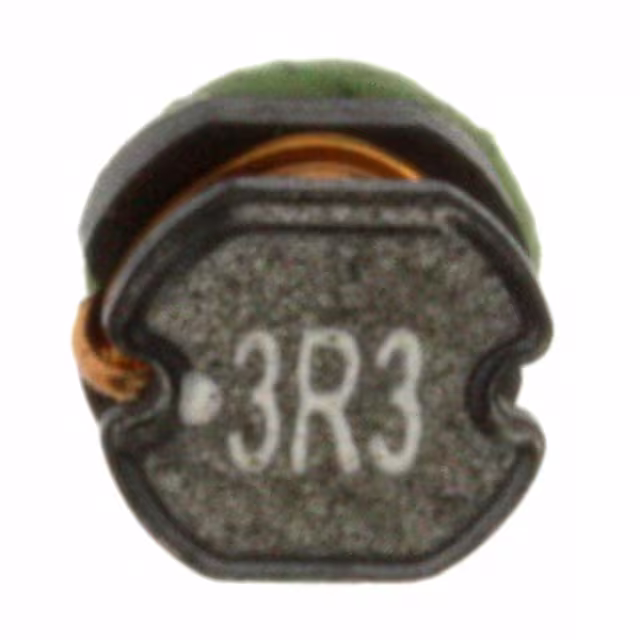

744773033FIXED IND 3.3UH 2A 86 MOHM SMD Würth Elektronik |
10,394 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.88A | Unshielded | 86mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

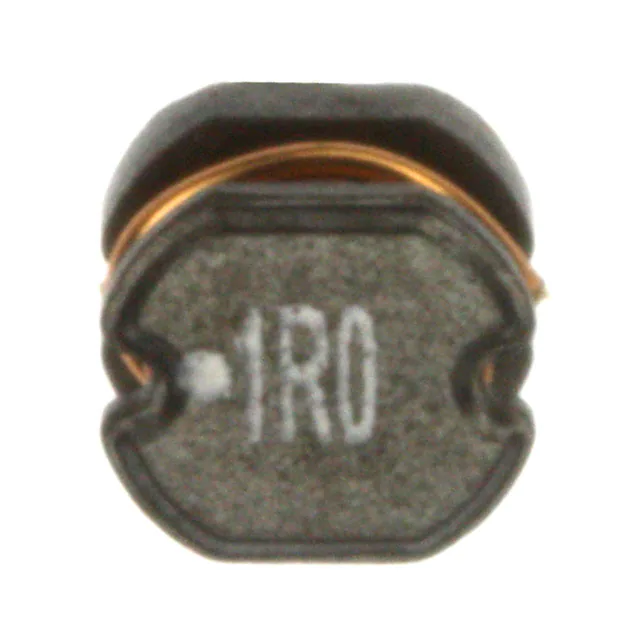

7447730FIXED IND 1UH 4A 49 MOHM SMD Würth Elektronik |
7,184 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4 A | 5.72A | Unshielded | 49mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

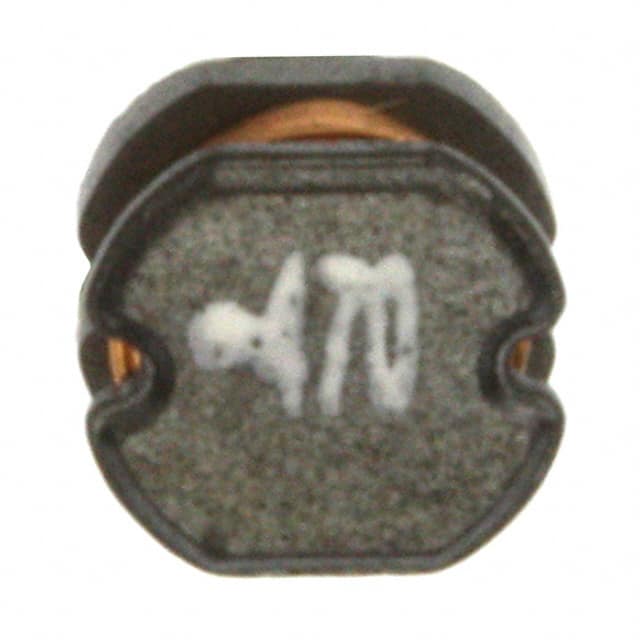

744773147FIXED IND 47UH 680MA 844MOHM SMD Würth Elektronik |
5,815 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 680 mA | 770mA | Unshielded | 844mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
744773022FIXED IND 2.2UH 2.5A 71 MOHM SMD Würth Elektronik |
5,138 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 3.38A | Unshielded | 71mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

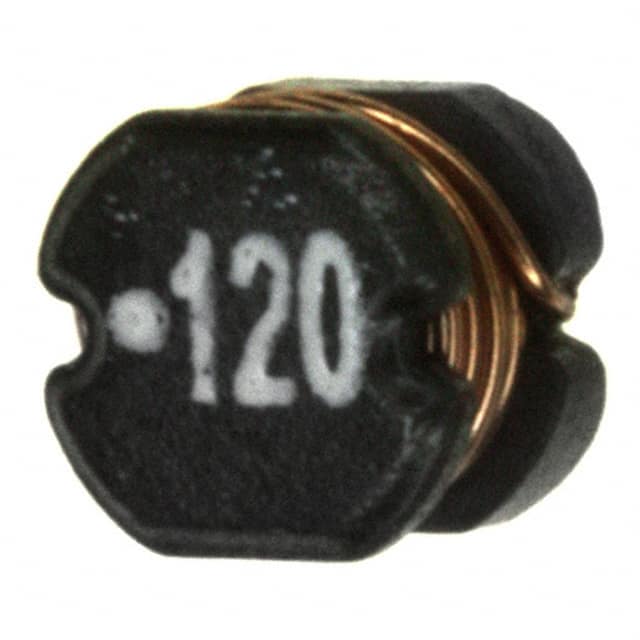

744773112FIXED IND 12UH 1.28A 210MOHM SMD Würth Elektronik |
3,344 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.28 A | 1.62A | Unshielded | 210mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

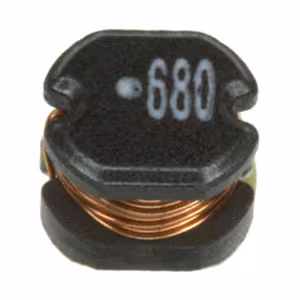

744773168FIXED IND 68UH 560MA 1.117OHM SM Würth Elektronik |
2,905 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 560 mA | 680mA | Unshielded | 1.117Ohm Max | - | 13MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

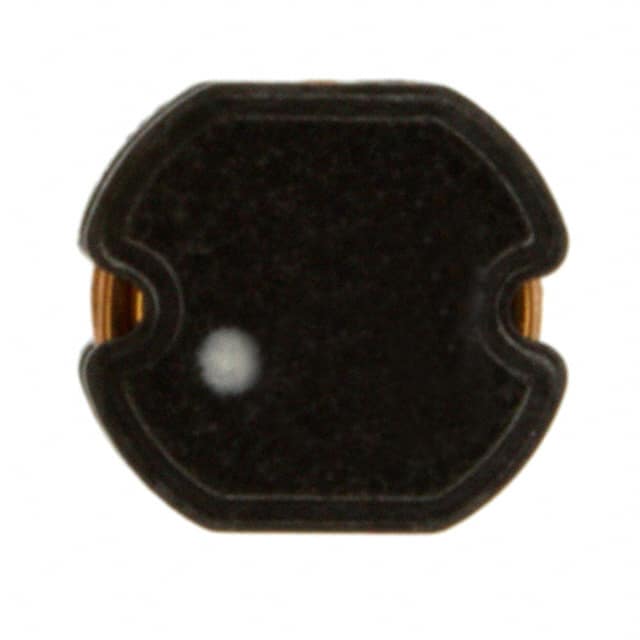

744773047FIXED IND 4.7UH 1.82A 110MOHM SM Würth Elektronik |
2,526 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.82 A | 2.46A | Unshielded | 110mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

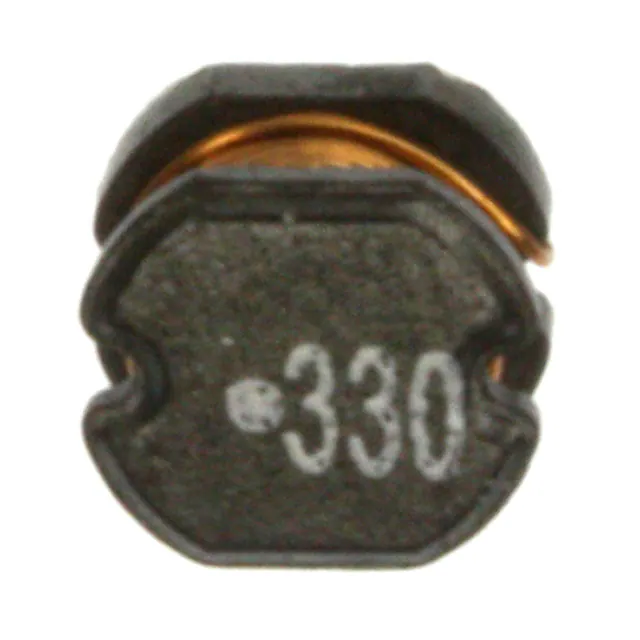

744773133FIXED IND 33UH 860MA 540MOHM SMD Würth Elektronik |
1,122 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 860 mA | 900mA | Unshielded | 540mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
744773068FIXED IND 6.8UH 1.54A 131MOHM SM Würth Elektronik |
899 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.54 A | 2.1A | Unshielded | 131mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773118FIXED IND 18UH 1.1A 338 MOHM SMD Würth Elektronik |
875 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.1 A | 1.29A | Unshielded | 338mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
