固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

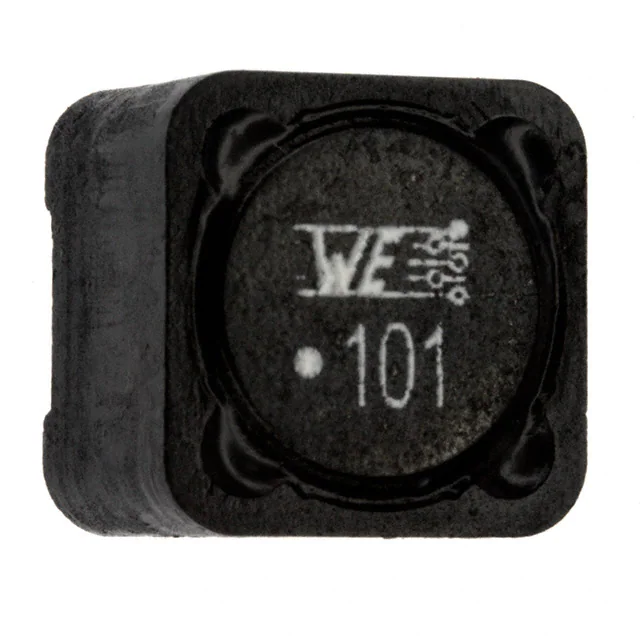

7447709101FIXED IND 100UH 2.5A 110MOHM SMD Würth Elektronik |
5,388 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.5 A | 3.1A | Shielded | 110mOhm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

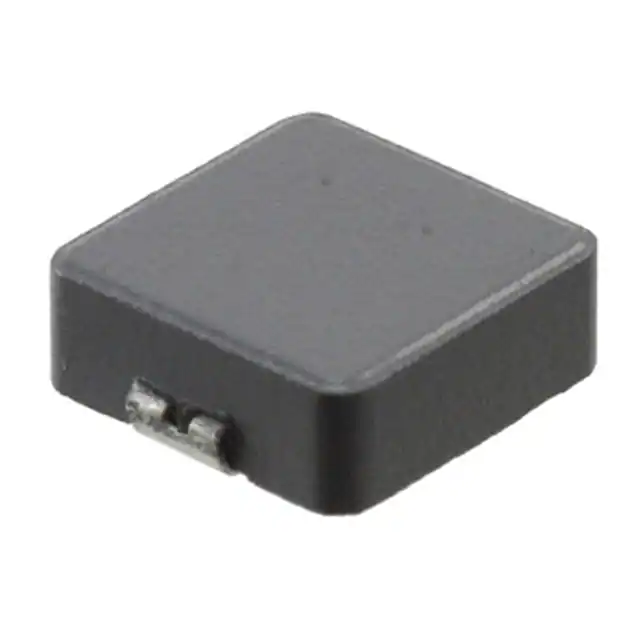

74437368100FIXED IND 10UH 5.2A 0.03OHM SMD Würth Elektronik |
4,757 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 5.2 A | 16.8A | Shielded | 30mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74437368047FIXED IND 4.7UH 7A 0.0155OHM SMD Würth Elektronik |
3,667 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 7 A | 26A | Shielded | 15.5mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

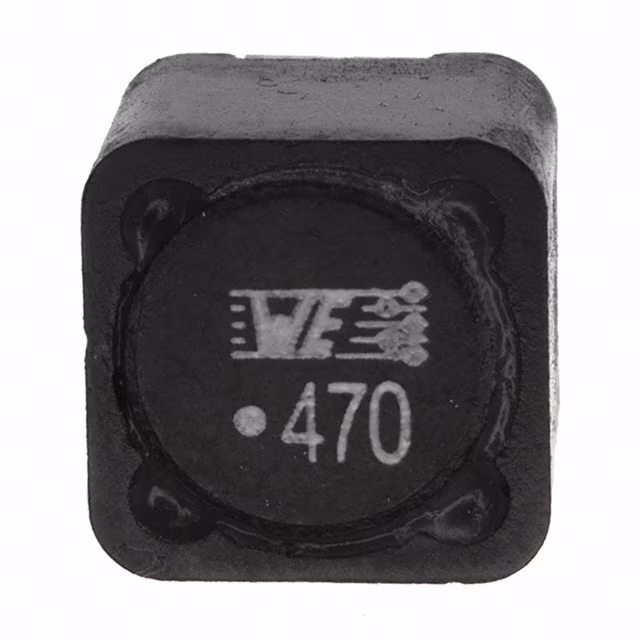

7447709470FIXED IND 47UH 3.8A 60 MOHM SMD Würth Elektronik |
3,651 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3.8 A | 4.5A | Shielded | 60mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

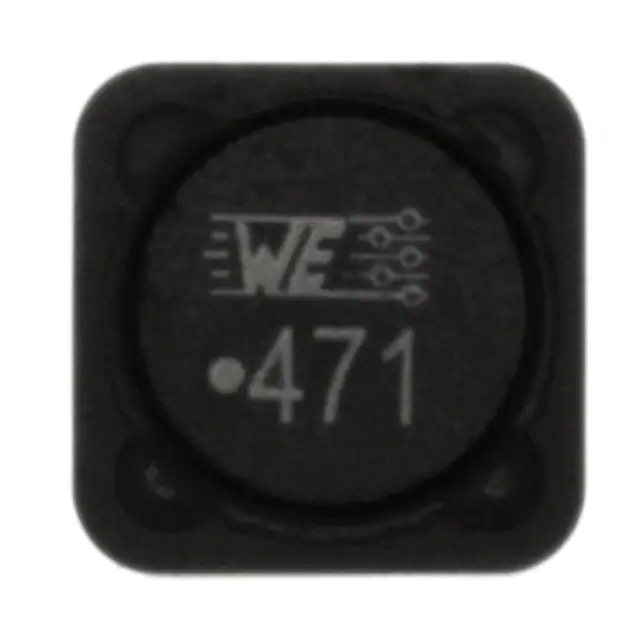

7447709471FIXED IND 470UH 1.4A 560MOHM SMD Würth Elektronik |
1,299 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 1.4 A | 1.5A | Shielded | 560mOhm Max | - | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

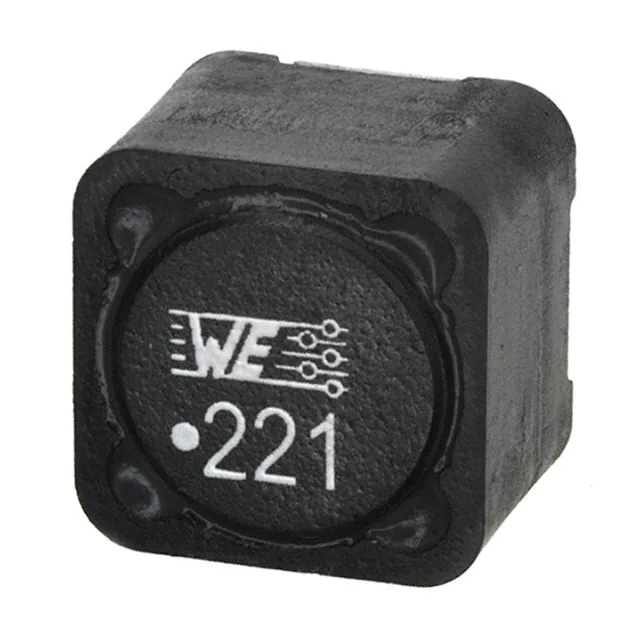

7447709221FIXED IND 220UH 1.8A 300MOHM SMD Würth Elektronik |
981 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.8 A | 2.2A | Shielded | 300mOhm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

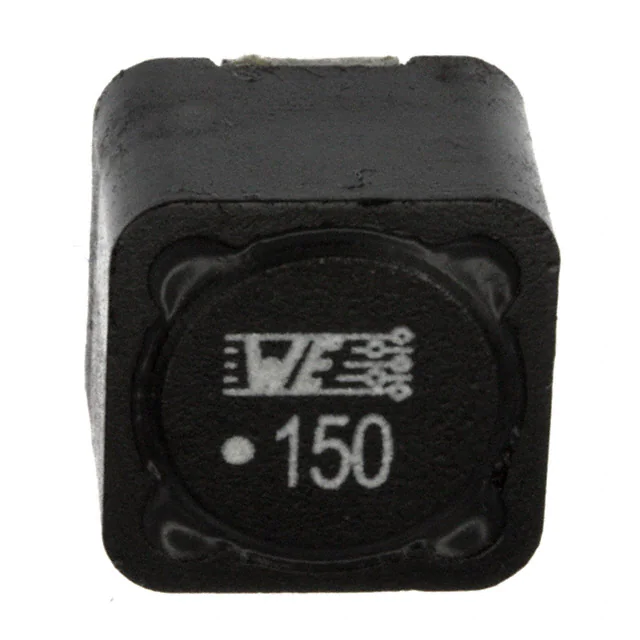

7447709150FIXED IND 15UH 6.5A 26 MOHM SMD Würth Elektronik |
169 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 6.5 A | 8A | Shielded | 26mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7443320820FIXED IND 8.2UH 13A 11.8MOHM SMD Würth Elektronik |
3,224 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 13 A | 12A | Shielded | 11.8mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|

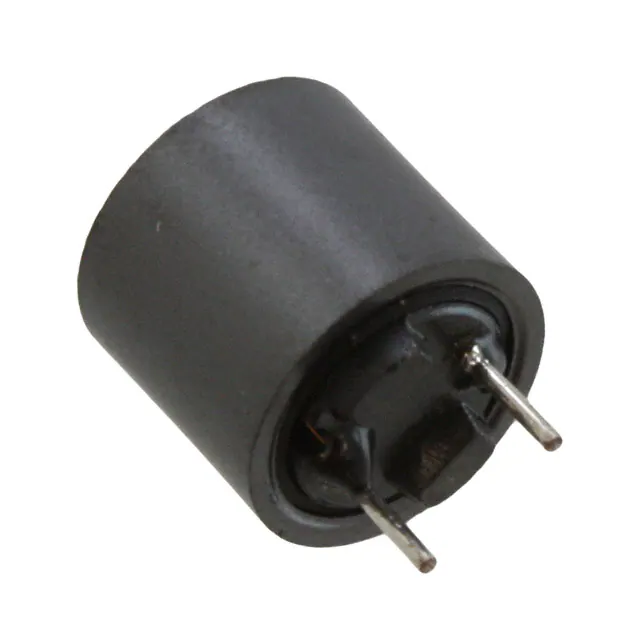

7447471220FIXED IND 22UH 3.7A 48 MOHM TH Würth Elektronik |
557 |
|
规格书 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.7 A | 3A | Shielded | 48mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
744316470FIXED IND 4.7UH 4.6A 24.5MOHM SM Würth Elektronik |
6,054 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 4.6 A | 4.7A | Shielded | 24.5mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
