固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744316220FIXED IND 2.2UH 7.5A 11.3MOHM SM Würth Elektronik |
4,895 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.5 A | 7.5A | Shielded | 11.3mOhm | - | 108MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|

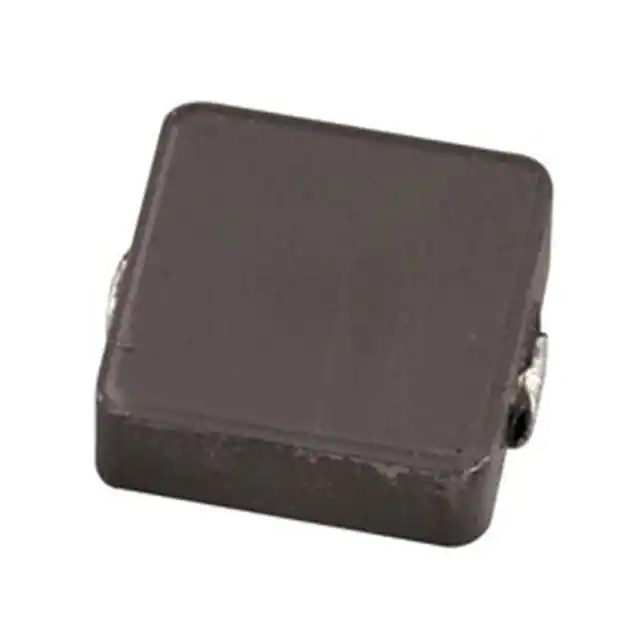

74437336100FIXED IND 10UH 2.4A 0.128OHM SMD Würth Elektronik |
1,786 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 2.4 A | 5.35A | Shielded | 128mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
744316033FIXED IND 330NH 18.5A 1.75 MOHM Würth Elektronik |
1,582 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 18.5 A | 20A | Shielded | 1.75mOhm | - | 402MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316047FIXED IND 470NH 15A 2.75MOHM SMD Würth Elektronik |
1,494 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 15 A | 16A | Shielded | 2.75mOhm | - | 280MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316100FIXED IND 1UH 11.5A 4.75MOHM SMD Würth Elektronik |
920 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 11.5 A | 11.5A | Shielded | 4.75mOhm | - | 158MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
74439344033FIXED IND 3.3UH 6A 19.2MOHM SMD Würth Elektronik |
1,539 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6 A | 14.5A | Shielded | 19.2mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
74439344022FIXED IND 2.2UH 8A 10.5MOHM SMD Würth Elektronik |
919 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 8 A | 16A | Shielded | 10.5mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
74439344010FIXED IND 1UH 12A 5.5 MOHM SMD Würth Elektronik |
664 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 12 A | 27.5A | Shielded | 5.5mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|

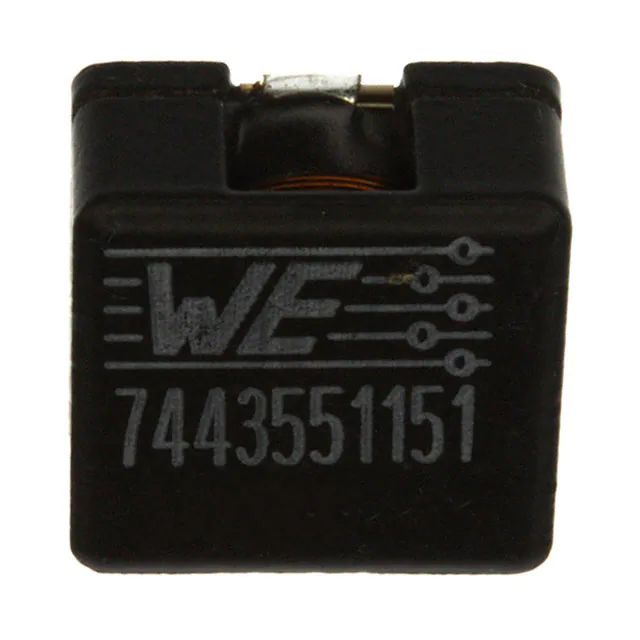

7443551151FIXED IND 15.4UH 9A 14.8MOHM SMD Würth Elektronik |
13,861 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15.4 µH | ±20% | 9 A | 8A | Shielded | 14.8mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

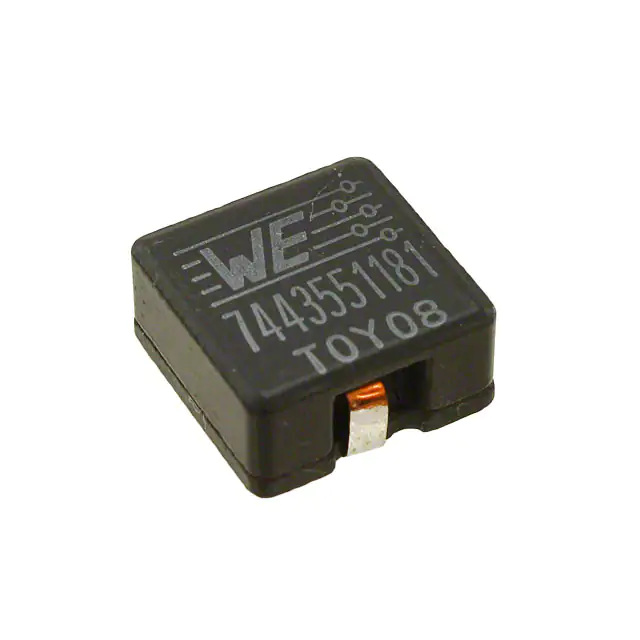

7443551181FIXED IND 18UH 7.5A 22 MOHM SMD Würth Elektronik |
3,763 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 7.5 A | 7.5A | Shielded | 22mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
