固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

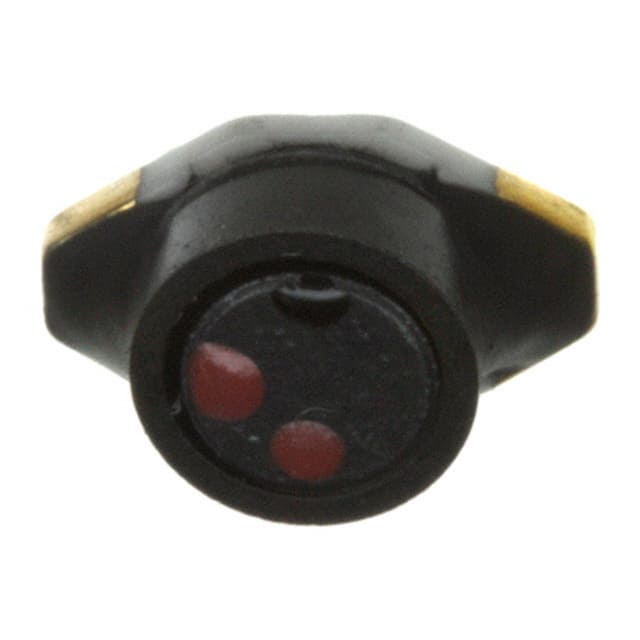

74451122FIXED IND 22UH 700MA 0.11OHM SMD Würth Elektronik |
7,207 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±20% | 700 mA | 160mA | Shielded | 110mOhm Max | - | 20.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
744771008FIXED IND 8.2UH 6.25A 20MOHM SMD Würth Elektronik |
6,460 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 6.25 A | 6.25A | Shielded | 20mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714330FIXED IND 33UH 2.5A 79 MOHM SMD Würth Elektronik |
4,136 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 2.9A | Shielded | 79mOhm Max | - | 11.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
744771270FIXED IND 270UH 890MA 460MOHM SM Würth Elektronik |
4,048 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 890 mA | 1A | Shielded | 460mOhm Max | - | 3.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
7447714220FIXED IND 22UH 3A 50 MOHM SMD Würth Elektronik |
2,851 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | 3.6A | Shielded | 50mOhm Max | - | 14.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
74477124FIXED IND 470UH 640MA 770MOHM SM Würth Elektronik |
2,661 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 640 mA | 800mA | Shielded | 770mOhm Max | - | 2.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
7447714470FIXED IND 47UH 2.2A 99 MOHM SMD Würth Elektronik |
2,304 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.2 A | 2.5A | Shielded | 99mOhm Max | - | 8.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
7447714331FIXED IND 330UH 710MA 750MOHM SM Würth Elektronik |
1,805 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 710 mA | 1A | Shielded | 750mOhm Max | - | 3.15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
7447714680FIXED IND 68UH 1.9A 132 MOHM SMD Würth Elektronik |
1,592 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.9 A | 2.2A | Shielded | 132mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
744771168FIXED IND 68UH 1.91A 120MOHM SMD Würth Elektronik |
1,398 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.91 A | 2.19A | Shielded | 120mOhm Max | - | 7.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
