固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

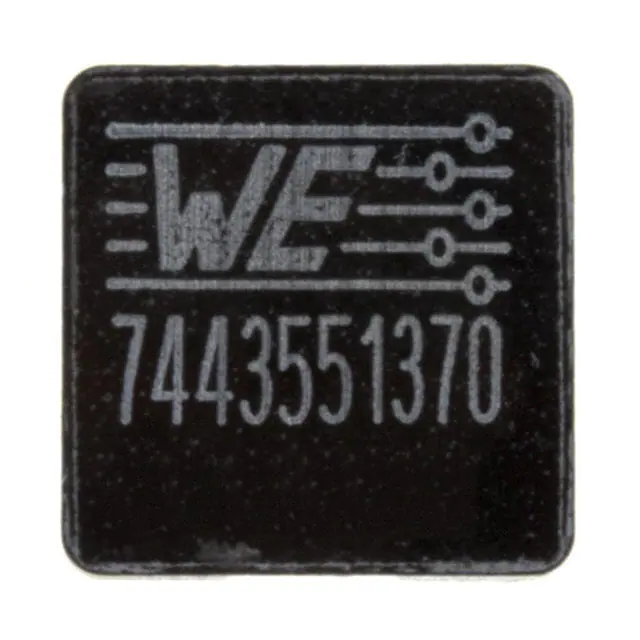

7443551370FIXED IND 3.7UH 17A 4.9 MOHM SMD Würth Elektronik |
3,036 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.7 µH | ±20% | 17 A | 16A | Shielded | 4.9mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

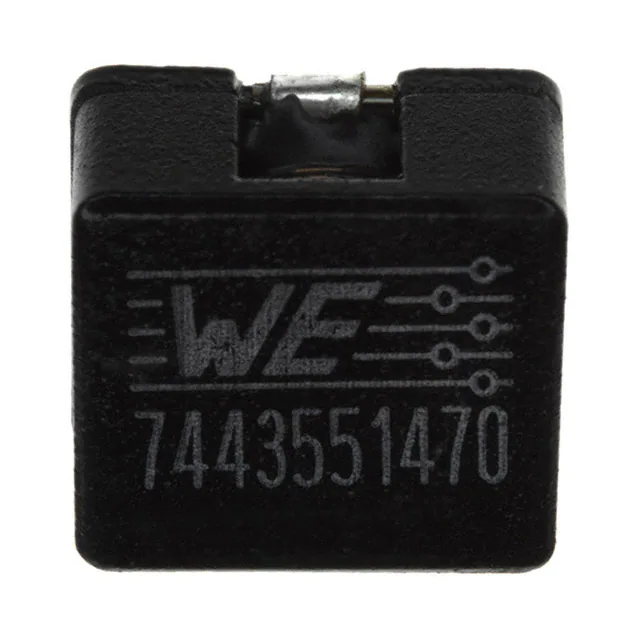

7443551470FIXED IND 4.7UH 13A 7 MOHM SMD Würth Elektronik |
2,907 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 13 A | 15A | Shielded | 7mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

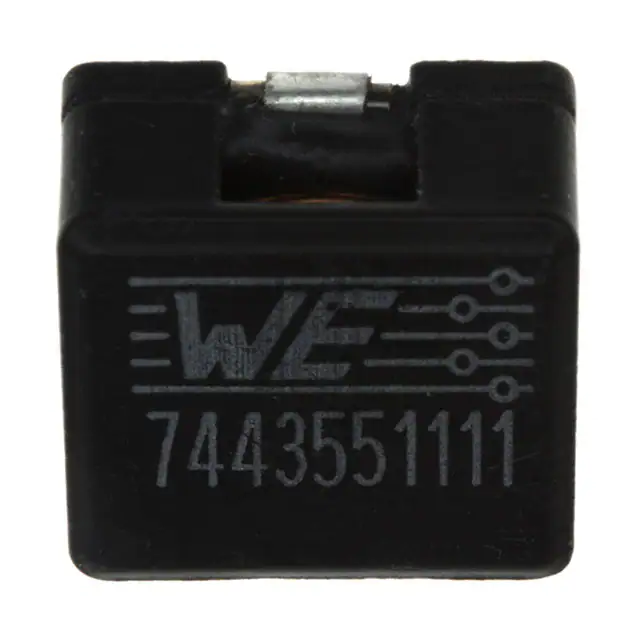

7443551111FIXED IND 11.3UH 11A 9.1MOHM SMD Würth Elektronik |
1,989 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11.3 µH | ±20% | 11 A | 9.5A | Shielded | 9.1mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

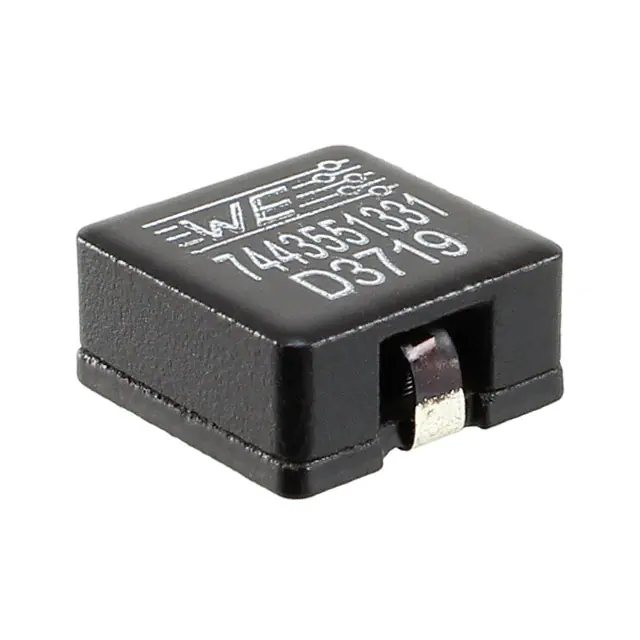

7443551331FIXED IND 33UH 5.5A 30.5MOHM SMD Würth Elektronik |
1,122 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 5.5 A | 5.5A | Shielded | 30.5mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|
7447798720FIXED IND 7.2UH 7.9A 12.8MOHM SM Würth Elektronik |
7,337 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 7.2 µH | ±30% | 7.9 A | 6A | Shielded | 12.8mOhm Max | - | 31MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798111FIXED IND 11UH 6.9A 15.8MOHM SMD Würth Elektronik |
2,923 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 11 µH | ±20% | 6.9 A | 5.3A | Shielded | 15.8mOhm Max | - | 25MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|

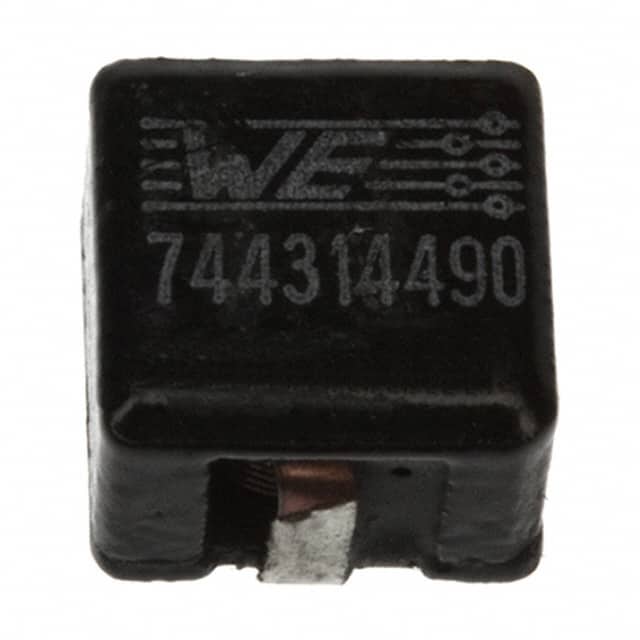

744314490FIXED IND 4.9UH 6.5A 14.5MOHM SM Würth Elektronik |
11,373 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.9 µH | ±20% | 6.5 A | 6.5A | Shielded | 14.5mOhm | - | 56MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
744311220FIXED IND 2.2UH 9A 11.4 MOHM SMD Würth Elektronik |
8,654 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9 A | 13A | Shielded | 11.4mOhm | - | 52MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
|
744311470FIXED IND 4.7UH 6A 19.5 MOHM SMD Würth Elektronik |
7,634 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 6 A | 7A | Shielded | 19.5mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|

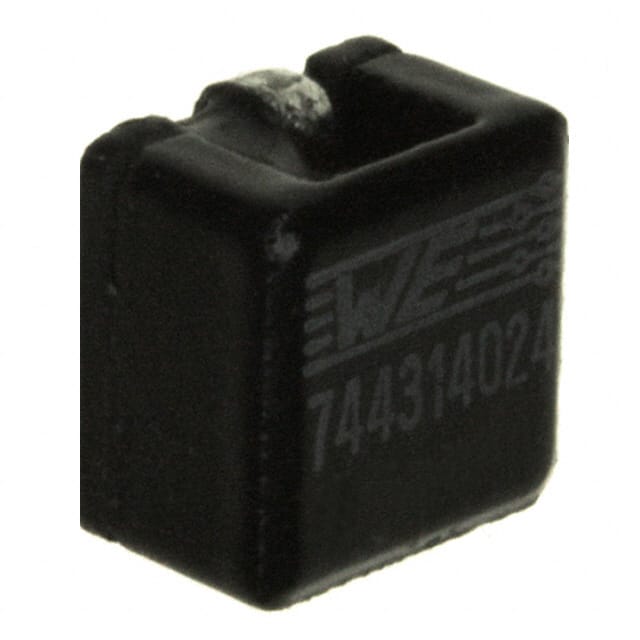

744314024FIXED IND 240NH 20A 1 MOHM SMD Würth Elektronik |
3,850 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 240 nH | ±20% | 20 A | 28A | Shielded | 1mOhm | - | 320MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
