固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

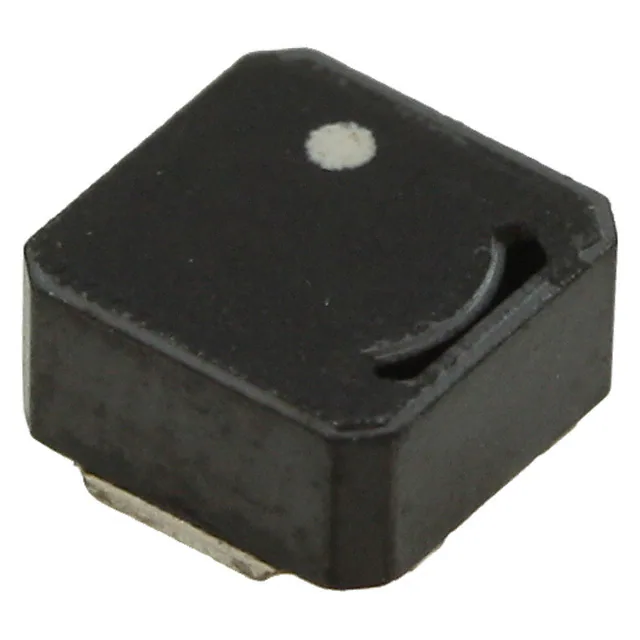

VLCF5028T-100M1R0-2FIXED IND 10UH 1.05A 83 MOHM SMD TDK Corporation |
10,187 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.05 A | 1.05A | Shielded | 83mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
TFM252012ALVA1R0MTAAFIXED IND 1UH 3.7A 42 MOHM SMD TDK Corporation |
7,668 |
|
规格书 |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.7 A | 4.2A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLCF4018T-100MR74-2FIXED IND 10UH 740MA 188MOHM SMD TDK Corporation |
3,029 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 740 mA | 740mA | Shielded | 188mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
VLS5030EX-220M-DINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
1,068 |
|
规格书 |
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.6 A | 1.5A | Shielded | 216mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

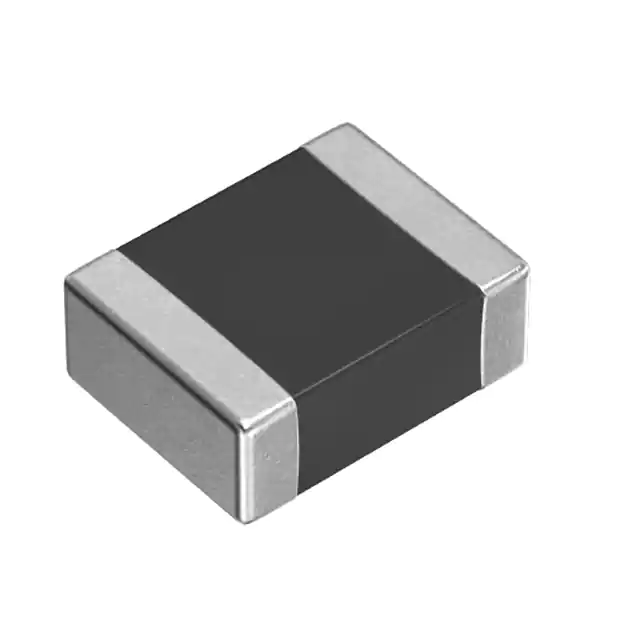

TFM322512ALMA1R5MTAAFIXED IND 1.5UH 3.2A 57MOHM SMD TDK Corporation |
6,286 |
|
规格书 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.2 A | 4A | Shielded | 57mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

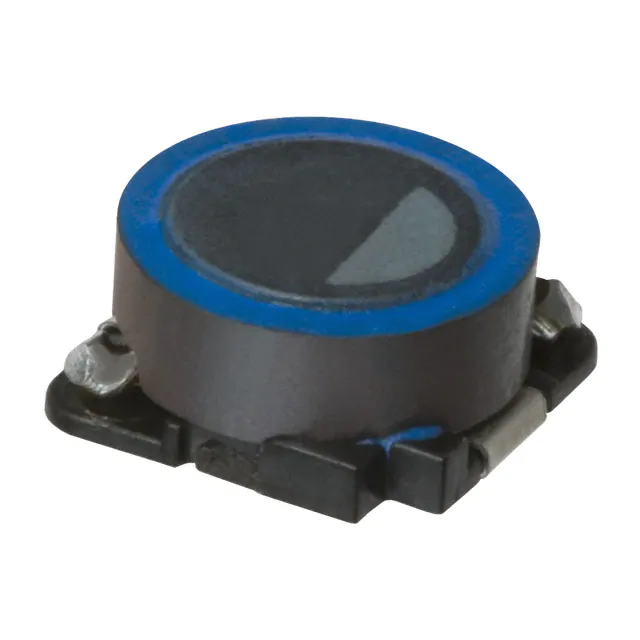

SLF7032T-220MR96-2PFFIXED IND 22UH 960MA 132MOHM SMD TDK Corporation |
4,897 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 960 mA | - | Shielded | 132mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|

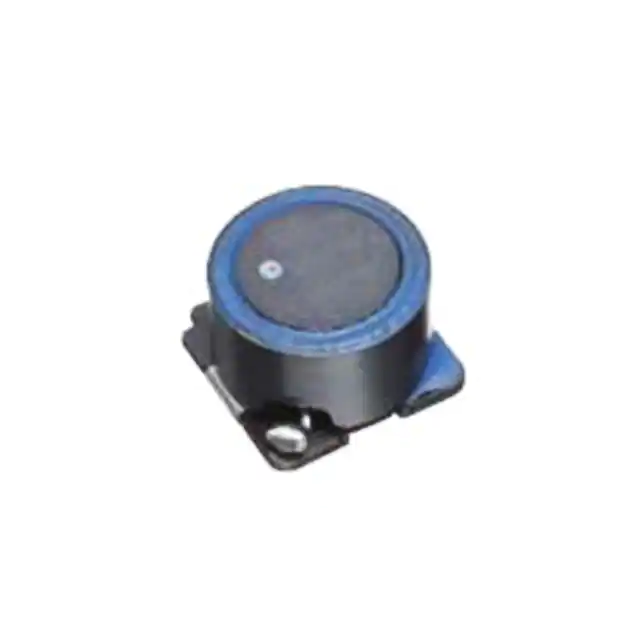

SLF10165T-100M3R83PFFIXED IND 10UH 3.8A 22.2MOHM SMD TDK Corporation |
25,025 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | 4.1A | Shielded | 22.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
SLF10145T-221MR65-PFFIXED IND 220UH 700MA 564MOHM SM TDK Corporation |
14,730 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 650mA | Shielded | 564mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
VLCF5020T-100M1R1-1FIXED IND 10UH 1.13A 237MOHM SMD TDK Corporation |
4,537 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.13 A | 1.13A | Shielded | 237mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
VLCF4028T-220MR72-2FIXED IND 22UH 720MA 240MOHM SMD TDK Corporation |
2,737 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 720 mA | 720mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
