上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

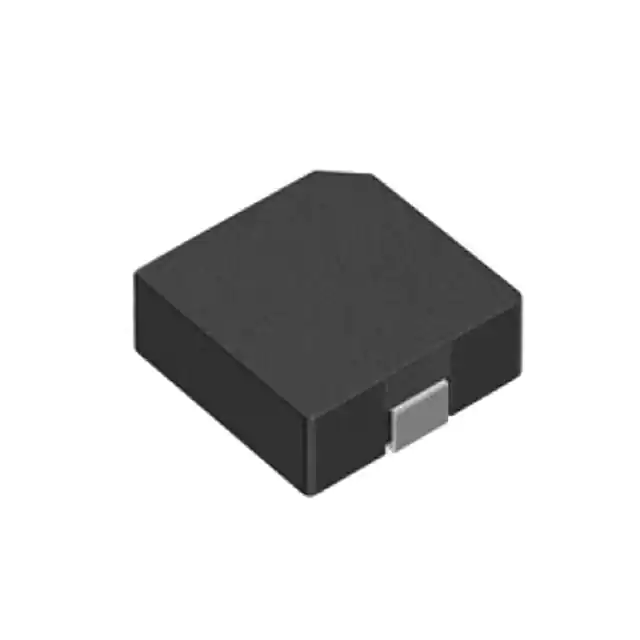

SPM10040XT-R18MFIXED IND 180NH 38A 0.55MOHM SMD TDK Corporation |
31,155 |
|
规格书 |
SPM-XT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 180 nH | ±20% | 38 A | 46A | Shielded | 0.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
SLF6028T-6R8M1R5-PFFIXED IND 6.8UH 2.2A 42.5MOHM SM TDK Corporation |
5,652 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.2 A | 1.5A | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CLF7045NIT-3R3N-DFIXED IND 3.3UH 4.7A 21MOHM SMD TDK Corporation |
3,884 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.7 A | 4.7A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
TMS322512ALM-R10MTAAFIXED IND 100NH 8A 0.008OHM SMD TDK Corporation |
1,791 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 100 nH | ±20% | 8 A | 14A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SLF10145T-220M1R9-PFFIXED IND 22UH 1.9A 70.9MOHM SMD TDK Corporation |
1,637 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.1A | Shielded | 70.9mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF6025T-100M1R0-PFFIXED IND 10UH 1.3A 68.76MOHM SM TDK Corporation |
4,377 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 1A | Shielded | 68.76mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
|
TMS322512ALM-1R5MTAAFIXED IND 1.5UH 3.2A 0.057OHM SM TDK Corporation |
3,544 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.2 A | 4A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-100MTAAFIXED IND 10UH 1.2A 0.36OHM SMD TDK Corporation |
2,922 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-4R7MTAAFIXED IND 4.7UH 1.9A 0.151OHM SM TDK Corporation |
2,408 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.9 A | 2.2A | Shielded | 151mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-1R0MTAAFIXED IND 1UH 4A 0.037OHM SMD TDK Corporation |
1,574 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 4 A | 4.6A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
