固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

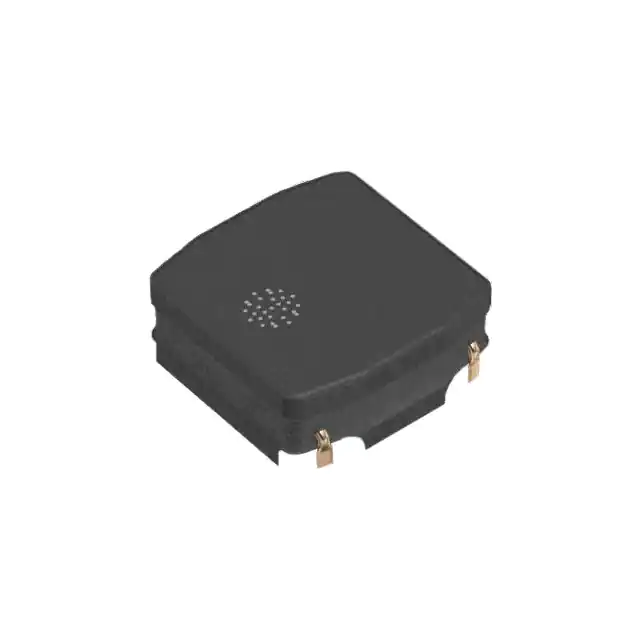

VLS3012HBX-100M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
13,971 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.33 A | 1.5A | Shielded | 415mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

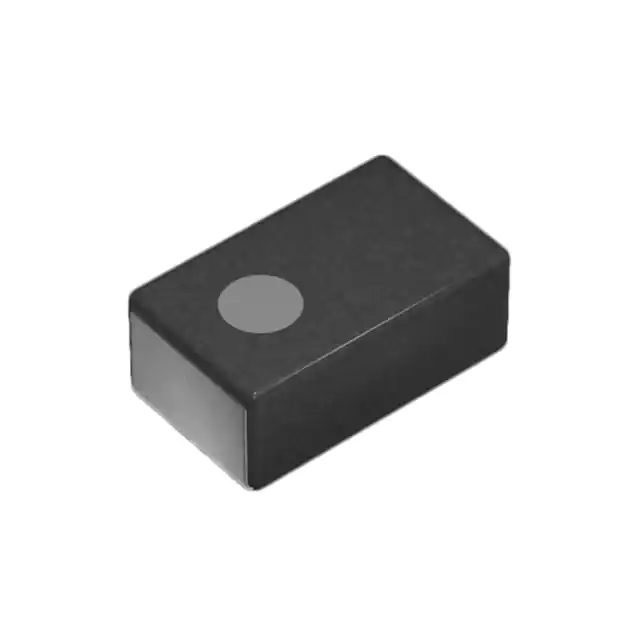

TFM201208BLE-1R0MTCFFIXED IND 1UH 3.7A 60 MOHM SMD TDK Corporation |
5,455 |
|
规格书 |
TFM-BLE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 2.7 A | 3.4A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
TFM201208BLE-R24MTCFINDUCTORS FOR POWER CIRCUITS, TH TDK Corporation |
4,097 |
|
规格书 |
TFM-BLE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 240 nH | ±20% | 5 A | 6.5A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
VLS3012HBX-4R7M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
3,814 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.01 A | 1.9A | Shielded | 201mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012HBX-2R2M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
3,144 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.84 A | 3.1A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012HBX-3R3M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,981 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.37 A | 2.5A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012HBX-6R8M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,560 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.66 A | 1.7A | Shielded | 285mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

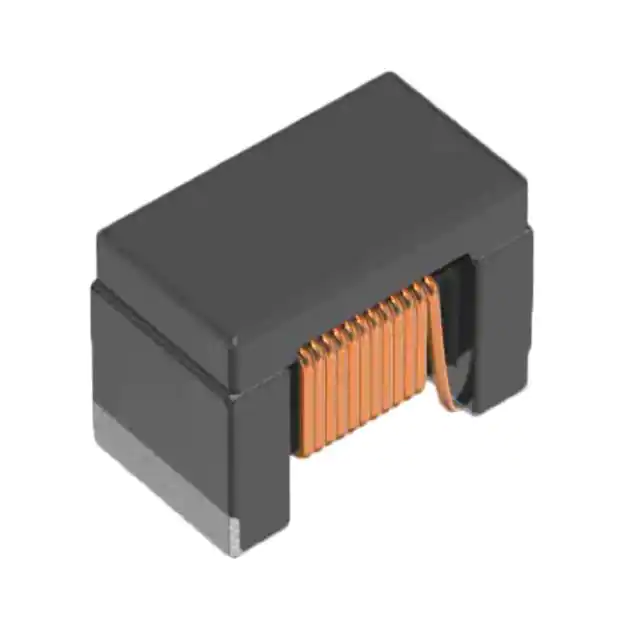

ADL2012-2R2M-T01INDUCTORS FOR DECOUPLING CIRCUIT TDK Corporation |
1,554 |
|
规格书 |
ADL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 550 mA | 900mA | Unshielded | 500mOhm Max | - | 360MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.087" L x 0.049" W (2.20mm x 1.25mm) | 0.069" (1.75mm) |
|
|
VLS3012HBX-220M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,006 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.01 A | 940mA | Shielded | 761mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SLF7032T-221MR29-2PFFIXED IND 220UH 290MA 1.26OHM SM TDK Corporation |
37,552 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 290 mA | - | Shielded | 1.26Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
