固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

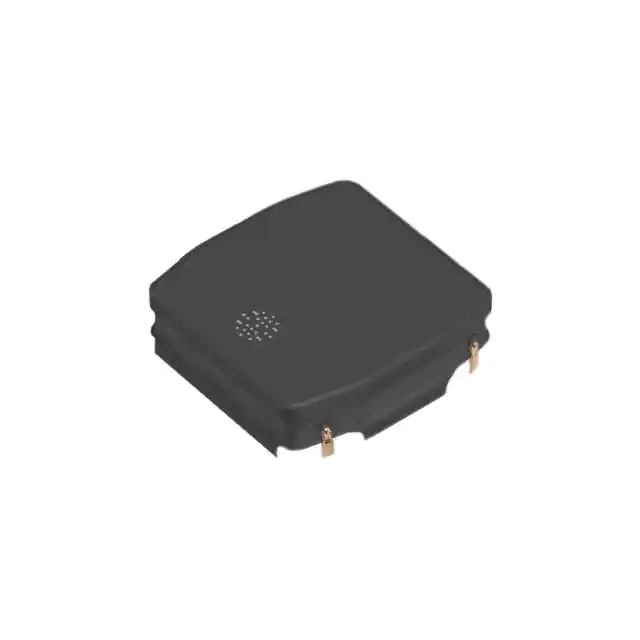

VLS4012HBX-3R3M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
2,114 |
|
规格书 |
VLS-HBX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3 A | 3.2A | Shielded | 119mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012HBX-220M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,603 |
|
规格书 |
VLS-HBX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.15 A | 1.26A | Shielded | 684mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SLF7032T-6R8M1R6-2PFFIXED IND 6.8UH 1.6A 49.2MOHM SM TDK Corporation |
15,533 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.6 A | - | Shielded | 49.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
TFM252012ALVA1R5MTAAFIXED IND 1.5UH 3.1A 60MOHM SMD TDK Corporation |
9,769 |
|
规格书 |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.1 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
TFM252012ALMAR10MTAAFIXED IND 100NH 8A 9 MOHM SMD TDK Corporation |
6,017 |
|
规格书 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 100 nH | ±20% | 8 A | 10A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CLF5030NIT-3R3N-DFIXED IND 3.3UH 2.6A 52MOHM SMD TDK Corporation |
3,540 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.6 A | 2.7A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

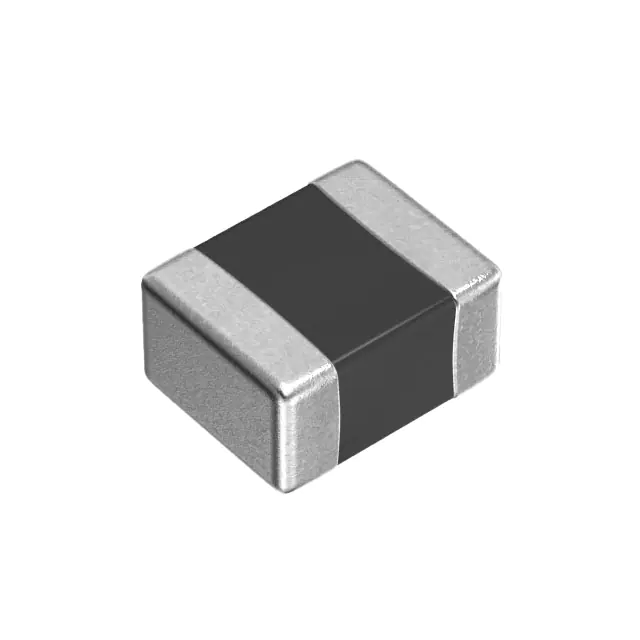

TFM201610ALMAR15MTAAINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
3,253 |
|
规格书 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 150 nH | ±20% | 5.5 A | 7.7A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
TFM252012ALMAR33MTAAFIXED IND 330NH 5.7A 18 MOHM SMD TDK Corporation |
2,880 |
|
规格书 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 5.7 A | 7A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
TFM201610ALMAR24MTAAFIXED IND 240NH 5A 23 MOHM SMD TDK Corporation |
1,642 |
|
规格书 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 240 nH | ±20% | 5 A | 5.9A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
TFM201610ALVA2R2MTAAINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
6,542 |
|
规格书 |
TFM-ALVA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.1 A | 2A | Shielded | 152mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
