固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLF1005DR22KTFIXED IND 220NH 25MA 1.1 OHM SMD TDK Corporation |
0 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 220 nH | ±10% | 25 mA | - | Shielded | 1.1Ohm Max | 10 @ 25MHz | 290MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005AR47KTFIXED IND 470NH 10MA 650MOHM SMD TDK Corporation |
0 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±10% | 10 mA | - | Shielded | 650mOhm Max | 25 @ 10MHz | 190MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005A1R0KTFIXED IND 1UH 10MA 1 OHM SMD TDK Corporation |
0 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±10% | 10 mA | - | Shielded | 1Ohm Max | 25 @ 10MHz | 120MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005A1R2KTFIXED IND 1.2UH 10MA 1.1 OHM SMD TDK Corporation |
0 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.2 µH | ±10% | 10 mA | - | Shielded | 1.1Ohm Max | 25 @ 10MHz | 110MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005A2R2KTFIXED IND 2.2UH 10MA 1.8 OHM SMD TDK Corporation |
0 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±10% | 10 mA | - | Shielded | 1.8Ohm Max | 25 @ 10MHz | 80MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

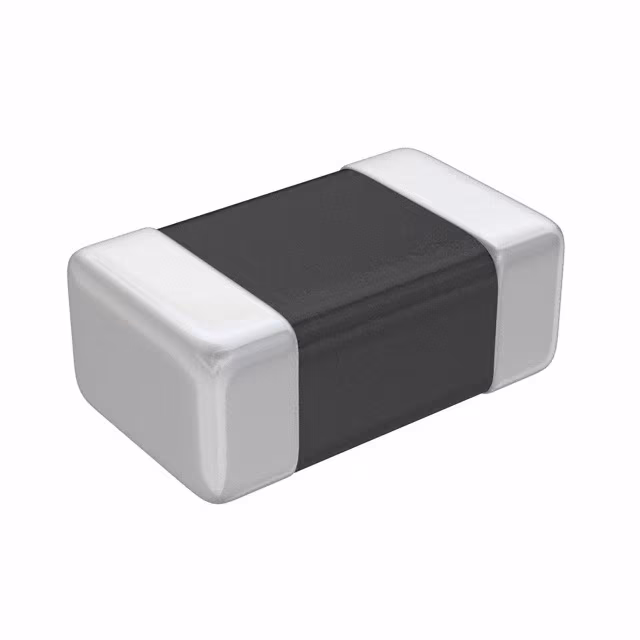

CPL2510T1R0MFIXED IND 1UH 1.2A 117 MOHM SMD TDK Corporation |
0 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.2 A | 1.2A | Shielded | 117mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2510T2R2MFIXED IND 2.2UH 800MA 175.5 MOHM TDK Corporation |
0 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 800 mA | 800mA | Shielded | 175.5mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2510T3R3MFIXED IND 3.3UH 700MA 351MOHM SM TDK Corporation |
0 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 700 mA | 700mA | Shielded | 351mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2510T4R7MFIXED IND 4.7UH 650MA 494MOHM SM TDK Corporation |
0 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 650 mA | 650mA | Shielded | 494mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.039" (1.00mm) |
|
|
CPL2512T100MFIXED IND 10UH 300MA 1.17OHM SMD TDK Corporation |
0 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 300 mA | 300mA | Shielded | 1.17Ohm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
