固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS4012T-100MR82FIXED IND 10UH 820MA 240MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 820 mA | 890mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-150MR65FIXED IND 15UH 650MA 372MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 650 mA | 700mA | Shielded | 372mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-1R0N1R6FIXED IND 1UH 1.6A 60 MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.6 A | 2.5A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-220MR57FIXED IND 22UH 570MA 492MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 570 mA | 630mA | Shielded | 492mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-2R2M1R4FIXED IND 2.2UH 1.4A 84 MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 1.4 A | 1.7A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-330MR44FIXED IND 33UH 440MA 816MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 440 mA | 470mA | Shielded | 816mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-3R3M1R2FIXED IND 3.3UH 1.2A 102MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 1.2 A | 1.4A | Shielded | 102mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-6R8M1R0FIXED IND 6.8UH 1A 156 MOHM SMD TDK Corporation |
0 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 1 A | 1A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
TSL1315RA-152JR68-PFFIXED IND 1.5MH 680MA 1.3 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 1.5 mH | ±5% | 680 mA | 1A | Unshielded | 1.3Ohm Max | 40 @ 252kHz | 830kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|

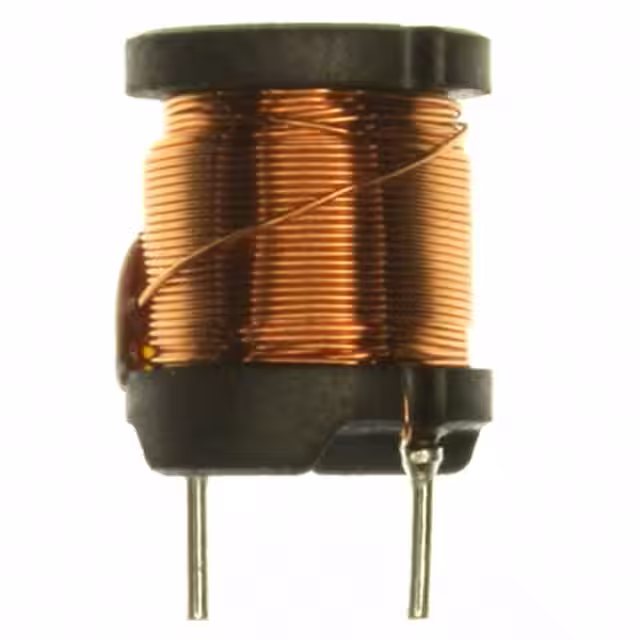

SL1215-332KR27-PFFIXED IND 3.3MH 270MA 3.3 OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 3.3 mH | ±10% | 270 mA | 600mA | Unshielded | 3.3Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
