固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

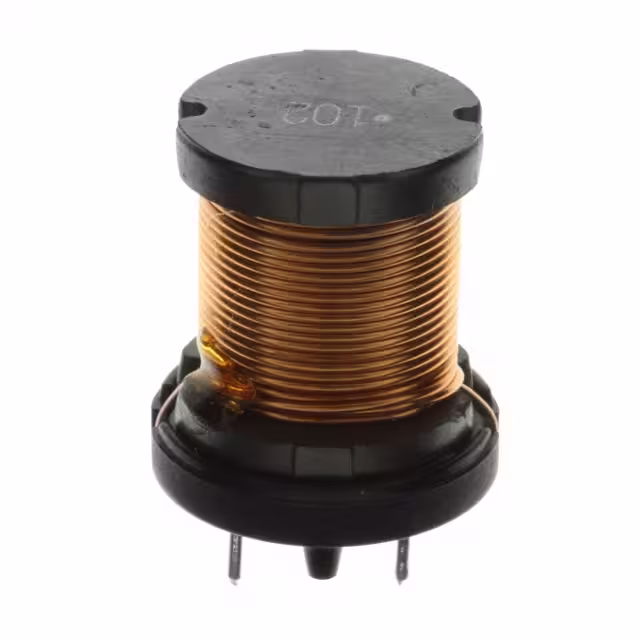

SL2125-102K1R3-PFFIXED IND 1MH 1.3A 350 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1 mH | ±10% | 1.3 A | 1.7A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|

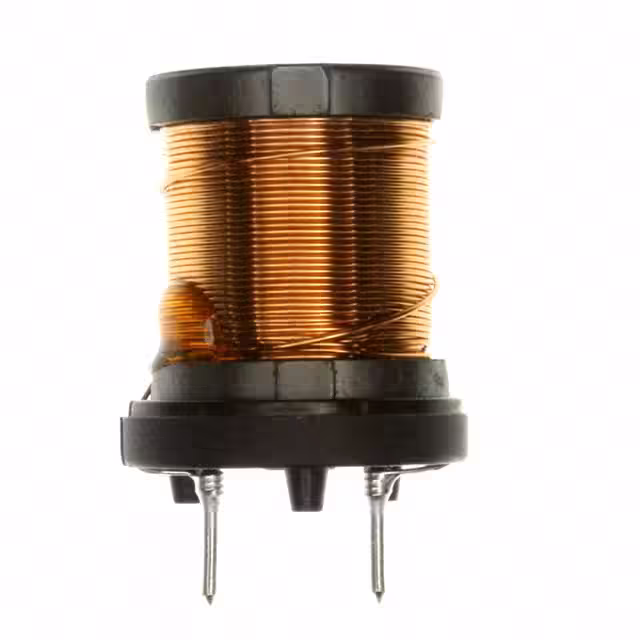

SL2125-103KR41-PFFIXED IND 10MH 410MA 3.41 OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 10 mH | ±10% | 410 mA | 550mA | Unshielded | 3.41Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|

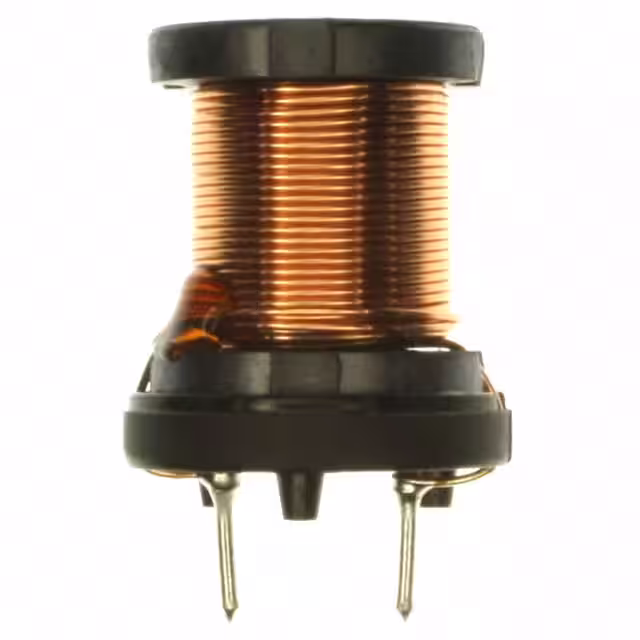

SL2125-152KR99-PFFIXED IND 1.5MH 990MA 610MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1.5 mH | ±10% | 990 mA | 1.3A | Unshielded | 610mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|

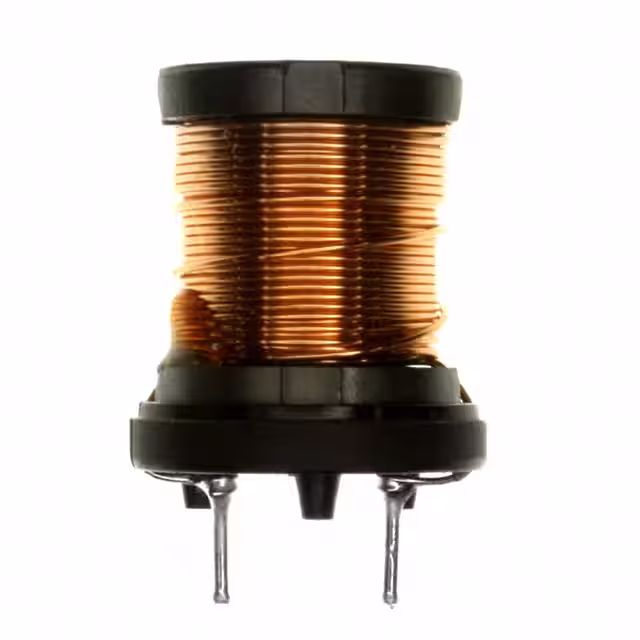

SL2125-222KR87-PFFIXED IND 2.2MH 870MA 780MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 870 mA | 1.1A | Unshielded | 780mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|

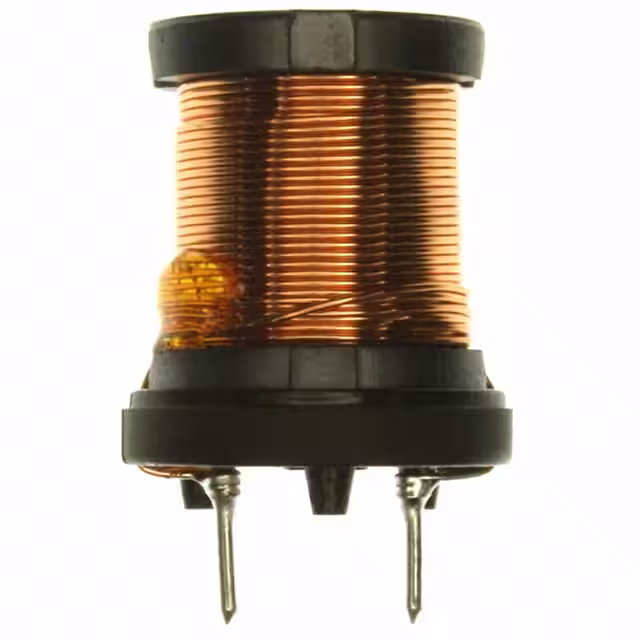

SL2125-332KR72-PFFIXED IND 3.3MH 720MA 1.15OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 3.3 mH | ±10% | 720 mA | 950mA | Unshielded | 1.15Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|

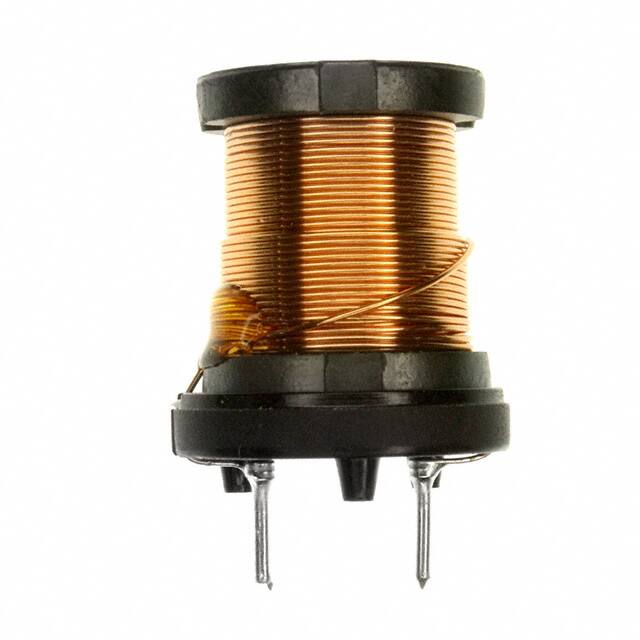

SL2125-472KR59-PFFIXED IND 4.7MH 590MA 1.71OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 4.7 mH | ±10% | 590 mA | 780mA | Unshielded | 1.71Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|

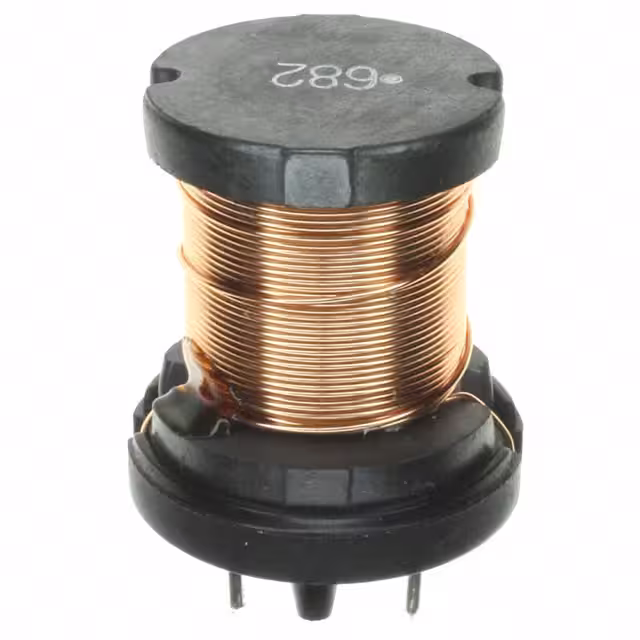

SL2125-682KR47-PFFIXED IND 6.8MH 470MA 2.61OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 6.8 mH | ±10% | 470 mA | 660mA | Unshielded | 2.61Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.819" Dia (20.80mm) | 1.024" (26.00mm) |
|
VLS3012T-3R3M1R3FIXED IND 3.3UH 1.3A 120MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 1.3 A | 1.3A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012T-6R8MR90FIXED IND 6.8UH 900MA 228MOHM SM TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 900 mA | 900mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS3015T-150MR58FIXED IND 15UH 580MA 422MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 580 mA | 580mA | Shielded | 422mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
