固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

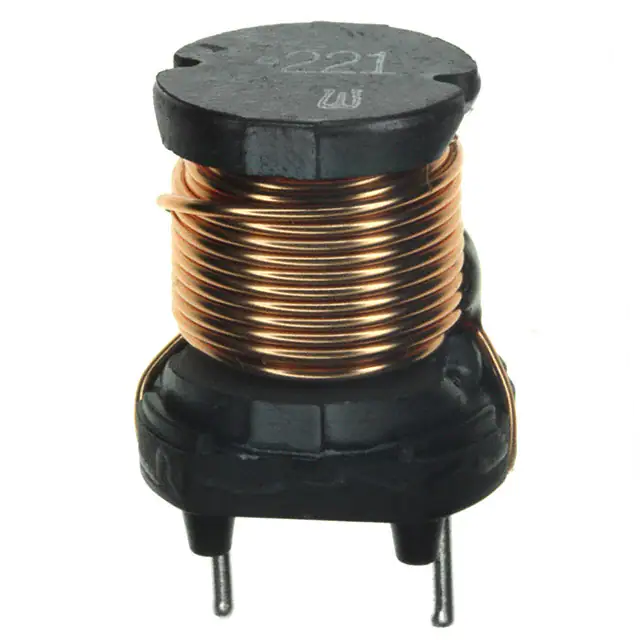

SL1720-221K1R8-PFFIXED IND 220UH 1.8A 130 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 220 µH | ±10% | 1.8 A | 2.6A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|

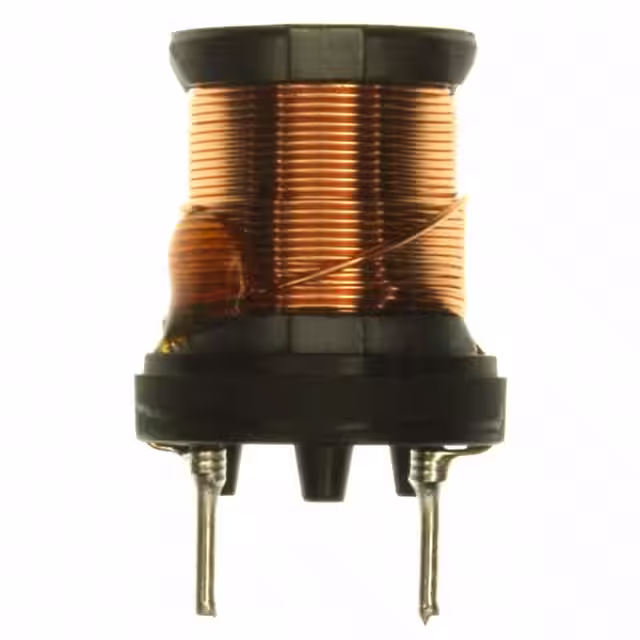

SL1720-222KR60-PFFIXED IND 2.2MH 600MA 1.22OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 600 mA | 810mA | Unshielded | 1.22Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|

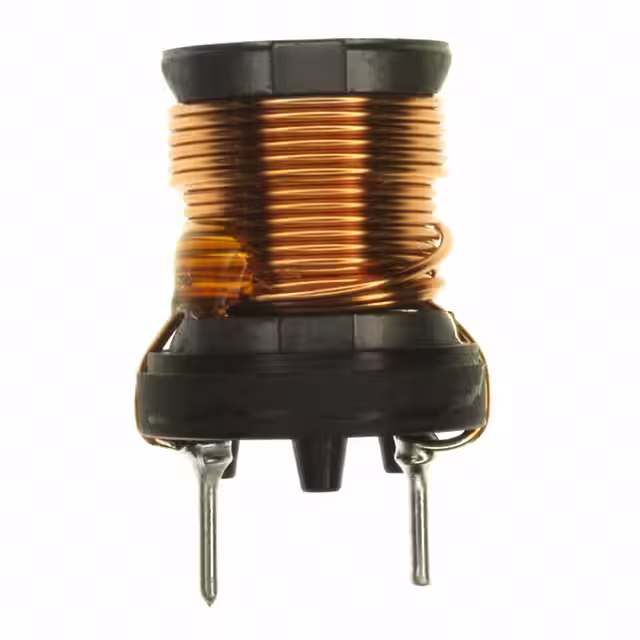

SL1720-331K1R5-PFFIXED IND 330UH 1.5A 180 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 330 µH | ±10% | 1.5 A | 2A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|

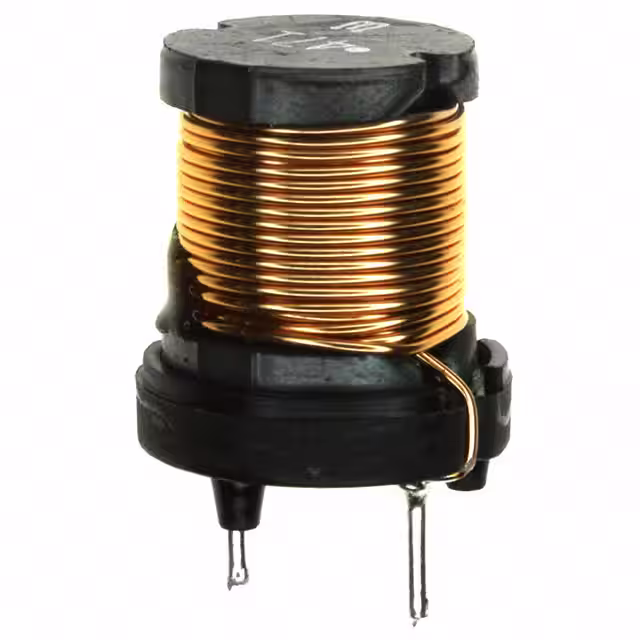

SL1720-471K1R3-PFFIXED IND 470UH 1.3A 270 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 470 µH | ±10% | 1.3 A | 1.7A | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|

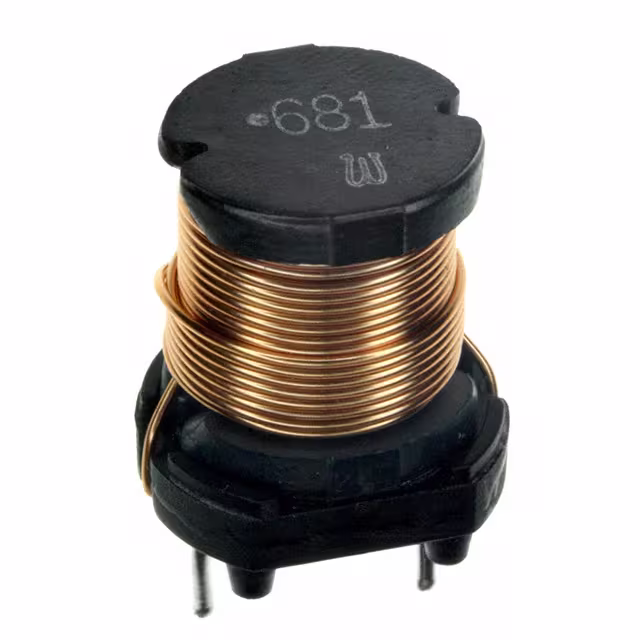

SL1720-681K1R0-PFFIXED IND 680UH 1A 380 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 680 µH | ±10% | 1 A | 1.4A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|

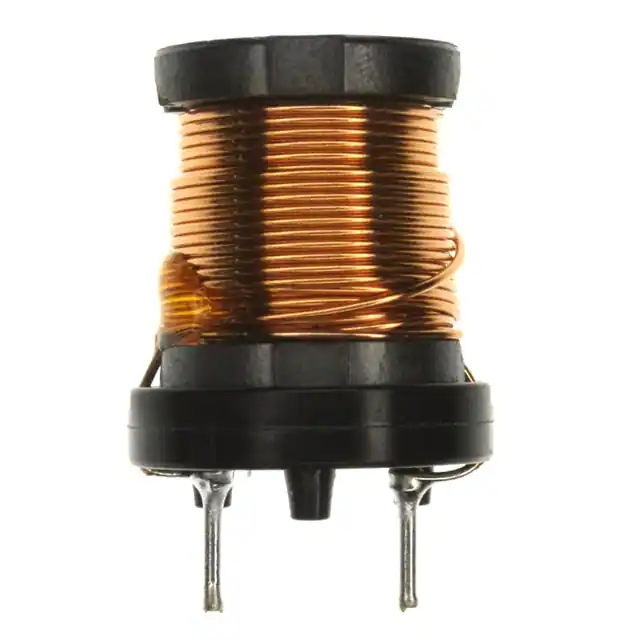

SL1923-102K1R1-PFFIXED IND 1MH 1.1A 410 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1 mH | ±10% | 1.1 A | 1.4A | Unshielded | 410mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.740" Dia (18.80mm) | 0.945" (24.00mm) |
|

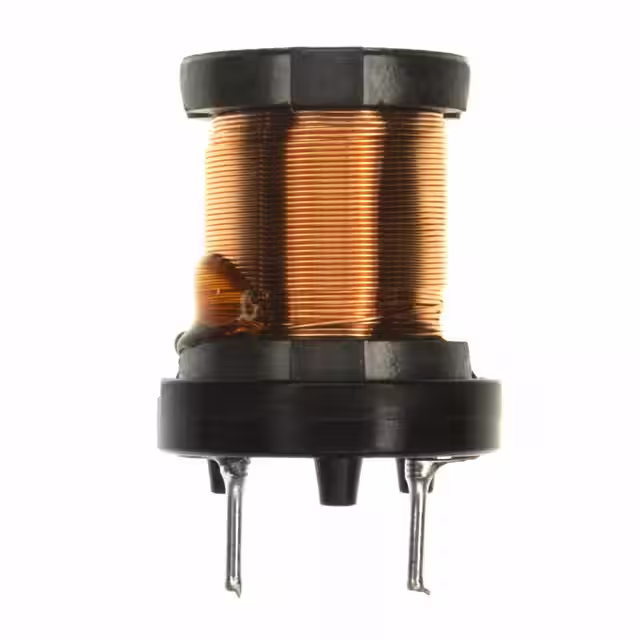

SL1923-153KR26-PFFIXED IND 15MH 260MA 7.1 OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 15 mH | ±10% | 260 mA | 380mA | Unshielded | 7.1Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.740" Dia (18.80mm) | 0.945" (24.00mm) |
|

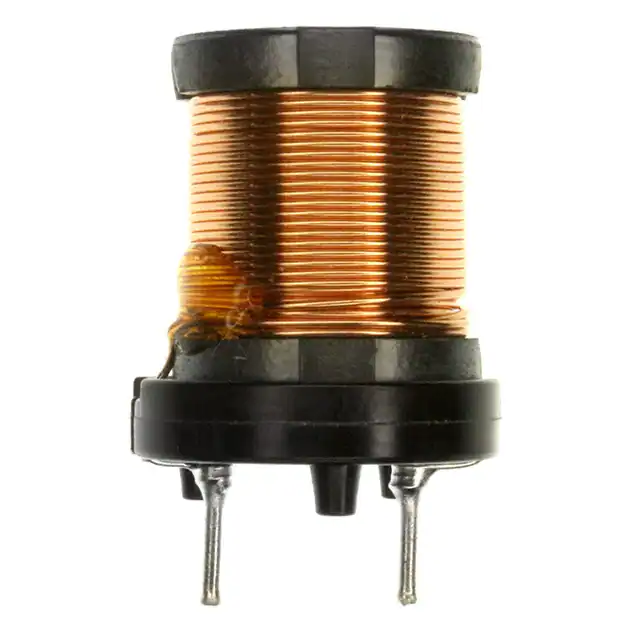

SL1923-222KR70-PFFIXED IND 2.2MH 700MA 1 OHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 700 mA | 1A | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.740" Dia (18.80mm) | 0.945" (24.00mm) |
|

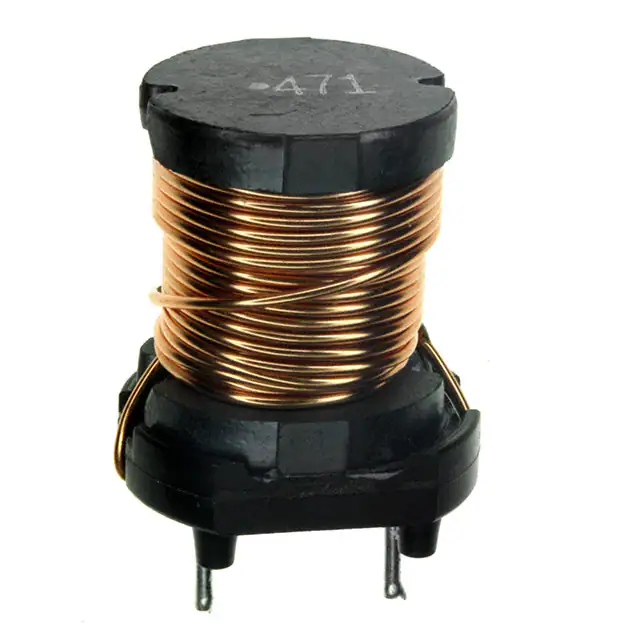

SL1923-471K1R5-PFFIXED IND 470UH 1.5A 200 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 470 µH | ±10% | 1.5 A | 2.1A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.740" Dia (18.80mm) | 0.945" (24.00mm) |
|

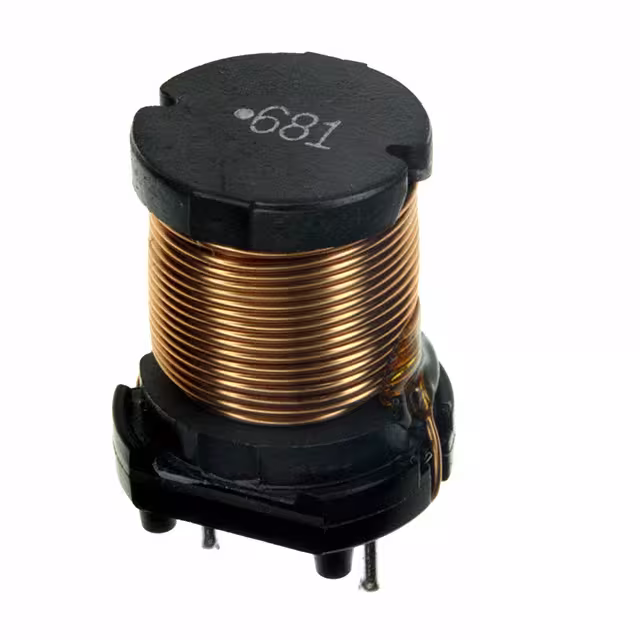

SL1923-681K1R3-PFFIXED IND 680UH 1.3A 290 MOHM TH TDK Corporation |
0 |
|
规格书 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 680 µH | ±10% | 1.3 A | 1.8A | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.740" Dia (18.80mm) | 0.945" (24.00mm) |
