固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

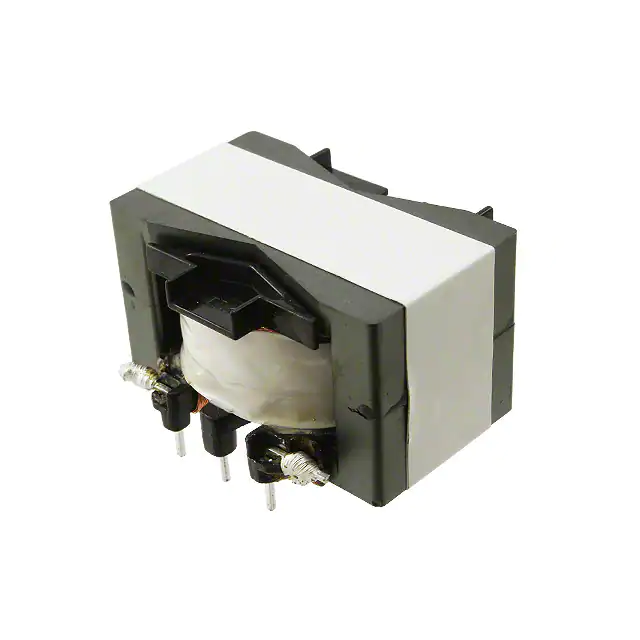

PFC4124QM-181K09D-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 8.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.693" L x 1.496" W (43.00mm x 38.00mm) | 0.984" (25.00mm) |
|
PFC2723ER-601K02B-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 5 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.142" L x 0.984" W (29.00mm x 25.00mm) | 1.024" (26.00mm) |
|

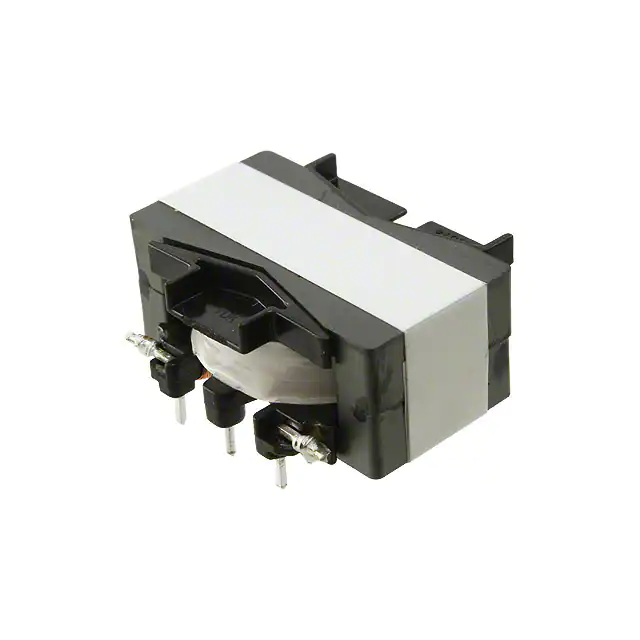

PFC3514QM-351K04B-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 350 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.610" (15.50mm) |
|
|
PFC3514QM-281K05B-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 280 µH | ±10% | 4.6 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.610" (15.50mm) |
|
|
PFC3514QM-231K06B-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.610" (15.50mm) |
|

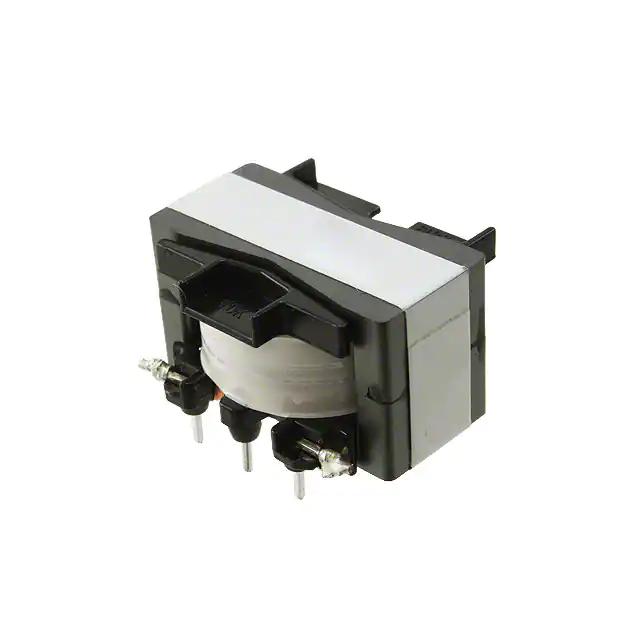

PFC3318QM-601K03E-00CHOKE COIL 600UH 2.8A TH TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.378" L x 1.102" W (35.00mm x 28.00mm) | 0.787" (20.00mm) |
|
|
PFC3318QM-601K03B-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.378" L x 1.102" W (35.00mm x 28.00mm) | 0.787" (20.00mm) |
|
|
PFC3318QM-451K04B-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.378" L x 1.102" W (35.00mm x 28.00mm) | 0.787" (20.00mm) |
|
PFC3125ER-451K03E-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 2.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.299" L x 1.024" W (33.00mm x 26.00mm) | 1.063" (27.00mm) |
|

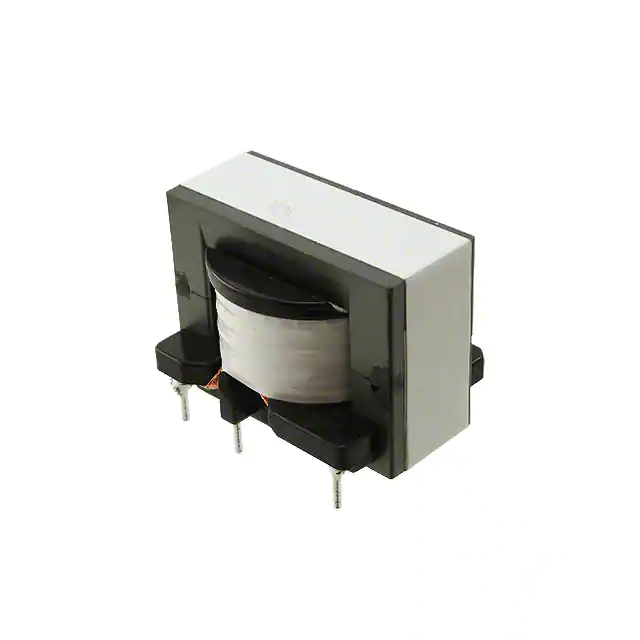

PFC3525ER-301K04E-00CHOKE COMMON MODE TDK Corporation |
0 |
|
规格书 |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 4.1 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.083" W (37.00mm x 27.50mm) | 1.063" (27.00mm) |
