固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLF12560T-100M7R5FIXED IND 10UH 7.8A 14.88MOHM SM TDK Corporation |
0 |
|
规格书 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 7.8 A | 7.5A | Shielded | 14.88mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.236" (6.00mm) |
|

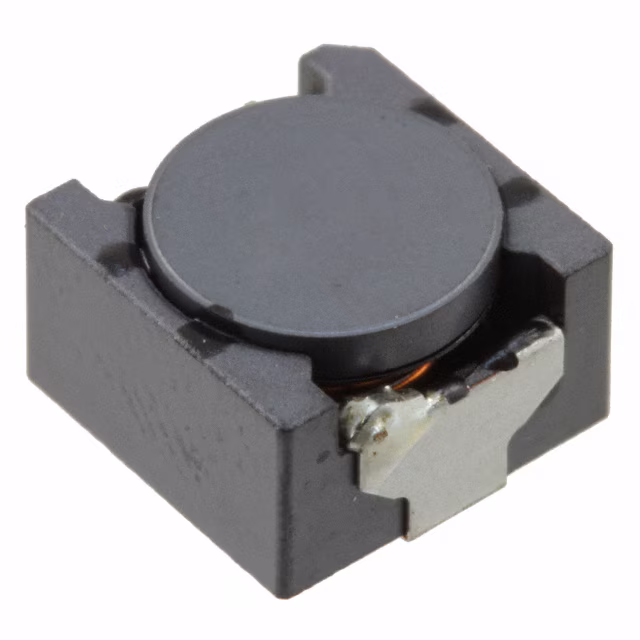

RLF7045T-680MR85-DFIXED IND 68UH 850MA 340.8 MOHM TDK Corporation |
0 |
|
规格书 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 850 mA | 850mA | Shielded | 340.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
|
RLF7045T-100M1R9-DFIXED IND 10UH 1.9A 60 MOHM SMD TDK Corporation |
0 |
|
规格书 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
RLF10160T-470M1R5-DFIXED IND 47UH 1.5A 111.6MOHM SM TDK Corporation |
2 |
|
规格书 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2.4A | Shielded | 111.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.252" (6.40mm) |
|
|
RLF10160T-221MR70-DFIXED IND 220UH 700MA 490.8 MOHM TDK Corporation |
0 |
|
规格书 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 1A | Shielded | 490.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.252" (6.40mm) |
|

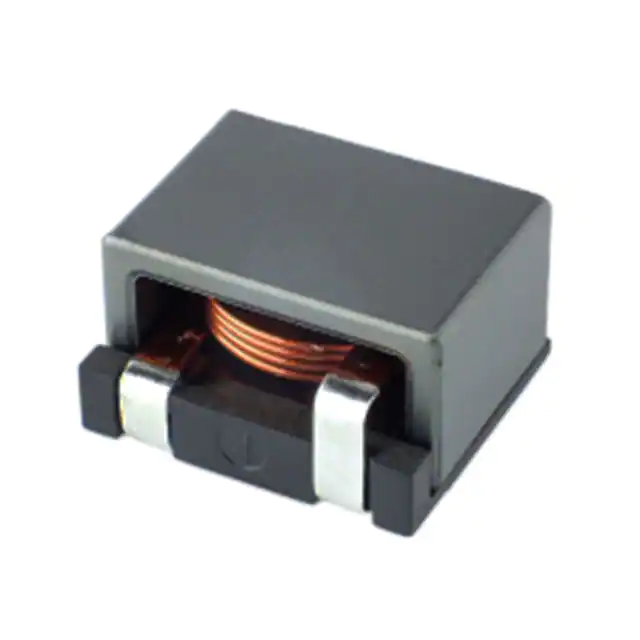

VLM13580T-R82M-D1FIXED IND 820NH 12.6A 2 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 12.6 A | 36A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|
|
VLM13580T-1R5M-D1FIXED IND 1.5UH 11.3A 2.5MOHM SM TDK Corporation |
0 |
|
规格书 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 11.3 A | 26A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|
|
VLM13580T-3R3M-D1FIXED IND 3.3UH 8.4A 4.5MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8.4 A | 18A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|
LGJ7045TC-101M-HFIXED IND 100UH 750MA 330MOHM SM TDK Corporation |
15 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Shielded | 330mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
VLM10555T-R33M180-3FIXED IND 330NH 18A 1.2 MOHM SMD TDK Corporation |
2 |
|
规格书 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 18 A | 34A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
