固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

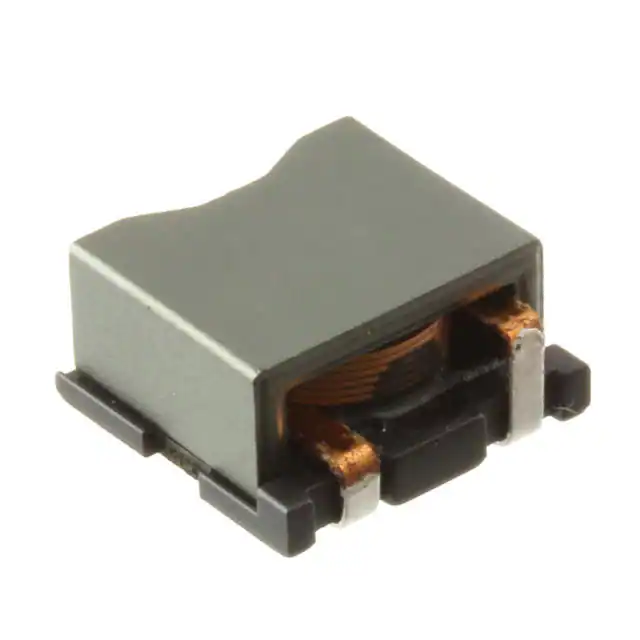

VLM10555T-R45M110-3FIXED IND 450NH 11A 2.6 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 450 nH | ±20% | 11 A | 40A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-1R2M100-3FIXED IND 1.2UH 10A 3.2 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 10 A | 18A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|

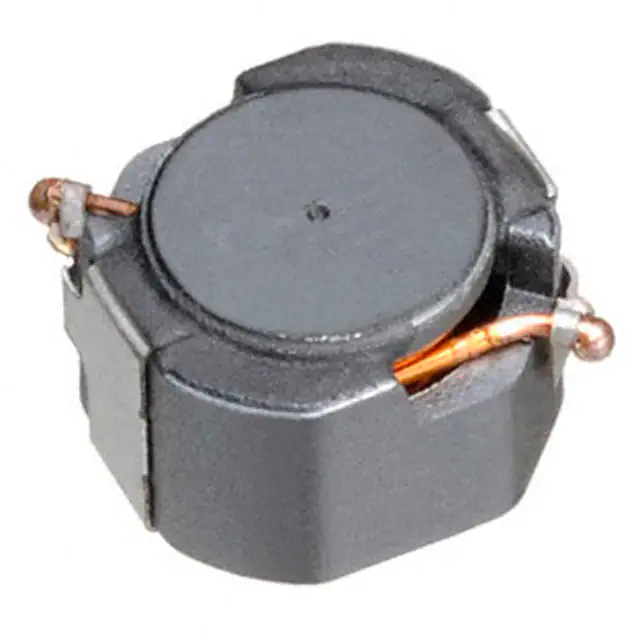

LGJ7045TC-1R0N-HFIXED IND 1UH 5.2A 9.6 MOHM SMD TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 8.9A | Shielded | 9.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-1R5N-HFIXED IND 1.5UH 4.9A 11 MOHM SMD TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.9 A | 7.3A | Shielded | 11mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-330M-HFIXED IND 33UH 1.4A 110 MOHM SMD TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.55A | Shielded | 110mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-331M-HFIXED IND 330UH 420MA 1.03OHM SM TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | 490mA | Shielded | 1.03Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
VLB12065HT-R29MFIXED IND 290NH 27A 0.44MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLB | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 290 nH | ±20% | 27 A | 48A | Unshielded | 0.44mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.457" L x 0.382" W (11.60mm x 9.70mm) | 0.256" (6.50mm) |
|
LGJ10145TS-331MR54-HFIXED IND 330UH 580MA 680MOHM SM TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 580 mA | 540mA | Shielded | 680mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
|
LGJ10145TS-150M2R2-HFIXED IND 15UH 2.2A 47.2MOHM SMD TDK Corporation |
5 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.4A | Shielded | 47.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-1R0N-DFIXED IND 1UH 5.2A 9.6 MOHM SMD TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 8.9A | Shielded | 9.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
