上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLF7030T-1R5N6R1-TFIXED IND 1.5UH 6.1A 9.6MOHM SMD TDK Corporation |
0 |
|
规格书 |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.1 A | 6.5A | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-2R2M5R4-TFIXED IND 2.2UH 5.4A 12 MOHM SMD TDK Corporation |
0 |
|
规格书 |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.4 A | 5.5A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-3R3M4R1-TFIXED IND 3.3UH 4.1A 20.88 MOHM TDK Corporation |
0 |
|
规格书 |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.1 A | 4.4A | Shielded | 20.88mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-4R7M3R4-TFIXED IND 4.7UH 3.4A 21.3MOHM SM TDK Corporation |
0 |
|
规格书 |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.4 A | 3.5A | Shielded | 21.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-6R8M2R8-TFIXED IND 6.8UH 2.8A 44.76 MOHM TDK Corporation |
0 |
|
规格书 |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.8 A | 3A | Shielded | 44.76mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|

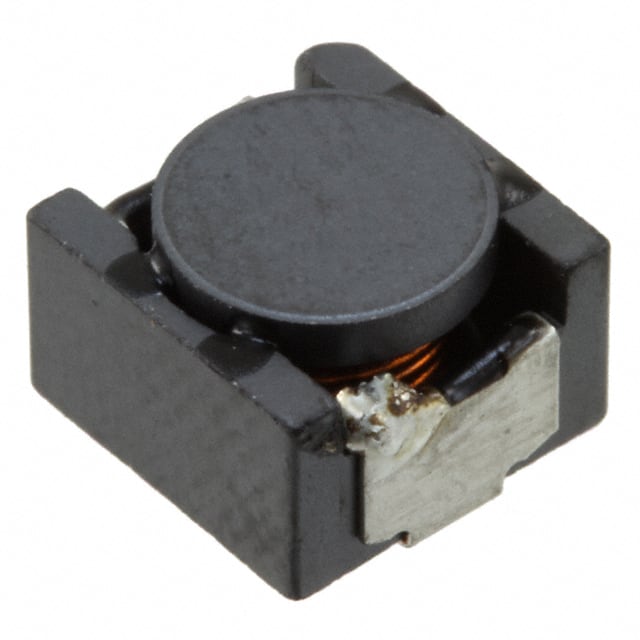

RLF7045T-470M1R0-DFIXED IND 47UH 1A 192 MOHM SMD TDK Corporation |
0 |
|
规格书 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.2A | Shielded | 192mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|

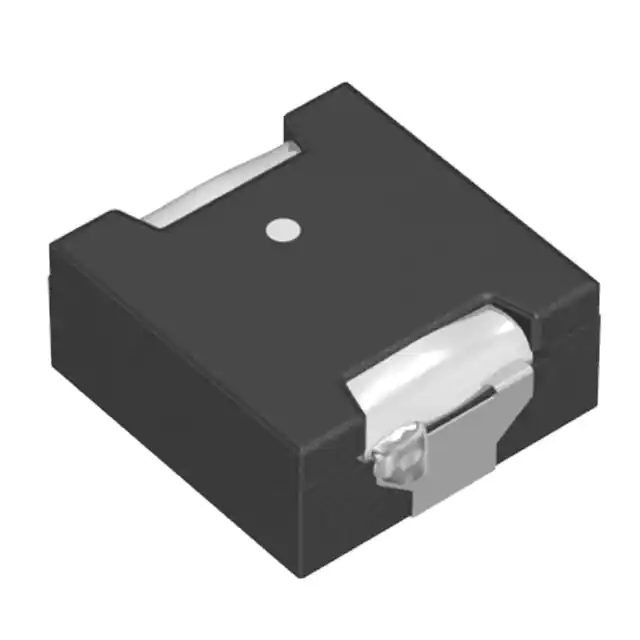

RLF12560T-1R9N120FIXED IND 1.9UH 12.7A 3.6MOHM SM TDK Corporation |
0 |
|
规格书 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.9 µH | ±30% | 12.7 A | 15.6A | Shielded | 3.6mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.236" (6.00mm) |
|
|
RLF12560T-2R7N110FIXED IND 2.7UH 11.5A 5.4MOHM SM TDK Corporation |
0 |
|
规格书 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 11.5 A | 14.4A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.236" (6.00mm) |
|
|
RLF12560T-5R6N9R2FIXED IND 5.6UH 9.2A 8.5MOHM SMD TDK Corporation |
0 |
|
规格书 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 9.2 A | 9.7A | Shielded | 8.5mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.236" (6.00mm) |
|
|
RLF12560T-7R8N8R2FIXED IND 7.8UH 8.4A 12.24 MOHM TDK Corporation |
0 |
|
规格书 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7.8 µH | ±30% | 8.4 A | 8.2A | Shielded | 12.24mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.236" (6.00mm) |
