固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0840CDMCCDS-6R8MCFIXED IND 6.8UH 6A 34 MOHM SMD Sumida America Components Inc. |
1,000 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 6 A | 6.4A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-5R6MCFIXED IND 5.6UH 7A 26.5MOHM SMD Sumida America Components Inc. |
852 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 7 A | 6.5A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
CD43NP-470KCFIXED IND 47UH 440MA 844MOHM SMD Sumida America Components Inc. |
164 |
|
规格书 |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 440 mA | - | Unshielded | 844mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

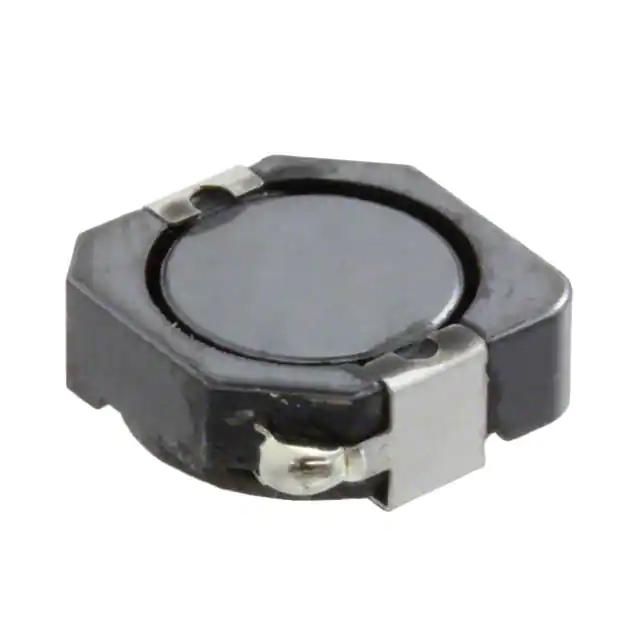

CDRH104RNP-331NCFIXED IND 330UH 520MA 1.09OHM SM Sumida America Components Inc. |
2,091 |
|
规格书 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±30% | 520 mA | 700mA | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|

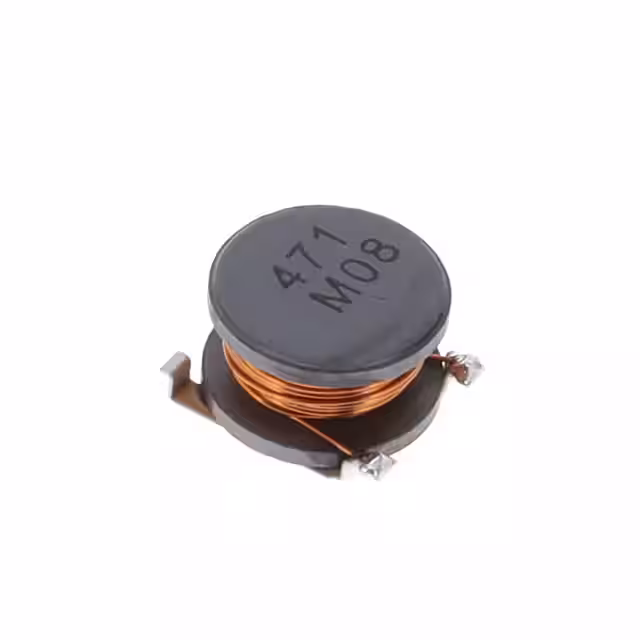

CDH80D48NP-471KCFIXED IND 470UH 450MA 1.42OHM SM Sumida America Components Inc. |
1,500 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 450 mA | 470mA | Unshielded | 1.42Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

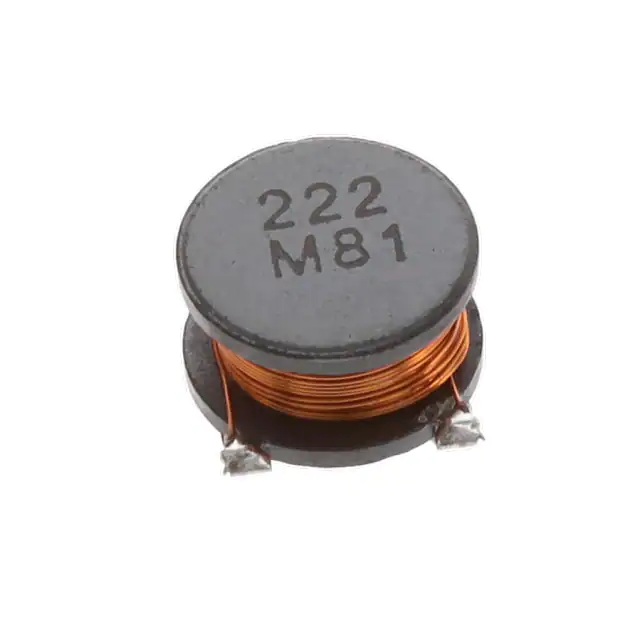

CDH80D48NP-222KCFIXED IND 2.2MH 210MA 6.54OHM SM Sumida America Components Inc. |
781 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 210 mA | 220mA | Unshielded | 6.54Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-151KCFIXED IND 150UH 830MA 480MOHM SM Sumida America Components Inc. |
500 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 830 mA | 830mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

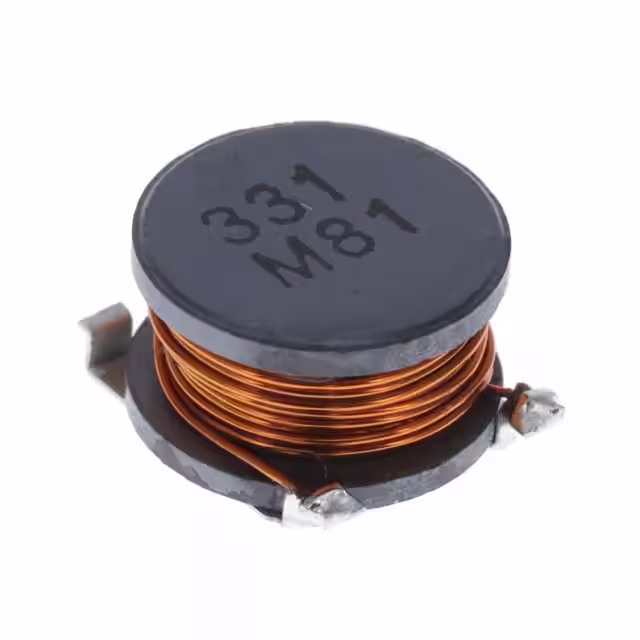

CDH80D48NP-331KCFIXED IND 330UH 570MA 1 OHM SMD Sumida America Components Inc. |
498 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 570 mA | 580mA | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

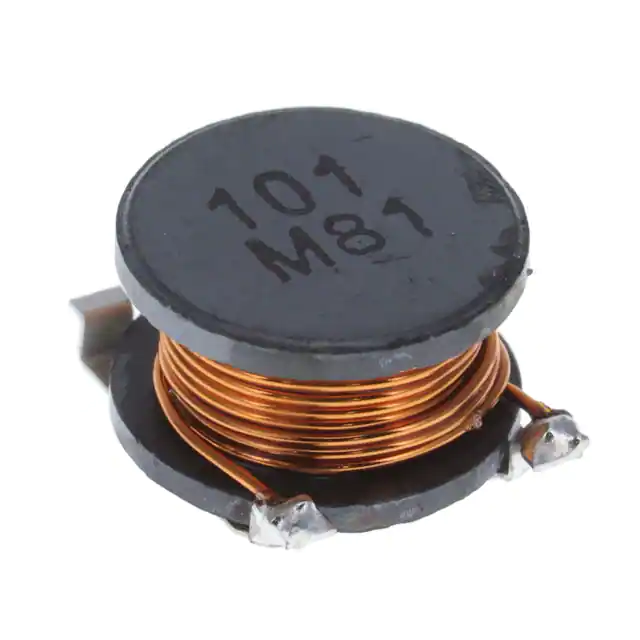

CDH80D48NP-101KCFIXED IND 100UH 1.03A 330MOHM SM Sumida America Components Inc. |
481 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.03 A | 1.02A | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

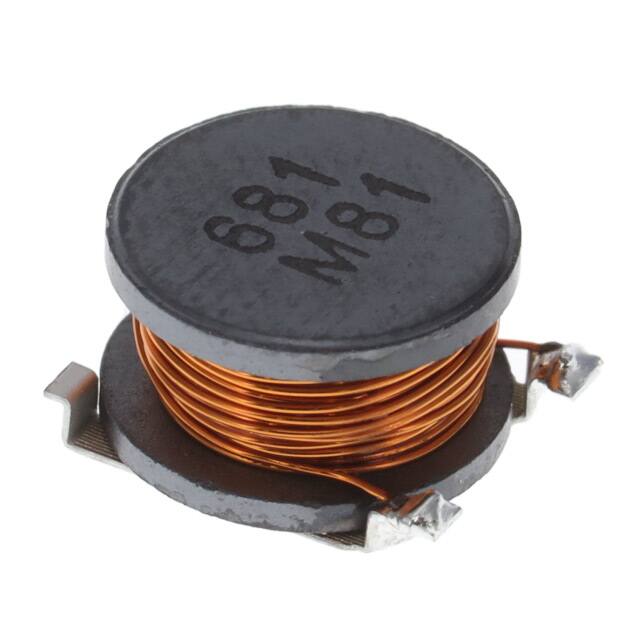

CDH80D48NP-681KCFIXED IND 680UH 370MA 2.06OHM SM Sumida America Components Inc. |
448 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 370 mA | 390mA | Unshielded | 2.06Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
