上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

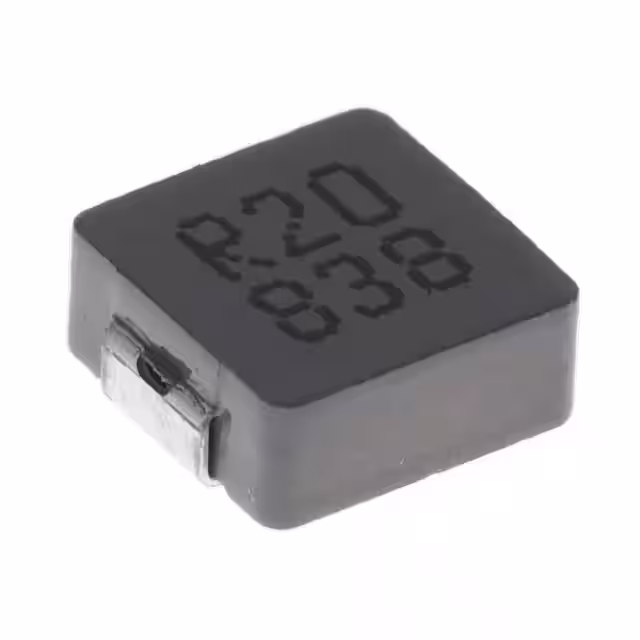

0630CDMCDDS-R20MCFIXED IND 200NH SMD Sumida America Components Inc. |
1,497 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 200 nH | ±20% | 24 A | 41A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

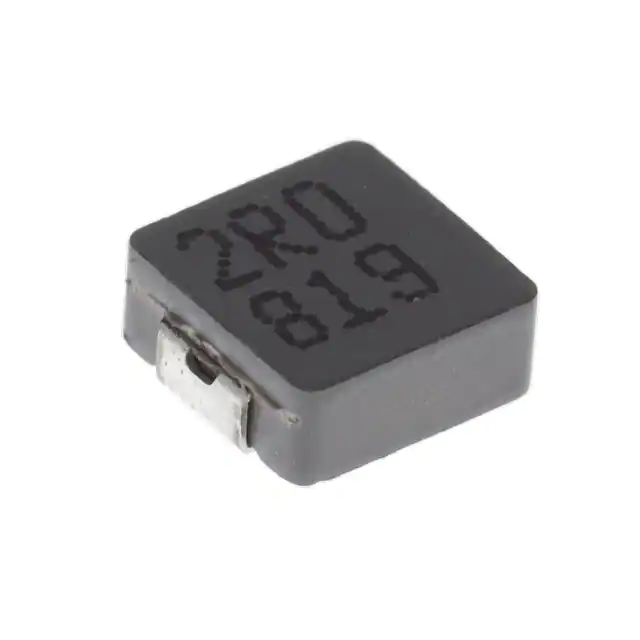

0630CDMCDDS-2R0MCFIXED IND 2UH SMD Sumida America Components Inc. |
1,409 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2 µH | ±20% | 9.5 A | 14.8A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

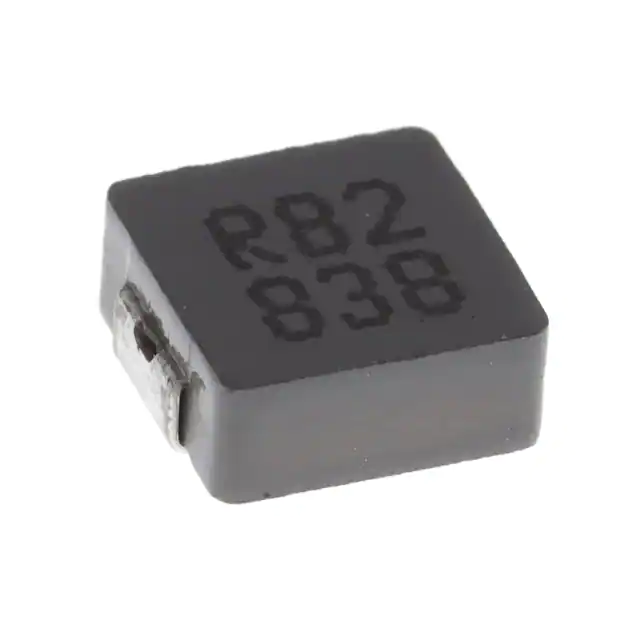

0630CDMCDDS-R82MCFIXED IND 820NH 14.8A 6MOHM SMD Sumida America Components Inc. |
1,232 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 820 nH | ±20% | 16 A | 20.8A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

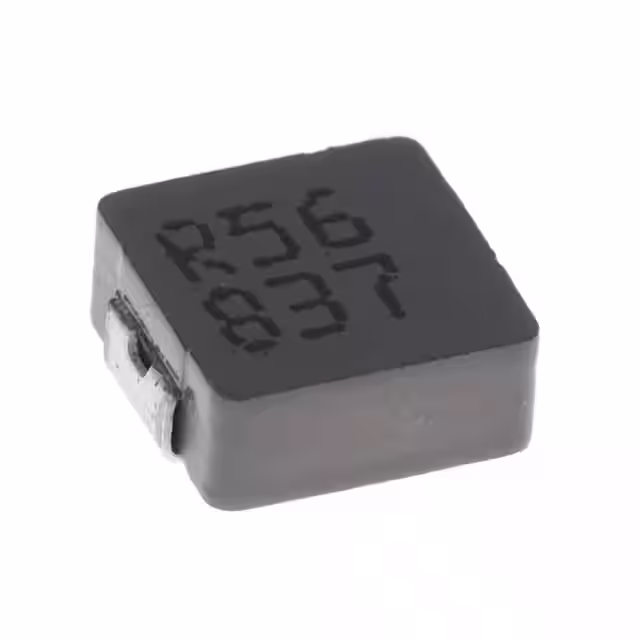

0630CDMCDDS-R56MCFIXED IND 560NH 18.8A 4.5MOHM SM Sumida America Components Inc. |
1,135 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 560 nH | ±20% | 18.8 A | 23.8A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

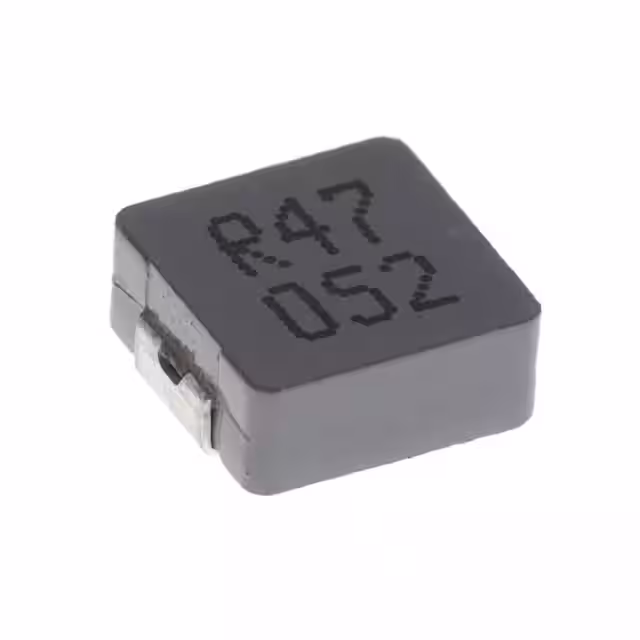

0630CDMCDDS-R47MCFIXED IND 470NH 20A 4.1MOHM SMD Sumida America Components Inc. |
3,176 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 470 nH | ±20% | 19.5 A | 24.6A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CDRH4D28NP-2R7NCFIXED IND 2.7UH 1.6A 43.3MOHM SM Sumida America Components Inc. |
4,191 |
|
规格书 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 1.6 A | - | Shielded | 43.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
0518CDMCCDS-R10MCFIXED IND 100NH 20A 3.1MOHM SMD Sumida America Components Inc. |
3,849 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 20 A | 25A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-R12MCFIXED IND 120NH 21A 2.6MOHM SMD Sumida America Components Inc. |
1,968 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 21 A | 24.5A | Shielded | 2.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-R22MCFIXED IND 220NH 16A 4.8MOHM SMD Sumida America Components Inc. |
1,739 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 16 A | 17A | Shielded | 4.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-R15MCFIXED IND 150NH 19A 3.6MOHM SMD Sumida America Components Inc. |
1,272 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 19 A | 24A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
