固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDEP15D90T150NP-4R7MC-100FIXED IND 4.7UH 14.8A 4.9MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 14.8 A | 24A | Shielded | 4.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-6R2MC-125FIXED IND 6.2UH 14.8A 4.9MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.2 µH | ±20% | 14.8 A | 18.5A | Shielded | 4.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-0R5MC-125FIXED IND 500NH 33.5A 1.2MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±20% | 33.5 A | 63A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-4R7MC-125FIXED IND 4.7UH 16.5A 3.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 16.5 A | 21.3A | Shielded | 3.5mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
CDRH8D58/LDNP-150NCFIXED IND 15UH 3.6A 36.3MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 3.6 A | 2.3A | Shielded | 36.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|

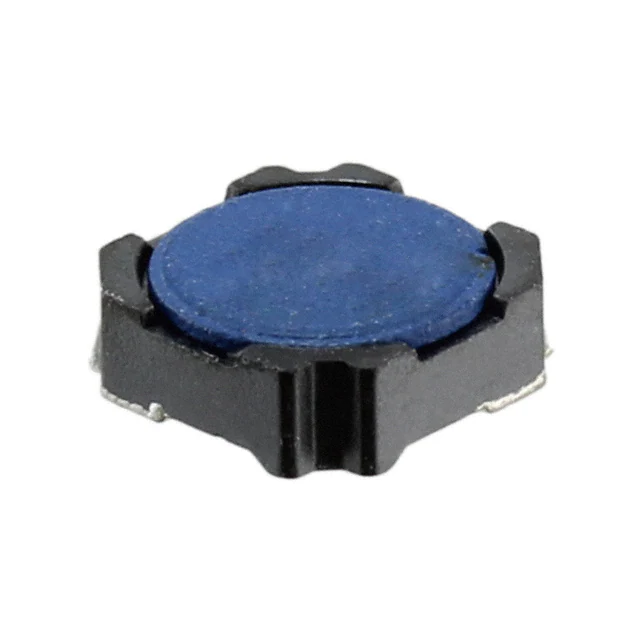

CDR6D23MNNP-8R3NCFIXED IND 8.3UH 1.5A 80 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.3 µH | ±25% | 1.5 A | 1.95A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.098" (2.50mm) |
|
|
CDEP105NP-0R3NC-88FIXED IND 360NH 19A 1.7 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 360 nH | ±30% | 19 A | 24A | Shielded | 1.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.220" (5.60mm) |
|
CDR7D28MNNP-330NCFIXED IND 33UH 1.2A 196.3MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±25% | 1.2 A | 1.35A | Shielded | 196.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CDR7D28MNNP-8R0NCFIXED IND 8UH 2.6A 50 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8 µH | ±25% | 2.6 A | 2.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CDR7D28MNNP-2R7NCFIXED IND 2.7UH 3.7A 27.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±25% | 3.7 A | 4.1A | Shielded | 27.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
