固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

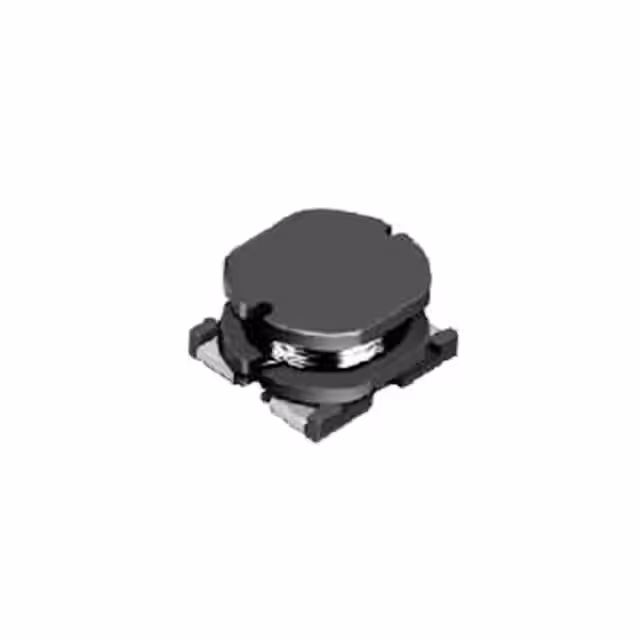

CR105NP-680KCFIXED IND 68UH 1.11A 220MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 1.11 A | - | Unshielded | 220mOhm Max | - | 9.2MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.358" W (10.00mm x 9.10mm) | 0.228" (5.80mm) |
|
CDRH124NP-4R7MCFIXED IND 4.7UH 5.7A 18 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 5.7 A | - | Shielded | 18mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

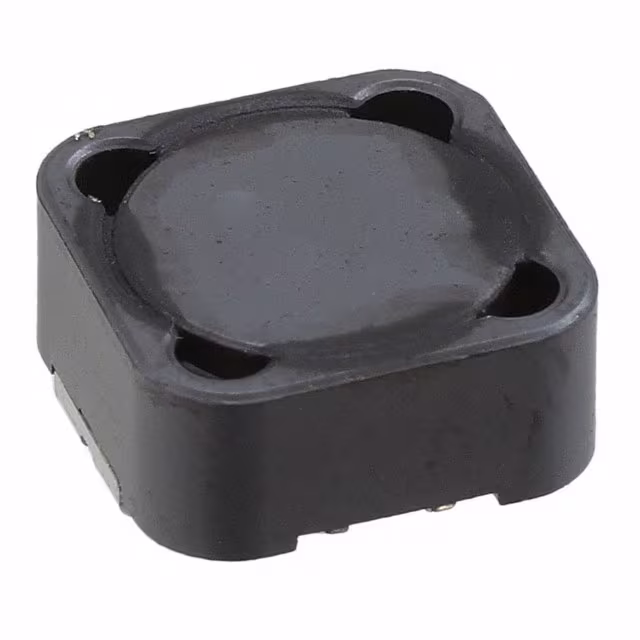

CDRH125/LDNP-471MCFIXED IND 470UH 720MA 920MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 720 mA | - | Shielded | 920mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125/LDNP-561MCFIXED IND 560UH 670MA 1.2OHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±20% | 670 mA | - | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

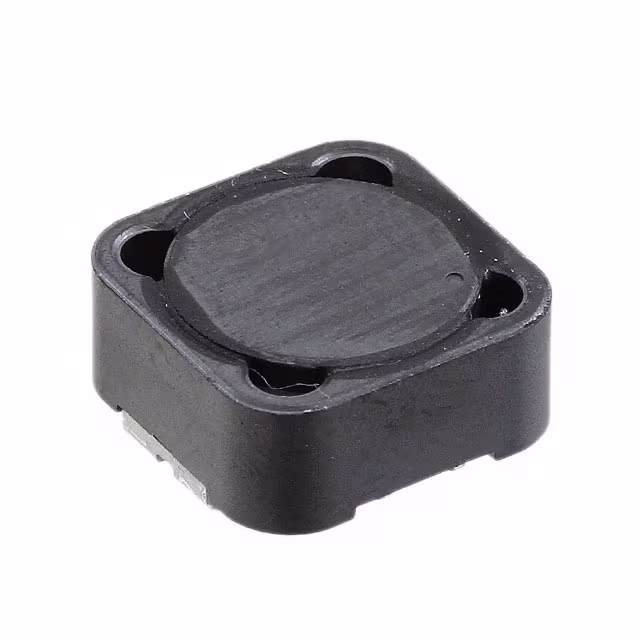

CDRH125/LDNP-151MCFIXED IND 150UH 1.26A 280MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.26 A | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH124NP-101MCFIXED IND 100UH 1.2A 308MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.2 A | - | Shielded | 308mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
CDRH2D18/HP-4R7NCFIXED IND 4.7UH 1.2A 140MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
0320CDMCCDS-R68MCFIXED IND 680NH 6.5A 21.6MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 6.5 A | 4.6A | Shielded | 21.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
|
0320CDMCCDS-R22MCFIXED IND 220NH 10A 10.2MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 10 A | 6.9A | Shielded | 10.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
|
0320CDMCCDS-R33MCFIXED IND 330NH 9.5A 11.4MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 9.5 A | 6.5A | Shielded | 11.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
