固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

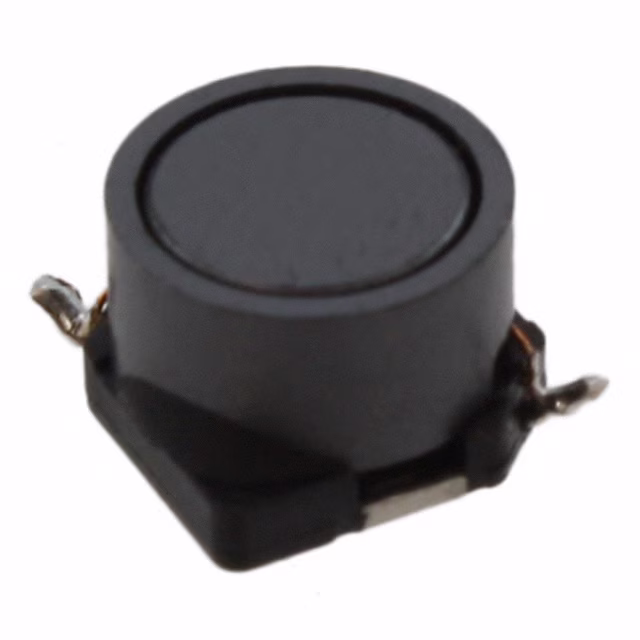

CDRR75NP-471MCFIXED IND 470UH 380MA 1.416 OHM Sumida America Components Inc. |
0 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 380 mA | 200mA | Shielded | 1.416Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|
CDRR75NP-4R7MCFIXED IND 4.7UH 2.8A 39 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 2.8 A | 2.04A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CDRR75NP-680MCFIXED IND 68UH 930MA 256MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 930 mA | 530mA | Shielded | 256mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CDRR75NP-681MCFIXED IND 680UH 310MA 1.866 OHM Sumida America Components Inc. |
0 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 310 mA | 160mA | Shielded | 1.866Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CDRR75NP-6R8MCFIXED IND 6.8UH 2.55A 43MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 2.55 A | 1.46A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|
104CDMCDDS-R36MCFIXED IND 360NH 40A 1.44MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 360 nH | ±20% | 40 A | 67.3A | Shielded | 1.44mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCDDS-R82MCFIXED IND 820NH 25A 2.76MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 25 A | 32.6A | Shielded | 2.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

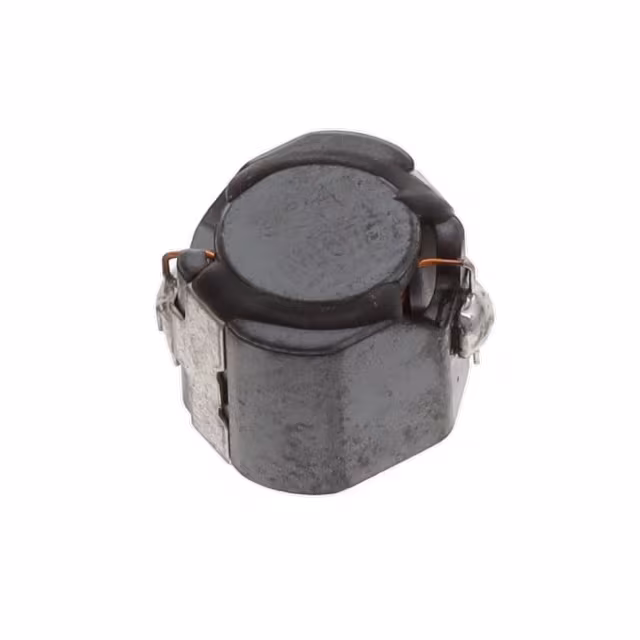

CDRH80D65BT150NP-331MCFIXED IND 330UH 670MA 646MOHM SM Sumida America Components Inc. |
5 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 670 mA | 770mA | Shielded | 646mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CDRH105RNP-2R2NCFIXED IND 2.2UH 7.5A 7.2MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 7.5 A | 9.25A | Shielded | 7.2mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.205" (5.20mm) |
|
CDRH12D58/ANP-150MCFIXED IND 15UH 3.1A 29 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.1 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
