上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

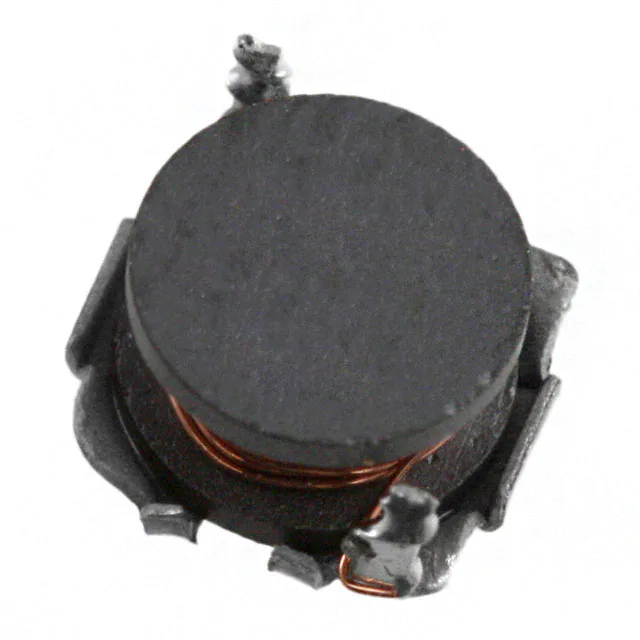

CDH115NP-220LCFIXED IND 22UH 2.1A 60 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDH115 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 2.1 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.205" (5.20mm) |
|

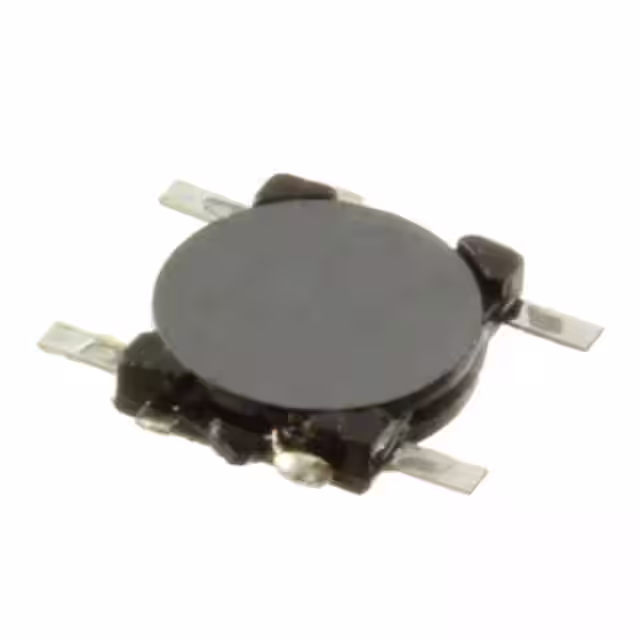

CMD4D06NP-4R7MCFIXED IND 4.7UH 750MA 216MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 750 mA | - | Unshielded | 216mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.031" (0.80mm) |
|
CDR7D43MNNP-270NCFIXED IND 27UH 1.25A 143.6 MOHM Sumida America Components Inc. |
0 |
|
规格书 |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±25% | 1.25 A | 2.5A | Shielded | 143.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRH105RNP-270NCFIXED IND 27UH 2.6A 69 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±30% | 2.6 A | 2.7A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
DEP1016NP-330PBFIXED IND 33UH 7.3A 15 MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
DEP1016 | Radial, Vertical - Corner Terminals | Tray | Active | - | Ferrite | 33 µH | ±25% | 7.3 A | 5.8A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
CDRH125NP-2R1NCFIXED IND 2.1UH 7A 14 MOHM SMD Sumida America Components Inc. |
15 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.1 µH | -20%, +30% | 7 A | - | Shielded | 14mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH5D28RHPNP-8R2NCFIXED IND 8.2UH 1.9A 88.4MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH5D28R/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±25% | 1.9 A | 2.7A | Shielded | 88.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
CDRH103RNP-151NC-BFIXED IND 150UH 510MA 871MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±30% | 510 mA | 840mA | Shielded | 871mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
|
CDRH103RNP-1R5NC-BFIXED IND 1.5UH 5.8A 11 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 5.8 A | 8A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
|
CDRH103RNP-330NC-BFIXED IND 33UH 1.35A 202MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.35 A | 1.74A | Shielded | 202mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
