固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8124NLFIXED IND 292UH 900MA 560MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 292 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8914NLTFIXED IND 33UH 3A 64.8 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3 A | 3A | Shielded | 64.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL9124TFIXED IND 220UH 1A 400 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 1 A | 1A | Shielded | 400mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL8302NLTFIXED IND 20.4UH 13.5A 10.1 MOHM iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 20.4 µH | - | 13.5 A | - | Unshielded | 10.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8302TFIXED IND 20.4UH 13.5A 10.1 MOHM iNRCORE, LLC |
0 |
|
- |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 20.4 µH | - | 13.5 A | - | Unshielded | 10.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8906NLTFIXED IND 6UH 6A 16.5 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6 µH | ±30% | 6 A | 6.9A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8916NLTFIXED IND 47UH 2.6A 89 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.6 A | 2.6A | Shielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|

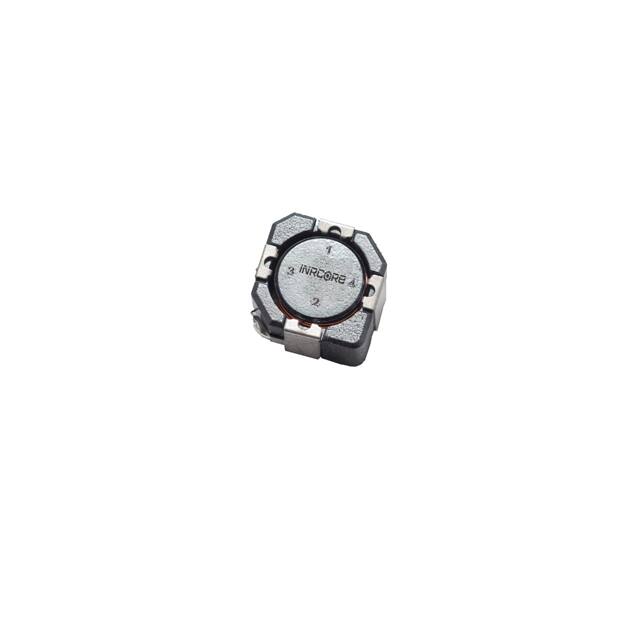

PL9201TFIXED IND 1UH 8.7A 5.7 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 8.7 A | 11A | Shielded | 5.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9203TFIXED IND 2.7UH 6.6A 10 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 6.6 A | 7.3A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9204TFIXED IND 3.6UH 5.5A 14.5MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.6 µH | ±30% | 5.5 A | 6.3A | Shielded | 14.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
