固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9223TFIXED IND 180UH 870MA 497MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 870 mA | 960mA | Shielded | 497mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9224TFIXED IND 220UH 820MA 681MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 820 mA | 860mA | Shielded | 681mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|

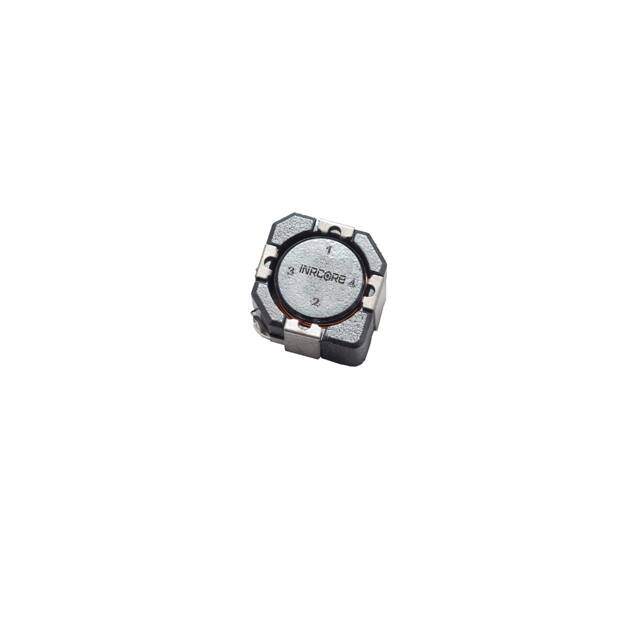

PL9120TFIXED IND 100UH 1.4A 230MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.4 A | 1.4A | Shielded | 230mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL8303NLTFIXED IND 13.8UH 17A 6.4MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8303TFIXED IND 13.8UH 17A 6.4MOHM SMD iNRCORE, LLC |
0 |
|
- |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8304NLTFIXED IND 8.4UH 19A 5.1 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8304TFIXED IND 8.4UH 19A 5.1 MOHM SMD iNRCORE, LLC |
0 |
|
- |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL9118TFIXED IND 68UH 1.8A 120 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.8 A | 1.8A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL8915NLTFIXED IND 39UH 2.7A 81.5MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.7 A | 2.8A | Shielded | 81.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8401FIXED IND 39.5UH 2.7A 90.5 MOHM iNRCORE, LLC |
0 |
|
规格书 |
- | Nonstandard | Tube | Active | Toroidal | - | 39.5 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
