固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9122NLTFIXED IND 150UH 1.2A 280MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.2 A | 1.2A | Shielded | 280mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9123NLTFIXED IND 180UH 1.1A 310MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.1 A | 1.1A | Shielded | 310mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9128NLTFIXED IND 470UH 680MA 850MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 680 mA | 680mA | Shielded | 850mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9129NLTFIXED IND 560UH 630MA 1.06OHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 630 mA | 630mA | Shielded | 1.06Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9130NLTFIXED IND 680UH 570MA 1.2OHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 570 mA | 570mA | Shielded | 1.2Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9131NLTFIXED IND 820UH 520MA 1.55OHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 520 mA | 520mA | Shielded | 1.55Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9309TFIXED IND 12UH 3A 45.2 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 3 A | 3.4A | Shielded | 45.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

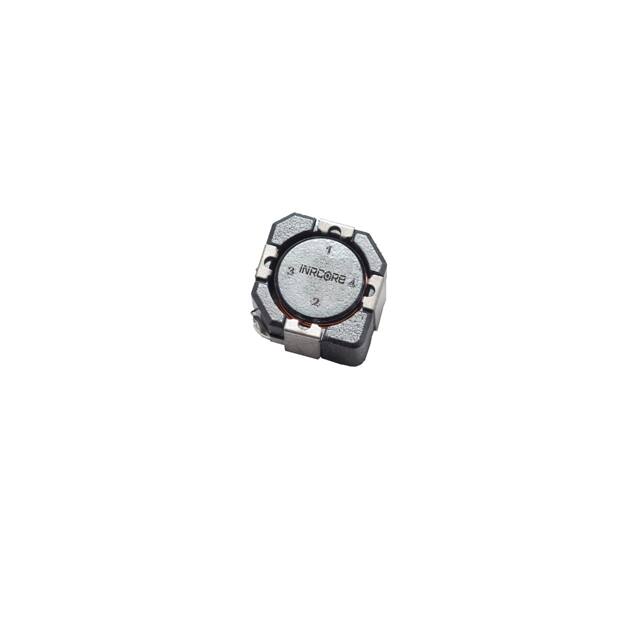

PL9313TFIXED IND 47UH 1.65A 142MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.65 A | 2.1A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL8124FIXED IND 292UH 900MA 560MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 292 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL9317NLTFIXED IND 220UH 730MA 739MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 730 mA | 920mA | Shielded | 739mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
