固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9205TFIXED IND 4.5UH 5.1A 16.5MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.5 µH | ±30% | 5.1 A | 5.5A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9206TFIXED IND 6UH 4.4A 22 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6 µH | ±30% | 4.4 A | 4.9A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9207TFIXED IND 7.6UH 4.2A 25 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | ±30% | 4.2 A | 4.4A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9210TFIXED IND 15UH 3A 47 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3 A | 3.4A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|

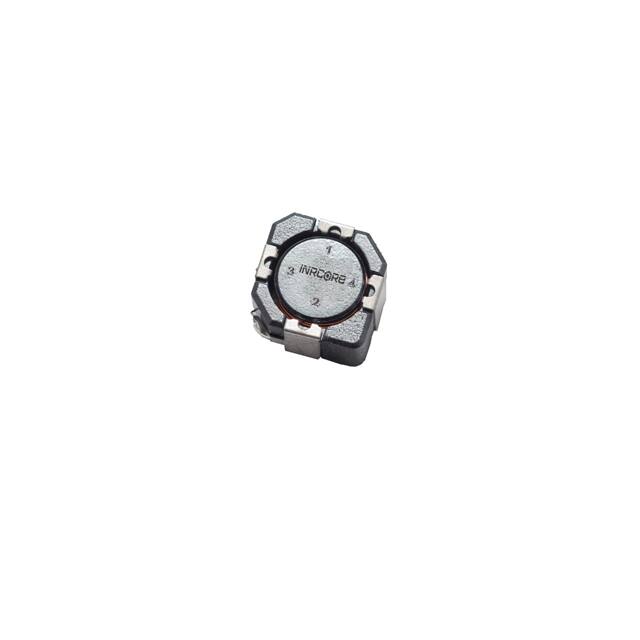

PL9211TFIXED IND 18UH 2.7A 58 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 2.7 A | 2.9A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9212TFIXED IND 22UH 2.6A 67 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.6 A | 2.8A | Shielded | 67mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9213TFIXED IND 27UH 2.2A 79 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2.2 A | 2.4A | Shielded | 79mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9215TFIXED IND 39UH 1.8A 126 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 1.8 A | 2A | Shielded | 126mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9216TFIXED IND 47UH 1.7A 140 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.7 A | 1.8A | Shielded | 140mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9222TFIXED IND 150UH 1.02A 456MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.02 A | 1.05A | Shielded | 456mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
