场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STI30N65M5MOSFET N-CH 650V 22A I2PAK STMicroelectronics |
993 | - |
|
规格书 |
MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 139mOhm @ 11A, 10V | 5V @ 250µA | 64 nC @ 10 V | ±25V | 2880 pF @ 100 V | - | 140W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
STW19NM50NMOSFET N-CH 500V 14A TO247-3 STMicroelectronics |
313 | - |
|
规格书 |
MDmesh™ II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STW28NM60NDMOSFET N-CH 600V 23A TO247 STMicroelectronics |
127 | - |
|
规格书 |
FDmesh™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 150mOhm @ 11.5A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2090 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STW15NM60NDMOSFET N-CH 600V 14A TO247-3 STMicroelectronics |
372 | - |
|
规格书 |
FDmesh™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 299mOhm @ 7A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±25V | 1250 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STH240N75F3-6MOSFET N-CH 75V 180A H2PAK-6 STMicroelectronics |
920 | - |
|
规格书 |
STripFET™ III | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 180A (Tc) | 10V | 3mOhm @ 90A, 10V | 4V @ 250µA | 87 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | H2PAK-6 |
|
|
STI32N65M5MOSFET N-CH 650V 24A I2PAK STMicroelectronics |
995 | - |
|
规格书 |
MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 119mOhm @ 12A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±25V | 3320 pF @ 100 V | - | 150W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
STB36NM60NMOSFET N-CH 600V 29A D2PAK STMicroelectronics |
946 | - |
|
规格书 |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 105mOhm @ 14.5A, 10V | 4V @ 250µA | 83.6 nC @ 10 V | ±25V | 2722 pF @ 100 V | - | 210W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
STO65N60DM6N-CHANNEL 600 V, 67 MOHM TYP., 4 STMicroelectronics |
1,569 | - |
|
规格书 |
MDmesh™ DM6 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 46A (Tc) | 10V | 76mOhm @ 23A, 10V | 4.75V @ 250µA | 65.2 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 320W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TOLL (HV) |
|
STFI6N65K3MOSFET N-CH 650V 5.4A I2PAKFP STMicroelectronics |
500 | - |
|
规格书 |
SuperMESH3™ | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.4A (Tc) | 10V | 1.3Ohm @ 2.7A, 10V | 4.5V @ 50µA | 33 nC @ 10 V | ±30V | 880 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-281 (I2PAKFP) |
|

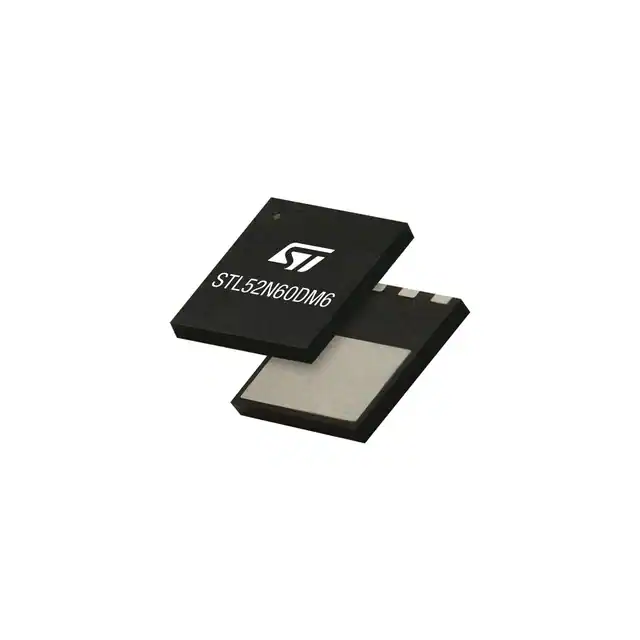

STL52N60DM6N-CHANNEL 600 V, 0.084 OHM TYP., STMicroelectronics |
2,460 | - |
|
规格书 |
MDmesh™ DM6 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 45A (Tc) | 10V | 84mOhm @ 22.5A, 10V | 4.75V @ 250µA | 52 nC @ 10 V | ±25V | 2468 pF @ 100 V | - | 174W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
