场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
2N7008-GMOSFET N-CH 60V 230MA TO92-3 Microchip Technology |
533 | - |
|
规格书 |
- | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±30V | 50 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TN2106N3-GMOSFET N-CH 60V 300MA TO92-3 Microchip Technology |
428 | - |
|
规格书 |
- | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Tj) | 4.5V, 10V | 2.5Ohm @ 500mA, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 740mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
APT30M85BVRGMOSFET N-CH 300V 40A TO247 Microchip Technology |
80 | - |
|
规格书 |
POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 40A (Tc) | 10V | 85mOhm @ 500mA, 10V | 4V @ 1mA | 195 nC @ 10 V | ±30V | 4950 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT1001RBVRGMOSFET N-CH 1000V 11A TO247 Microchip Technology |
37 | - |
|
规格书 |
POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 11A (Tc) | - | 1Ohm @ 500mA, 10V | 4V @ 1mA | 225 nC @ 10 V | - | 3660 pF @ 25 V | - | - | - | - | - | Through Hole | TO-247 [B] |
|
|
APT6025BVRGMOSFET N-CH 600V 25A TO247 Microchip Technology |
71 | - |
|
规格书 |
POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | - | 250mOhm @ 500mA, 10V | 4V @ 1mA | 275 nC @ 10 V | - | 5160 pF @ 25 V | - | - | - | - | - | Through Hole | TO-247 [B] |
|
APT37M100LMOSFET N-CH 1000V 37A TO264 Microchip Technology |
25 | - |
|
规格书 |
- | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 330mOhm @ 18A, 10V | 5V @ 2.5mA | 305 nC @ 10 V | ±30V | 9835 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 |
|

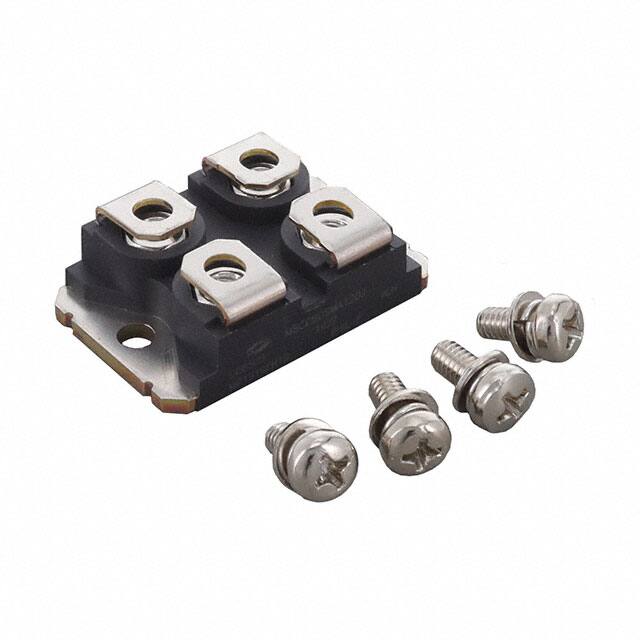

MSC080SMA120JSICFET N-CH 1.2KV 35A SOT227 Microchip Technology |
56 | - |
|
规格书 |
- | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 37A (Tc) | - | - | - | - | - | - | - | - | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
APT5010JVRU2MOSFET N-CH 500V 44A SOT227 Microchip Technology |
20 | - |
|
规格书 |
- | SOT-227-4, miniBLOC | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 100mOhm @ 22A, 10V | 4V @ 2.5mA | 312 nC @ 10 V | ±30V | 7410 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
MSC015SMA070B4TRANS SJT N-CH 700V 140A TO247-4 Microchip Technology |
45 | - |
|
规格书 |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 140A (Tc) | 20V | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215 nC @ 20 V | +23V, -10V | 4500 pF @ 700 V | - | 455W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
APT8030JVFRMOSFET N-CH 800V 25A ISOTOP Microchip Technology |
21 | - |
|
规格书 |
POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 25A (Tc) | - | 300mOhm @ 500mA, 10V | 4V @ 2.5mA | 510 nC @ 10 V | - | 7900 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
