上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G201608CENCLOSURE PLAS 24.17"L X 18.99"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 24.173" L x 18.992" W (614.00mm x 482.40mm) | 9.441" (239.80mm) | 459.1in² (2962cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | - | - | IP66, IP68 | UL94 V-0 |
|

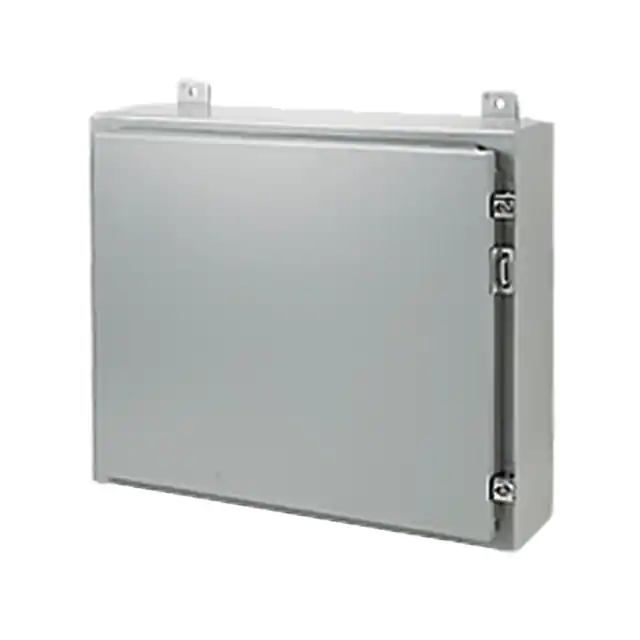

A161206LPJUNCTION BOX STEEL 16"L X 12"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 15.984" L x 12.008" W (406.00mm x 305.00mm) | 5.984" (152.00mm) | 192in² (1239cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|

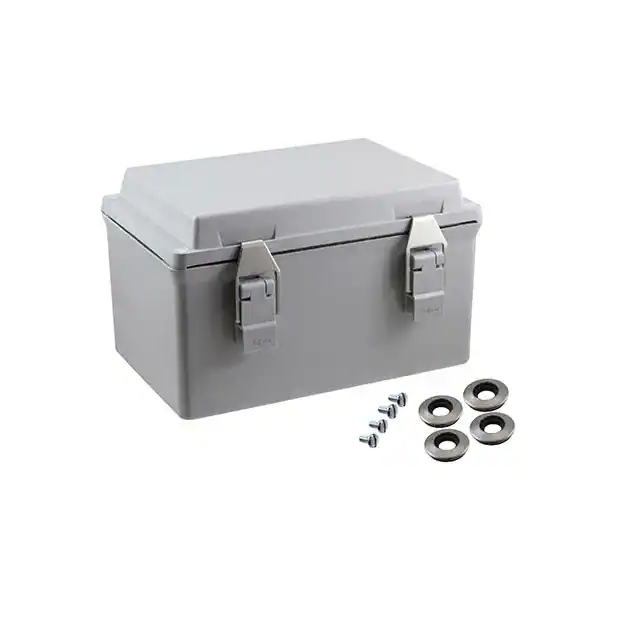

A14107JFGQRRJUNCTION BOX GRAY 14.02"L X 10"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 14.016" L x 10.000" W (356.00mm x 254.00mm) | 7.008" (178.00mm) | 140in² (903cm²) | Hinged Door, Lid | Fiberglass/Polyester | Gray | 0.079" (2.00mm) | PCB Supports, Sealing Gasket | IP66, NEMA 3,3R,4,4X,12,13, UL-508A | - |
|
G201608TPLENCLOSURE PLAS 24.17"L X 18.99"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 24.170" L x 18.990" W (613.92mm x 482.35mm) | 9.440" (239.78mm) | 459in² (2961cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | - | - | IP66, NEMA 4X | UL94 V-0 |
|
NSYS3X6420ENCLOSURE S STL 23.62"LX15.75"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 23.622" L x 15.748" W (600.00mm x 400.00mm) | 7.874" (200.00mm) | 372in² (2400cm²) | Cover Included | Metal, Stainless Steel | Gray | - | - | IP66 | - |
|
|
A201606LPJUNCTION BOX STEEL 20"L X 16"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 20.000" L x 15.984" W (508.00mm x 406.00mm) | 5.984" (152.00mm) | 320in² (2065cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|

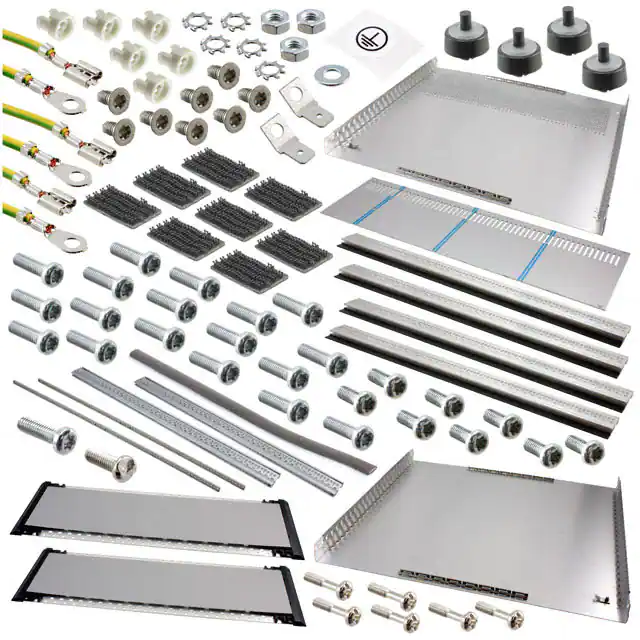

24572056CASE ALUM NAT 17.15"L X 17.67"W |
1 |
|
规格书 |
ratiopacPRO | Box | Active | Case | 17.146" L x 17.673" W (435.50mm x 448.90mm) | 5.250" (133.35mm) | 303in² (1955cm²) | Split Sides and End Panel(s) | Metal, Aluminum | Natural | 0.039" (1.00mm) | EMI Shielded | - | - |
|
G242410CEENCLOSURE PLAS 27.16"L X 25.75"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 27.160" L x 25.750" W (689.86mm x 654.05mm) | 11.500" (292.10mm) | 699in² (4512cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray, Clear Cover | - | - | IP66, IP68, NEMA 4X, NEMA 6P | UL94 5VA, UL94 V-0 |
|
A16H12ALPJUNCTION BOX STEEL 16"L X 12"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 15.984" L x 12.008" W (406.00mm x 305.00mm) | 5.984" (152.00mm) | 192in² (1239cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 3,4,12,13, UL-508A | - |
|
|
A202006LPJUNCTION BOX STL GRY 20"L X 20"W |
1 |
|
规格书 |
- | Box | Active | Junction Box | 20.000" L x 20.000" W (508.00mm x 508.00mm) | 5.984" (152.00mm) | 400in² (2581cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|
G242410QTLENCLOSURE PLAS 27.16"L X 25.75"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 27.160" L x 25.750" W (689.86mm x 654.05mm) | 11.500" (292.10mm) | 699in² (4512cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | - | - | IP66, NEMA 4X | UL94 V-0 |
|
|
A16H16ALPJUNCTION BOX STEEL 16"L X 16"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 15.984" L x 15.984" W (406.00mm x 406.00mm) | 5.984" (152.00mm) | 255in² (1645cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 3,4,12,13, UL-508A | - |
|
G242410TPLENCLOSURE PLAS 27.16"L X 25.75"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 27.160" L x 25.750" W (689.86mm x 654.05mm) | 11.500" (292.10mm) | 699in² (4512cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | - | - | IP66, NEMA 4X | UL94 V-0 |
|
|
A16128JFGQRRJUNCT BOX FIBER 15.98"LX12.01"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 15.984" L x 12.008" W (406.00mm x 305.00mm) | 7.992" (203.00mm) | 192in² (1239cm²) | Hinged Door, Lid | Fiberglass/Polyester | Gray | 0.079" (2.00mm) | PCB Supports, Sealing Gasket | IP66, NEMA 3,3R,4,4X,12,13, UL-508A | - |
|
|
A242406LPJUNCTION BOX STEEL 24"L X 24"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 24.016" L x 24.016" W (610.00mm x 610.00mm) | 5.984" (152.00mm) | 576in² (3716cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|
G242410CQTLENCLOSURE PLAS 27.16"L X 25.75"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 27.160" L x 25.750" W (689.86mm x 654.05mm) | 11.500" (292.10mm) | 699in² (4512cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray, Clear Cover | - | - | IP66, NEMA 4X | UL94 5VA, UL94 V-0 |
|
CSD36248BOX STEEL GRAY 35.98"L X 24.02"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 35.984" L x 24.016" W (914.00mm x 610.00mm) | 7.992" (203.00mm) | 864in² (5574cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 4,12,13, UL-508A | - |
|
G242410CTPLENCLOSURE PLAS 27.16"L X 25.75"W |
0 |
|
规格书 |
Genesis | Box | Active | Enclosure | 27.160" L x 25.750" W (689.86mm x 654.05mm) | 11.500" (292.10mm) | 699in² (4512cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray, Clear Cover | - | - | IP66, NEMA 4X | UL94 5VA, UL94 V-0 |
|
1194590000BOX S STL 9.02"L X 5.98"W |
1 |
|
规格书 |
Klippon® TB | Bulk | Active | Box | 9.016" L x 5.984" W (229.00mm x 152.00mm) | 5.118" (130.00mm) | 54.0in² (348cm²) | Hinged Door, Lid | Metal, Stainless Steel | Unpainted | 0.059" (1.50mm) | Lockable, Mounting Flange, Sealed, Wall Mount | IP66, IP67 | - |
|
|
A243008LPJUNCTION BOX STEEL 24"L X 30"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 30.000" L x 24.016" W (762.00mm x 610.00mm) | 7.992" (203.00mm) | 720in² (4645cm²) | Cover Included | Metal, Steel | Gray | 14 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
