箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R100-122-000BOX ALUM BEIGE 7.09"L X 4.72"W |
1 |
|
规格书 |
R100 | Bulk | Active | Box | 7.087" L x 4.724" W (180.00mm x 120.00mm) | 3.937" (100.00mm) | 33.6in² (217cm²) | Split Sides | Thick Wall Aluminum | Beige | - | PCB Supports, Watertight | DIN 40050, IP66, NEMA 4X | - |
|
NSYCRN65200ENCLOSURE STL 23.62"L X 19.69"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 23.622" L x 19.685" W (600.00mm x 500.00mm) | 7.874" (200.00mm) | 465in² (3000cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66 | - |
|

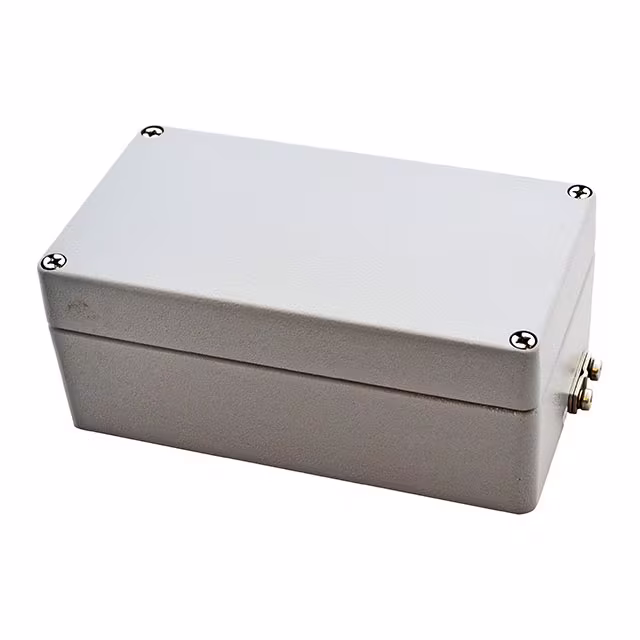

ATX-10512JUNCTION BOX ALUM 8.66"LX4.72"W |
1 |
|
规格书 |
ATX | Bulk | Active | Junction Box | 8.661" L x 4.724" W (220.00mm x 120.00mm) | 3.583" (91.00mm) | 40.9in² (264cm²) | Cover Included | Metal, Aluminum | Gray | 0.201" (5.10mm) | PCB Supports, Sealing Gasket | IP66 | - |
|

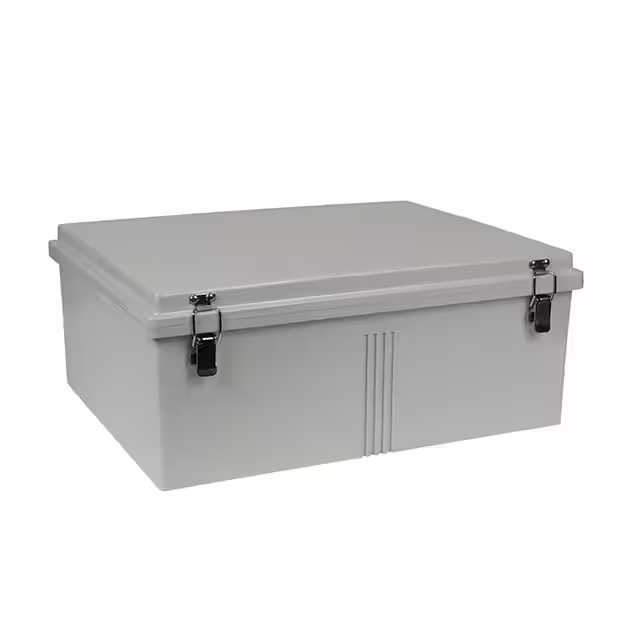

PTH-22438BOX PC GRAY 19.76"L X 15.83"W |
1 |
|
规格书 |
PTH | Bulk | Active | Box | 19.760" L x 15.830" W (501.90mm x 402.08mm) | 7.990" (202.95mm) | 312in² (2019cm²) | Hinged Door, Lid | Plastic, Polycarbonate (PC) | Gray | 0.120" (3.05mm) | Latches, Sealing Gasket | IP67, NEMA 4X, UL 508 | UL94 5VA |
|
|
I652HLGGBOX PLAS GRAY 17.75"L X 16.27"W |
0 |
|
规格书 |
I | Box | Active | Box | 17.750" L x 16.270" W (450.85mm x 413.26mm) | 11.410" (289.81mm) | 289in² (1865cm²) | Hinged Door, Lid | Plastic, Polycarbonate | Gray | - | - | IP65, IP66, IP67, NEMA 4X, 12, 13 | UL94 V-0 |
|
UPS 525-17-9-BLUE/WHITECABINET ALUM 16.75"L X 8.88"W |
0 |
|
- |
Uni-Pac | Bulk | Active | Cabinet | 16.750" L x 8.875" W (425.45mm x 225.43mm) | 5.063" (128.60mm) | 149in² (961cm²) | End Panel(s) | Metal, Aluminum | Blue, White | 0.063" (1.60mm) | Separate Panel or Cover Thickness | - | - |
|
A806CHNFJUNCTION BOX STL 7.99"L X 5.98"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 7.992" L x 5.984" W (203.00mm x 152.00mm) | 3.504" (89.00mm) | 47.7in² (308cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Stainless Steel Hinges, Wall Mount | IP66, NEMA 4,12,13, UL-508A | - |
|
SE720F,YLCASE PLSTC YLW 19.75"L X 15.53"W |
1 |
|
规格书 |
SE, Seahorse | Bulk | Active | Case | 19.750" L x 15.530" W (501.65mm x 394.46mm) | 7.460" (189.48mm) | 307in² (1981cm²) | Equipment Case, Hinged Lid | Plastic, Polypropylene | Yellow | - | Foam Insert, Watertight/Airtight | IP67/MIL-STD 810F-512.4 | UL-HB75 |
|

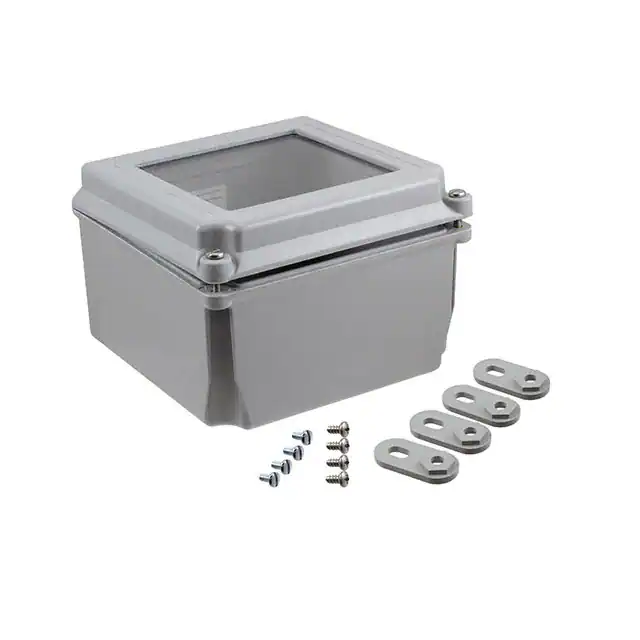

A664CHSCFGWJUNCTION BOX FIBERGLASS 6"LX6"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 5.984" L x 5.984" W (152.00mm x 152.00mm) | 4.016" (102.00mm) | 35.8in² (231cm²) | Hinged Door, Lid | Fiberglass/Polyester | Gray | 0.118" (3.00mm) | Sealing Gasket, Wall Mount | IP66, NEMA 4,4X,12,13, UL-508A | - |
|
|
NSYPLM43GENCLOSURE GRAY 16.93"L X 12.99"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 16.929" L x 12.992" W (430.00mm x 330.00mm) | 7.874" (200.00mm) | 220in² (1419cm²) | Cover Included | Fiberglass/Polyester | Gray | - | - | IP66 | - |
|
A16N12ALPBOX STEEL GRAY 15.98"L X 12.01"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 15.984" L x 12.008" W (406.00mm x 305.00mm) | 6.614" (168.00mm) | 192in² (1239cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Mounting Flange, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|
A1210SCJUNCTION BOX STL 12.01"L X 10"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 12.008" L x 10.000" W (305.00mm x 254.00mm) | 5.000" (127.00mm) | 120in² (774cm²) | Cover Included | Metal, Steel | Gray | 14 Gauge | PCB Supports, Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|

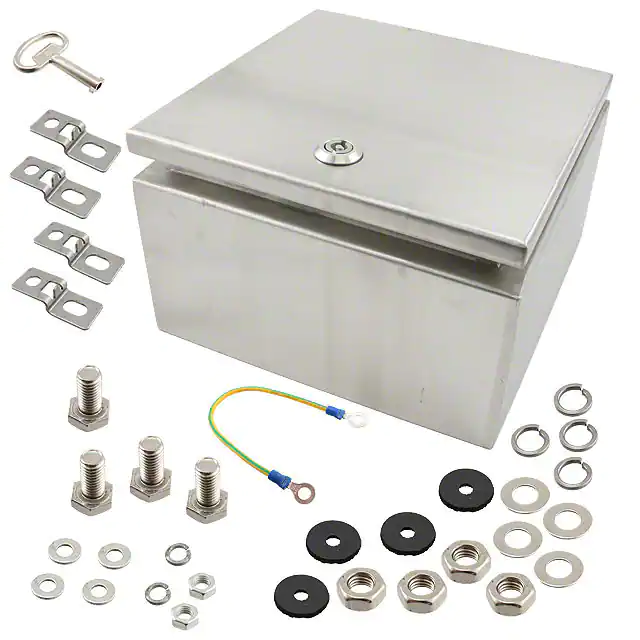

SNB-3740-SSBOX S STL NAT 9.84"L X 9.84"W |
1 |
|
规格书 |
SNB | Bulk | Active | Box | 9.840" L x 9.840" W (249.94mm x 249.94mm) | 5.910" (150.11mm) | 96.8in² (625cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 14 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
|
UPS 525-17-12-BLUE/WHITECABINET ALUM 16.75"L X 11.88"W |
1 |
|
- |
Uni-Pac | Bulk | Active | Cabinet | 16.750" L x 11.875" W (425.45mm x 301.63mm) | 5.063" (128.60mm) | 199in² (1284cm²) | End Panel(s) | Metal, Aluminum | Blue, White | 0.063" (1.60mm) | Separate Panel or Cover Thickness | - | - |
|
|
NSYS3DC7525ENCLOSURE STL 27.56"L X 19.69"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 27.559" L x 19.685" W (700.00mm x 500.00mm) | 9.843" (250.00mm) | 543in² (3500cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66, NEMA 4X,13 | - |
|
|
NSYS3DC6620ENCLOSURE STL 23.62"L X 23.62"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 23.622" L x 23.622" W (600.00mm x 600.00mm) | 7.874" (200.00mm) | 558in² (3600cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66, NEMA 4X,13 | - |
|

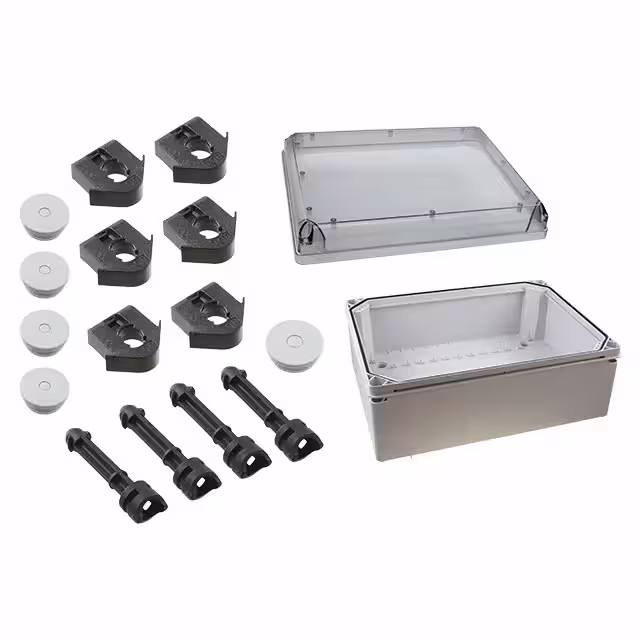

701-734BOX PLASTIC GRAY/CLR |
1 |
|
规格书 |
- | Box | Active | Box | - | 8.900" (226.06mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP67 | - |
|
|
NSYCRN86200ENCLOSURE STL 31.5"L X 23.62"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 31.496" L x 23.622" W (800.00mm x 600.00mm) | 7.874" (200.00mm) | 744in² (4800cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66 | - |
|

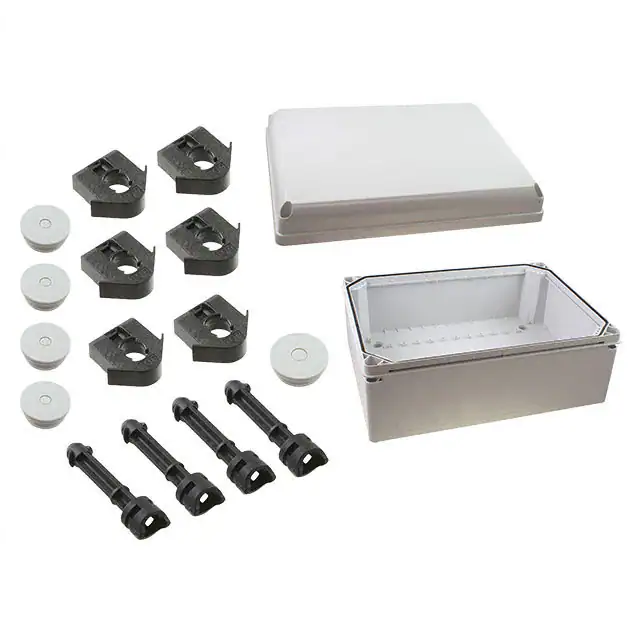

700-734BOX PLASTIC GRAY |
1 |
|
规格书 |
- | Box | Active | Box | - | 8.900" (226.06mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67 | - |
|

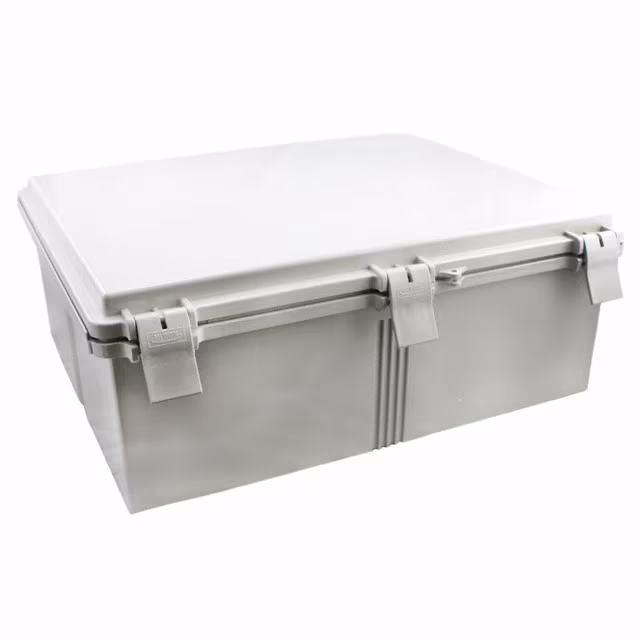

NBF-32138BOX ABS/PC GRY 20.86"L X 16.92"W |
1 |
|
规格书 |
NBF | Bulk | Active | Box | 20.860" L x 16.920" W (529.84mm x 429.77mm) | 7.870" (199.90mm) | 353in² (2277cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | 0.165" (4.20mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
