箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1066JFGQRRJUNCTION BOX 10"L X 5.98"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 10.000" L x 5.984" W (254.00mm x 152.00mm) | 5.984" (152.00mm) | 59.8in² (386cm²) | Hinged Door, Lid | Fiberglass/Polyester | Gray | 0.079" (2.00mm) | PCB Supports, Sealing Gasket | IP66, NEMA 3,3R,4,4X,12,13, UL-508A | - |
|

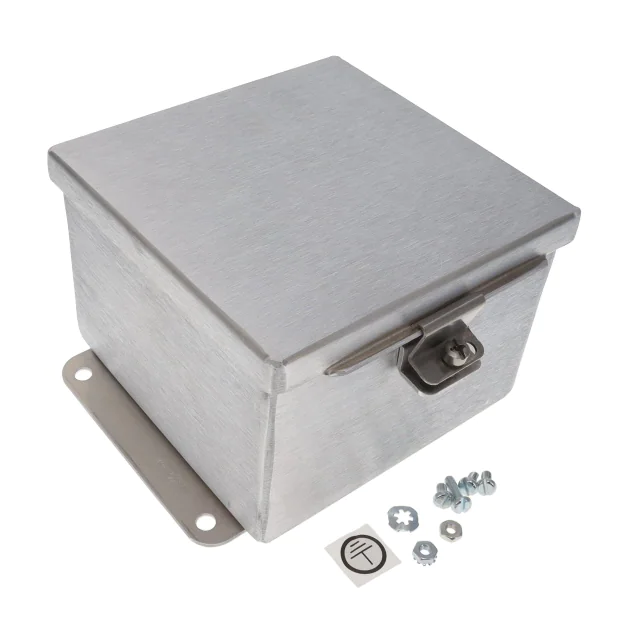

A606CHALJUNCTION BOX ALUM 5.98"LX5.98"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 5.984" L x 5.984" W (152.00mm x 152.00mm) | 4.016" (102.00mm) | 35.8in² (231cm²) | Hinged Door, Lid | Metal, Aluminum | Natural | 0.079" (2.00mm) | Sealing Gasket, Wall Mount | IP65, NEMA 3RX,12, 13, UL-50, 50E | - |
|

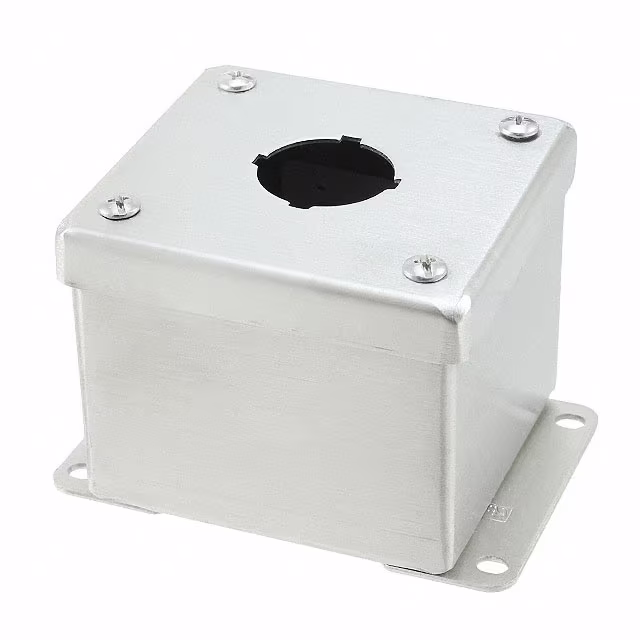

E1PBSSBOX STEEL NAT 4.25"L X 3.50"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 4.252" L x 3.504" W (108.00mm x 89.00mm) | 2.756" (70.00mm) | 9.66in² (62.3cm²) | Cover Included | Metal, Steel | Natural | 14 Gauge | Mounting Flange, Pushbutton Holes - 1 | IP66, NEMA 4,4X,12,13, UL-508A | - |
|

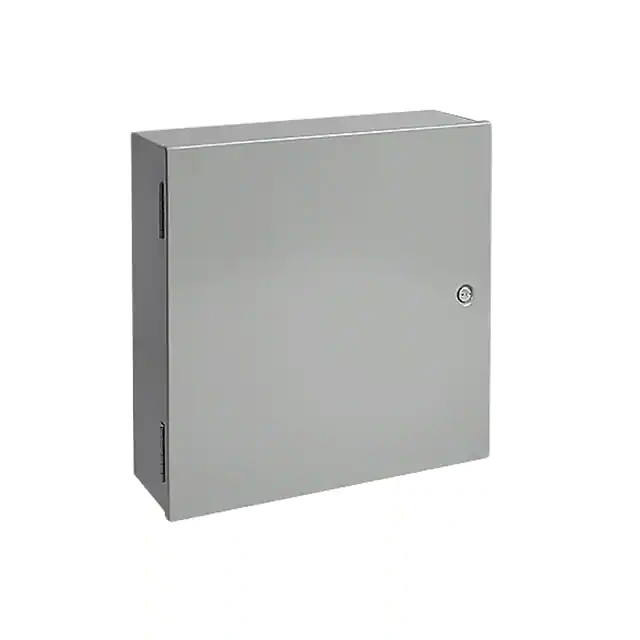

A20N16ALPBOX STEEL GRAY 20"L X 15.98"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 20.000" L x 15.984" W (508.00mm x 406.00mm) | 6.614" (168.00mm) | 320in² (2065cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Mounting Flange, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|

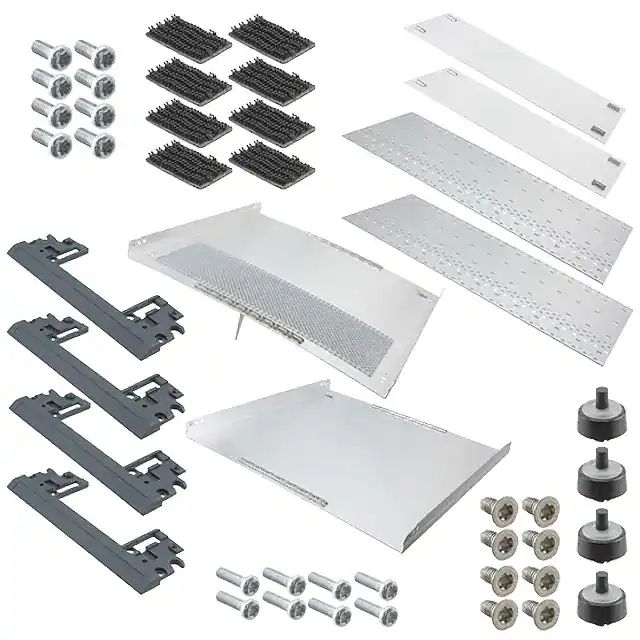

24571091CASE ALUM NAT 17.15"L X 17.67"W |
1 |
|
规格书 |
ratiopacPRO | Box | Active | Case | 17.146" L x 17.673" W (435.50mm x 448.90mm) | 7.000" (177.80mm) | 303in² (1955cm²) | Split Sides and End Panel(s) | Metal, Aluminum | Natural | 0.039" (1.00mm) | - | - | - |
|

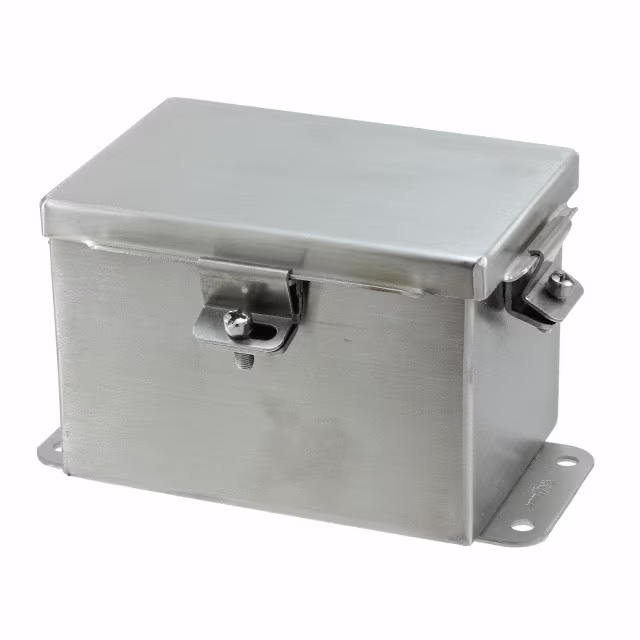

A6044NFSSJUNCTION BOX S STL 5.98"LX4.02"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 5.984" L x 4.016" W (152.00mm x 102.00mm) | 4.016" (102.00mm) | 24.0in² (155cm²) | Cover Included | Metal, Stainless Steel | Natural | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 3R,4,4X,12,13, UL-508A | - |
|
NBF-32246BOX ABS/PC 27.55"L X 19.68"W |
1 |
|
规格书 |
NBF | Bulk | Active | Box | 27.550" L x 19.680" W (699.77mm x 499.87mm) | 9.840" (249.94mm) | 542in² (3497cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray, Clear Cover/Door | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
NSYS3DC10625ENCLOSURE STL 39.37"L X 23.62"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 39.370" L x 23.622" W (1000.00mm x 600.00mm) | 9.843" (250.00mm) | 930in² (6000cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66, NEMA 4X,13 | - |
|
|
A24N24ALPBOX STEEL GRAY 24.02"L X 24.02"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 24.016" L x 24.016" W (610.00mm x 610.00mm) | 6.614" (168.00mm) | 576in² (3716cm²) | Hinged Door, Lid | Metal, Steel | Gray | 12 Gauge | Mounting Flange, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|
|
NSYS3X4320ENCLOSURE S STL 15.75"LX11.81"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 15.748" L x 11.811" W (400.00mm x 300.00mm) | 7.874" (200.00mm) | 186in² (1200cm²) | Cover Included | Metal, Stainless Steel | Gray | - | - | IP66 | - |
|

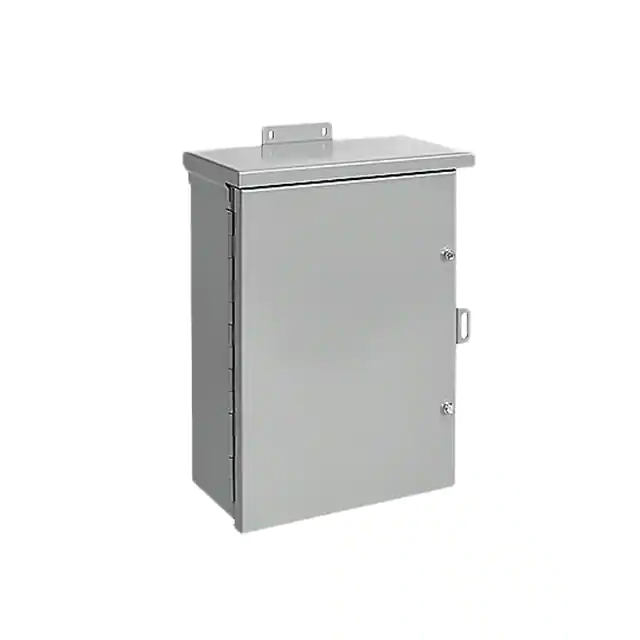

A20R208HCRBOX STEEL GRAY 20"L X 20"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 20.000" L x 20.000" W (508.00mm x 508.00mm) | 7.992" (203.00mm) | 400in² (2581cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Mounting Flange, Wall Mount | IP32, NEMA 3R, UL-50, 50E | - |
|
|
A24N20ALPBOX STEEL GRAY 24.02"L X 20"W |
0 |
|
规格书 |
- | Bulk | Active | Box | 24.016" L x 20.000" W (610.00mm x 508.00mm) | 6.614" (168.00mm) | 480in² (3097cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Mounting Flange, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|

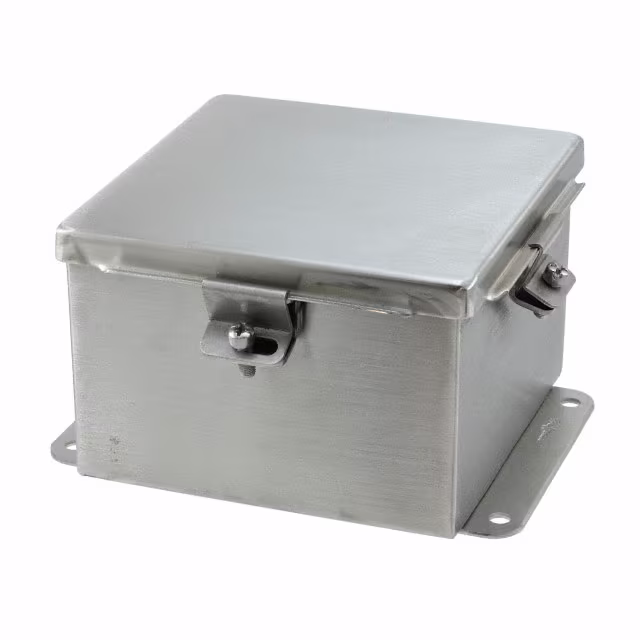

A606NFSSJUNCTION BOX S STL 5.98"LX5.98"W |
0 |
|
规格书 |
- | Bulk | Active | Junction Box | 5.984" L x 5.984" W (152.00mm x 152.00mm) | 4.016" (102.00mm) | 35.8in² (231cm²) | Cover Included | Metal, Stainless Steel | Natural | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 3R,4,4X,12,13, UL-508A | - |
|
A6044CHNFSSJUNCTION BOX S STL 5.98"LX4.02"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 5.984" L x 4.016" W (152.00mm x 102.00mm) | 4.016" (102.00mm) | 24.0in² (155cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 16 Gauge | Sealing Gasket, Stainless Steel Hinge, Wall Mount | IP66, NEMA 3R,4,4X,12,13, UL-508A | - |
|
|
NSYS3DC10830ENCLOSURE STL 39.37"L X 31.5"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 39.370" L x 31.496" W (1000.00mm x 800.00mm) | 11.811" (300.00mm) | 1240in² (8000cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66, NEMA 4X,13 | - |
|

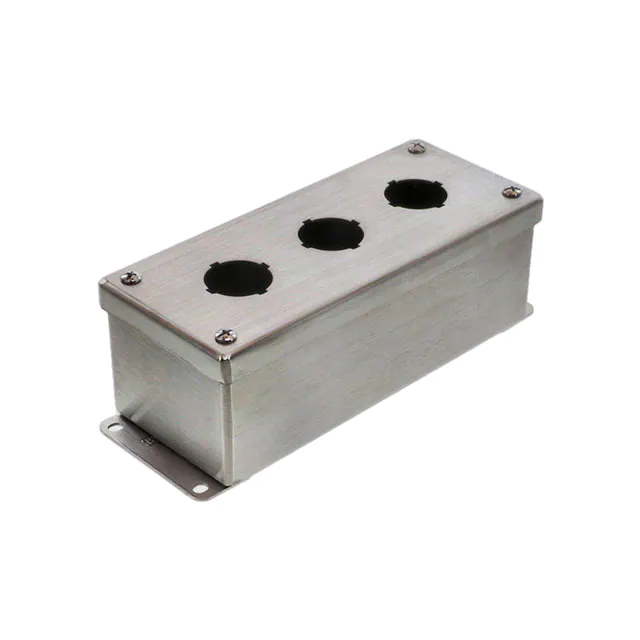

E3PBSSBOX STEEL NAT 7.99"L X 3.27"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 7.992" L x 3.268" W (203.00mm x 83.00mm) | 2.756" (70.00mm) | 26.0in² (168cm²) | Cover Included | Metal, Steel | Natural | 14 Gauge | Mounting Flange, Pushbutton Holes - 3 | IP66, NEMA 4,4X,12,13, UL-508A | - |
|
|
NSYS3X4420ENCLOSURE S STL 15.75"LX15.75"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 15.748" L x 15.748" W (400.00mm x 400.00mm) | 7.874" (200.00mm) | 248in² (1600cm²) | Cover Included | Metal, Stainless Steel | Gray | - | - | IP66 | - |
|
G201608ENCLOSURE PLAS 24.17"L X 18.99"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 24.170" L x 18.990" W (613.92mm x 482.35mm) | 9.440" (239.78mm) | 459in² (2961cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | - | - | IP66, IP68, NEMA 4X, NEMA 6P | UL94 V-0 |
|

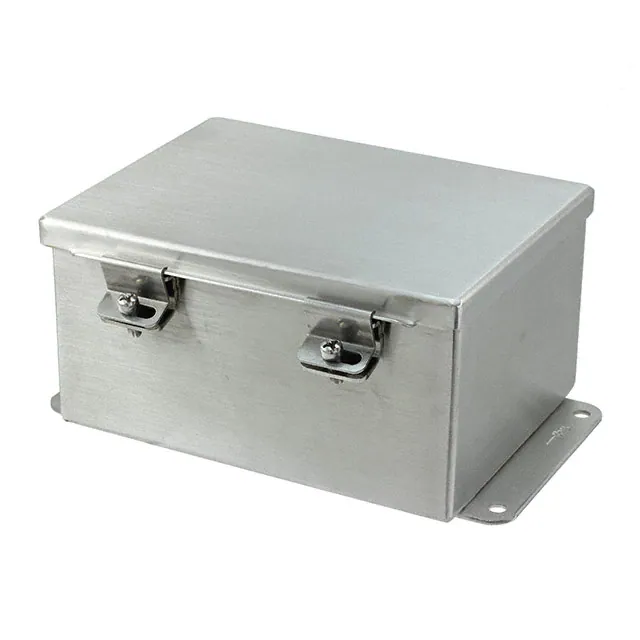

A8064NFSSJUNCTION BOX S STL 7.99"LX5.98"W |
0 |
|
规格书 |
- | Bulk | Active | Junction Box | 7.992" L x 5.984" W (203.00mm x 152.00mm) | 4.016" (102.00mm) | 47.7in² (308cm²) | Cover Included | Metal, Stainless Steel | Natural | 14 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 3R,4,4X,12,13, UL-508A | - |
|

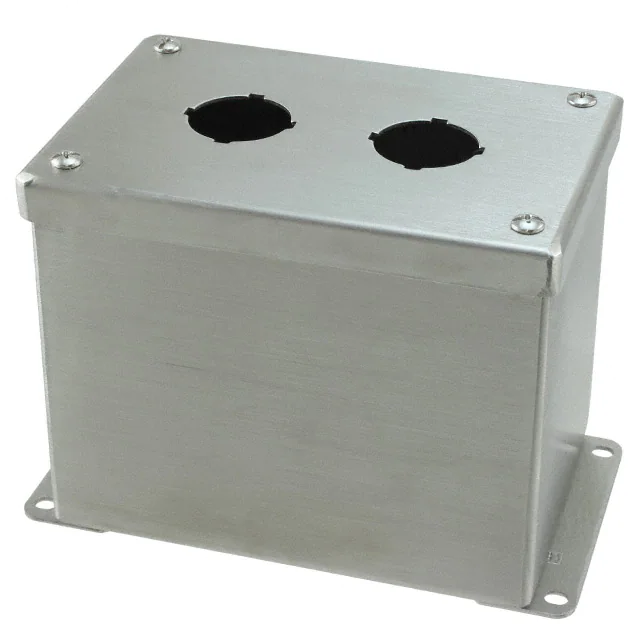

E2PBXSSBOX S STL NAT 5.98"L X 4.02"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 5.984" L x 4.016" W (152.00mm x 102.00mm) | 4.764" (121.00mm) | 24.0in² (155cm²) | Cover Included | Metal, Stainless Steel | Natural | 14 Gauge | Mounting Flange, Pushbutton Holes - 2 | IP66, NEMA 4,4X,12,13, UL-508A | - |
