上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPS 7-17-14-BLUE/WHITECABINET ALUM 16.75"L X 13.88"W |
0 |
|
- |
Uni-Pac | Bulk | Active | Cabinet | 16.750" L x 13.875" W (425.45mm x 352.43mm) | 6.813" (173.05mm) | 232in² (1497cm²) | End Panel(s) | Metal, Aluminum | Blue, White | 0.063" (1.60mm) | Separate Panel or Cover Thickness | - | - |
|
A10106CHFLJUNCTION BOX STL GRY 10"L X 10"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 10.000" L x 10.000" W (254.00mm x 254.00mm) | 5.984" (152.00mm) | 100in² (645cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Latches, Sealing Gasket, Wall Mount | IP66, NEMA 4,12, UL-508A | - |
|

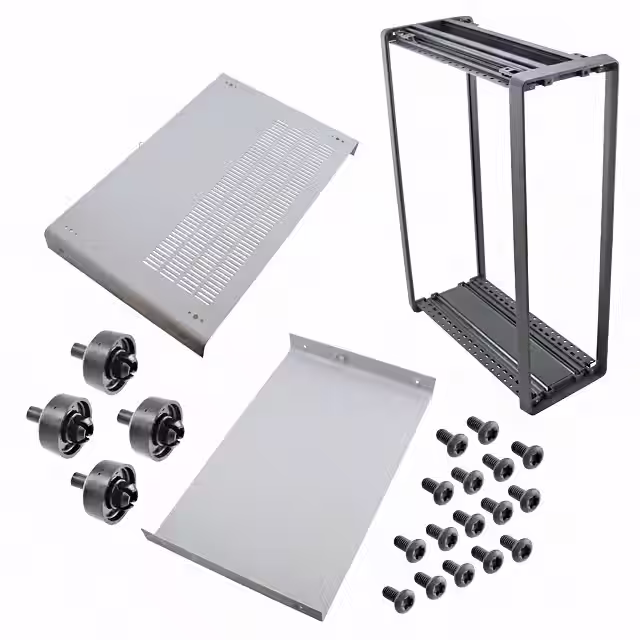

14575165CASE ALUM GRAY 18.54"L X 13.03"W |
1 |
|
规格书 |
compacPRO | Box | Active | Case | 18.543" L x 13.031" W (471.00mm x 331.00mm) | 5.791" (147.10mm) | 242in² (1561cm²) | Split Sides | Metal, Aluminum | Gray | 0.059" (1.50mm) | Vented | - | - |
|
TR-6101CABINET ALUM 13.25"L X 8.31"W |
1 |
|
规格书 |
TR | Bulk | Active | Cabinet | 13.250" L x 8.312" W (336.55mm x 211.12mm) | 5.250" (133.35mm) | 110in² (710cm²) | Split Sides and End Panel(s) | Metal, Aluminum | Blue, White | 0.050" (1.27mm) | Separate Panel or Cover Thickness, Handle | - | - |
|
|
A1210CHFLJUNCTION BOX STL 12.01"L X 10"W |
0 |
|
规格书 |
- | Bulk | Active | Junction Box | 12.008" L x 10.000" W (305.00mm x 254.00mm) | 5.000" (127.00mm) | 120in² (774cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Latches, Sealing Gasket, Wall Mount | IP66, NEMA 4,12, UL-508A | - |
|
738-414BOX PC GRAY 17.72"L X 11.81"W |
1 |
|
规格书 |
AK | Bulk | Active | Box | 17.720" L x 11.810" W (450.09mm x 299.97mm) | 5.590" (141.99mm) | 209in² (1348cm²) | Cover Included, Hand Held | Plastic, Polycarbonate (PC) | Gray | - | Window | IP65 | - |
|
0936040042BOX ALUM GRAY 16.02"L X 12.32"W |
0 |
|
规格书 |
GWconnect 93604 | Bulk | Active | Box | 16.024" L x 12.323" W (407.00mm x 313.00mm) | 6.181" (157.00mm) | 197in² (1271cm²) | Cover Included | Metal, Aluminum | Gray | 0.295" (7.50mm) | Mounting Flange, PCB Supports | IP66, IP69 | - |
|
1420E7BOX STEEL GRAY 24"L X 20"W |
1 |
|
规格书 |
1420 | Box | Active | Box | 24.000" L x 20.000" W (609.60mm x 508.00mm) | 7.000" (177.80mm) | 480in² (3097cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Interior Panels | IP20, NEMA 1, UL-508 | - |
|
|
A1212CHFLJUNCTION BOX STEEL 12"L X 12"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 12.008" L x 12.008" W (305.00mm x 305.00mm) | 5.984" (152.00mm) | 144in² (929cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Latches, Sealing Gasket, Wall Mount | IP66, NEMA 4,12, UL-508A | - |
|

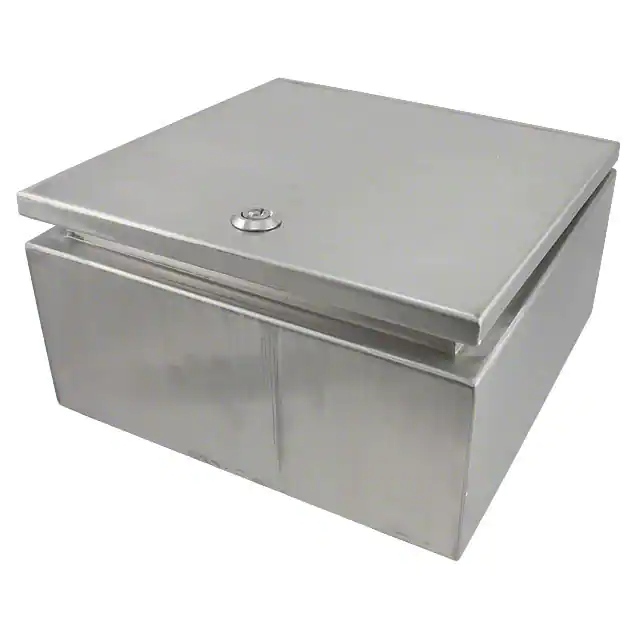

SNB-3733-SSBOX S STL NAT 11.81"L X 11.81"W |
1 |
|
规格书 |
SNB | Bulk | Active | Box | 11.810" L x 11.810" W (299.97mm x 299.97mm) | 5.910" (150.11mm) | 139in² (897cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 14 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
NSYS3X302515ENCLOSURE S STL 11.81"L X 9.84"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 11.811" L x 9.843" W (300.00mm x 250.00mm) | 5.906" (150.00mm) | 116in² (748cm²) | Cover Included | Metal, Stainless Steel | Gray | - | - | IP66 | - |
|
|
NSYCRN68300ENCLOSURE STL 23.62"L X 31.5"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 23.622" L x 31.496" W (600.00mm x 800.00mm) | 9.843" (250.00mm) | 744in² (4800cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66 | - |
|
|
NSYS3DC8625ENCLOSURE STL 31.5"L X 23.62"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 31.496" L x 23.622" W (800.00mm x 600.00mm) | 9.843" (250.00mm) | 744in² (4800cm²) | Cover Included | Metal, Steel | Gray | - | - | IP66, NEMA 4X,13 | - |
|

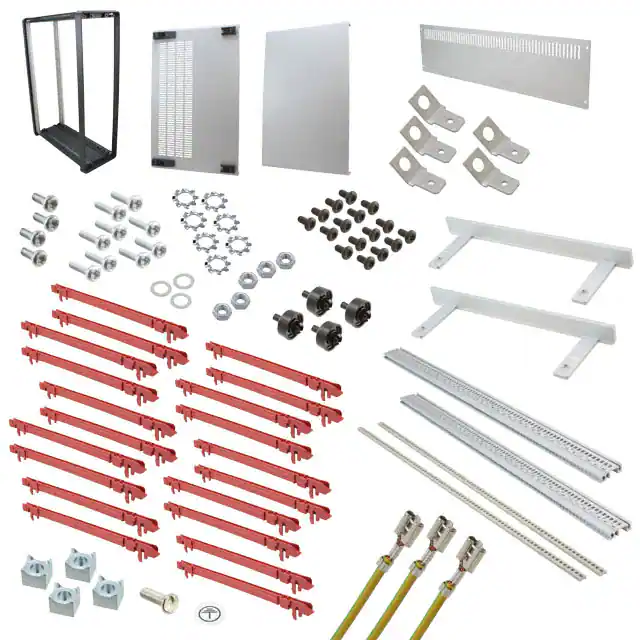

14575175CASE ALUM GRAY 18.54"L X 13.03"W |
1 |
|
规格书 |
compacPRO | Box | Active | Case | 18.543" L x 13.031" W (471.00mm x 331.00mm) | 5.791" (147.10mm) | 242in² (1561cm²) | Split Sides and End Panel(s) | Metal, Aluminum | Gray | 0.059" (1.50mm) | Vented Panels | - | - |
|
TC-302-RBCABINET ALUM BLUE 13"L X 9"W |
1 |
|
规格书 |
Transicase | Bulk | Active | Cabinet | 13.000" L x 9.000" W (330.20mm x 228.60mm) | 7.500" (190.50mm) | 117in² (755cm²) | Hinged Door, Lid | Metal, Aluminum | Blue | 0.040" (1.02mm) | Separate Panel or Cover Thickness, Handle | - | - |
|

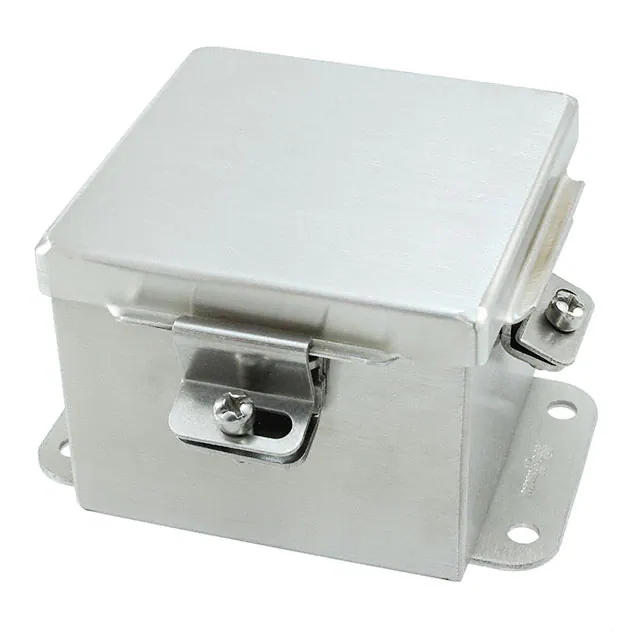

A404NFSSJUNCTION BOX S STL 4.02"LX4.02"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 4.016" L x 4.016" W (102.00mm x 102.00mm) | 2.992" (76.00mm) | 16.1in² (104cm²) | Cover Included | Metal, Stainless Steel | Natural | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 3R,4,4X,12,13, UL-508A | - |
|
A1614CHQRJUNCTION BOX STEEL 16"L X 14"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 15.984" L x 14.016" W (406.00mm x 356.00mm) | 5.984" (152.00mm) | 224in² (1445cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|
|
NSYS3X3315ENCLOSURE S STL 11.81"LX11.81"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 11.811" L x 11.811" W (300.00mm x 300.00mm) | 5.906" (150.00mm) | 140in² (900cm²) | Cover Included | Metal, Stainless Steel | Gray | - | - | IP66 | - |
|
BWA-AH14126ENCLOSURE PC 14"L X 12"W |
1 |
|
规格书 |
BWA | Box | Active | Enclosure | 14.000" L x 12.000" W (355.60mm x 304.80mm) | 6.000" (152.40mm) | 168in² (1084cm²) | Cover Included | Plastic, Polycarbonate (PC) | - | - | - | - | - |
|

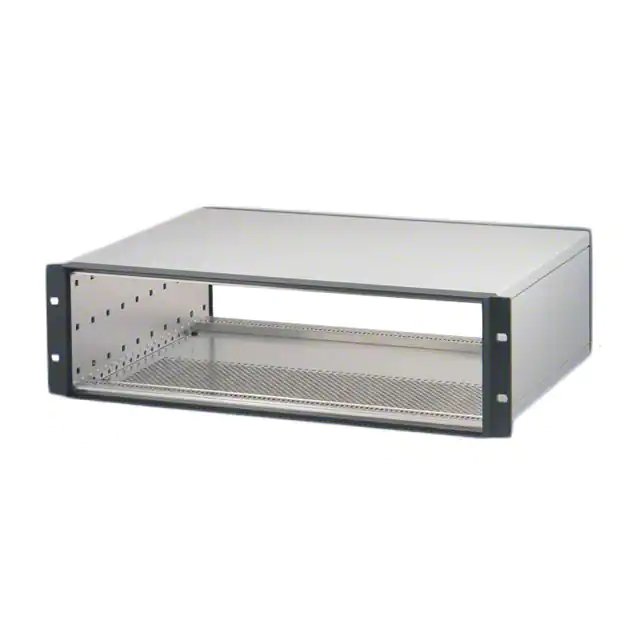

24571043CASE ALUM NAT 17.15"L X 17.67"W |
1 |
|
规格书 |
ratiopacPRO | Box | Active | Case | 17.146" L x 17.673" W (435.50mm x 448.90mm) | 5.250" (133.35mm) | 303in² (1955cm²) | Split Sides and End Panel(s) | Metal, Aluminum | Natural | 0.039" (1.00mm) | - | - | - |
