上传BOM
交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSP065-P24-A54AC/DC CONVERTER 54V 65W |
780 |
|
规格书 |
FSP065-P24 A (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 1.2 A | - | - | - | - | - | 65W | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) |
|
FSP065-P24-A24AC/DC CONVERTER 24V 65W |
587 |
|
规格书 |
FSP065-P24 A (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) |
|
RPS-45-24AC/DC CONVERTER 24V 46W |
1,481 |
|
规格书 |
RPS-45 (45W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 46W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) |
|
GB40S09K01AC/DC CONVERTER 9V 36W |
301 |
|
规格书 |
GB40S (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 9V | - | - | - | - | - | 4 A | - | - | - | - | - | 36W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 1.90" W x 1.00" H (101.6mm x 48.3mm x 25.4mm) |
|
EPS-35-15AC/DC CONVERTER 15V 36W |
115 |
|
规格书 |
EPS-35 (35W) | Tray | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) |
|
PD-45BAC/DC CONVERTER 5V 24V 45W |
740 |
|
规格书 |
PD-45 (45W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | - | - | - | - | 3.2 A | 1.2 A | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) |
|
|
GB30S09K01AC/DC CONVERTER 9V 27W |
195 |
|
规格书 |
GB30S (30W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 9V | - | - | - | - | - | 3 A | - | - | - | - | - | 27W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 1.90" W x 1.00" H (101.6mm x 48.3mm x 25.4mm) |
|
|
GB30S24K01AC/DC CONVERTER 24V 32W |
192 |
|
规格书 |
GB30S (30W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.33 A | - | - | - | - | - | 32W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 1.90" W x 1.00" H (101.6mm x 48.3mm x 25.4mm) |
|
|
GB30S05K01AC/DC CONVERTER 5V 20W |
0 |
|
规格书 |
GB30S (30W) | Bulk | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 4 A | - | - | - | - | - | 20W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 1.90" W x 1.00" H (101.6mm x 48.3mm x 25.4mm) |
|
OPS2X4-60-12-A-1-CUAC/DC CONVERTER 12V 60W |
240 |
|
规格书 |
OPS2X4-60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm) |
|
EPS-65-7.5AC/DC CONVERTER 7.5V 60W |
454 |
|
规格书 |
EPS-65 (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 7.5V | - | - | - | - | - | 8 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
RS-35-15AC/DC CONVERTER 15V 36W |
153 |
|
规格书 |
RS-35 (35W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 373 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) |
|
|
EPS-65-48AC/DC CONVERTER 48V 65W |
157 |
|
规格书 |
EPS-65 (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
RPS-60-48AC/DC CONVERTER 48V 60W |
588 |
|
规格书 |
RPS-60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
EPS-65S-7.5AC/DC CONVERTER 7.5V 60W |
168 |
|
规格书 |
EPS-65S (65W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 7.5V | - | - | - | - | - | 8 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) |
|
LS35-36AC/DC CONVERTER 36V 35W |
41 |
|
规格书 |
LS (35W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 36V | - | - | - | - | - | 1 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.20" W x 1.40" H (99.1mm x 81.3mm x 35.6mm) |
|

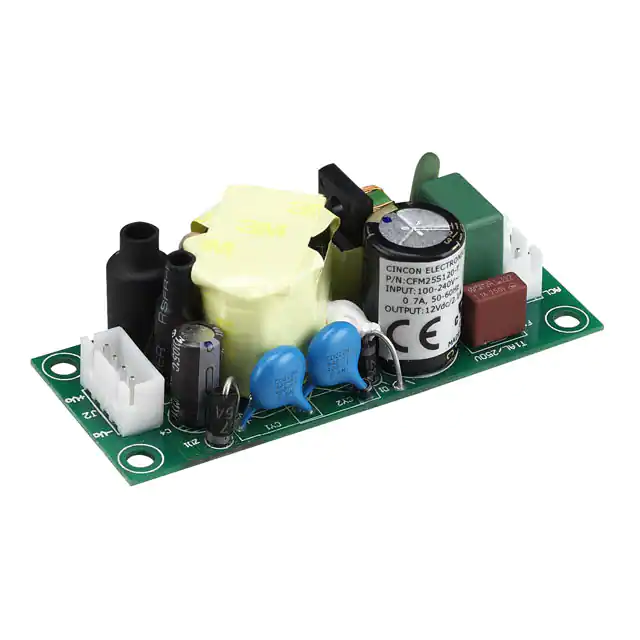

CFM25S120-TAC/DC CONVERTER 12V 25W |
154 |
|
规格书 |
CFM25S (25W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) |
|
PJ-5V15WBNAAC/DC CONVERTER 5V 15W |
921 |
|
规格书 |
PJ (15W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.5mm x 50.0mm x 22.0mm) |
|
FSP065-P35-A05AC/DC CONVERTER 5V 65W |
401 |
|
规格书 |
FSP065-P35 A (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 13 A | - | - | - | - | - | 65W | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 27.0mm) |
|
|
FSP065-P35-A24AC/DC CONVERTER 24V 65W |
157 |
|
规格书 |
FSP065-P35 A (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 27.0mm) |
