交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RWS50B-5AC/DC CONVERTER 5V 50W |
306 |
|
规格书 |
RWS-B (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.20" L x 3.23" W x 1.34" H (81.5mm x 82.0mm x 34.0mm) |
|
RWS50B-12AC/DC CONVERTER 12V 50W |
261 |
|
规格书 |
RWS-B (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.20" L x 3.23" W x 1.34" H (81.5mm x 82.0mm x 34.0mm) |
|
EPP-100-12AC/DC CONVERTER 12V 76W |
418 |
|
规格书 |
EPP-100 (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 76W (102W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
LFA30F-12-SNAC/DC CONVERTER 12V 30W |
300 |
|
规格书 |
LFA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|
ECS45US15AC/DC CONVERTER 15V 45W |
236 |
|
规格书 |
ECS (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|

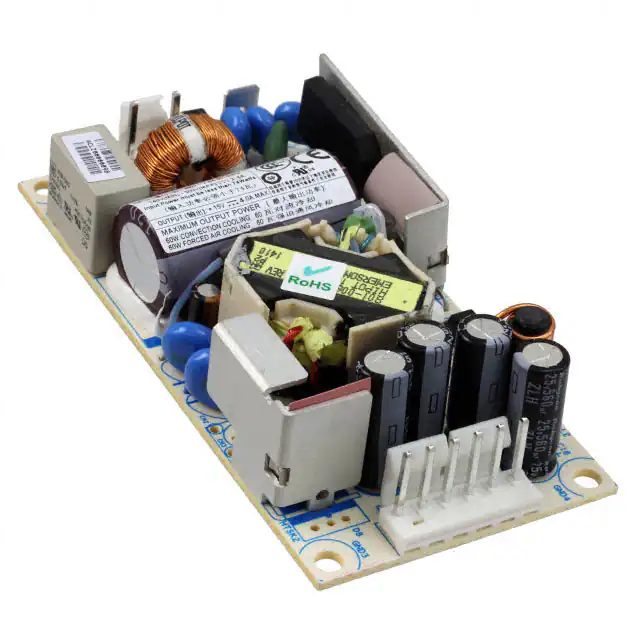

NPS64-MAC/DC CONVERTER 15V 60W |
1,219 |
|
规格书 |
NPS60-M (60W) | Tray | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 0°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.1mm) |
|
FSP150-P24-A19AC/DC CONVERTER 19V 100W |
153 |
|
规格书 |
FSP150-P24 A (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 5.26 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
|
FSP150-P24-A12AC/DC CONVERTER 12V 100W |
117 |
|
规格书 |
FSP150-P24 A (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.35 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
ZWS30B-12AC/DC CONVERTER 12V 30W |
403 |
|
规格书 |
ZWS30B (30W) | Tray | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.1mm x 25.9mm) |
|
|
LFA30F-24AC/DC CONVERTER 24V 30W |
121 |
|
规格书 |
LFA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 30W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|
PMC-12V150W1BAAC/DC CONVERTER 12V 150W |
279 |
|
规格书 |
PMC (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm) |
|

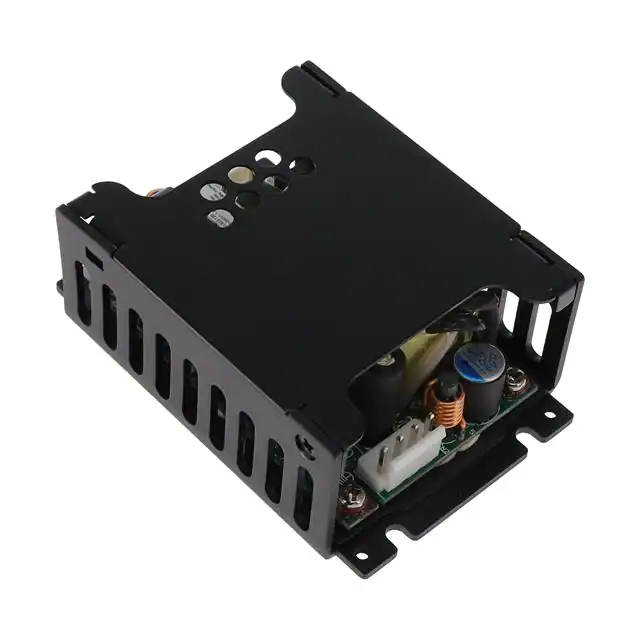

CFM130S120-CAC/DC CONVERTER 12V 100W |
134 |
|
规格书 |
CFM130S (130W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 100W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|
CUT35-522AC/DC CONVERTER 5V +/-12V 35W |
108 |
|
规格书 |
CUT35 (35W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 850 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.06" H (101.6mm x 50.8mm x 27.0mm) |
|
FSP200-P35-A54AC/DC CONVERTER 54V 150W |
689 |
|
规格书 |
FSP200-P35 A (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 2.78 A | - | - | - | - | - | 150W (200W Forced Air) | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.10" H (127.0mm x 76.2mm x 28.0mm) |
|
|
FSP200-P35-A12AC/DC CONVERTER 12V 150W |
644 |
|
规格书 |
FSP200-P35 A (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (200W Forced Air) | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.10" H (127.0mm x 76.2mm x 28.0mm) |
|
HWS15A-3/AAC/DC CONVERTER 3.3V 15W |
206 |
|
规格书 |
HWS-A (15W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.15" L x 1.24" W x 3.23" H (80.0mm x 31.5mm x 82.0mm) |
|

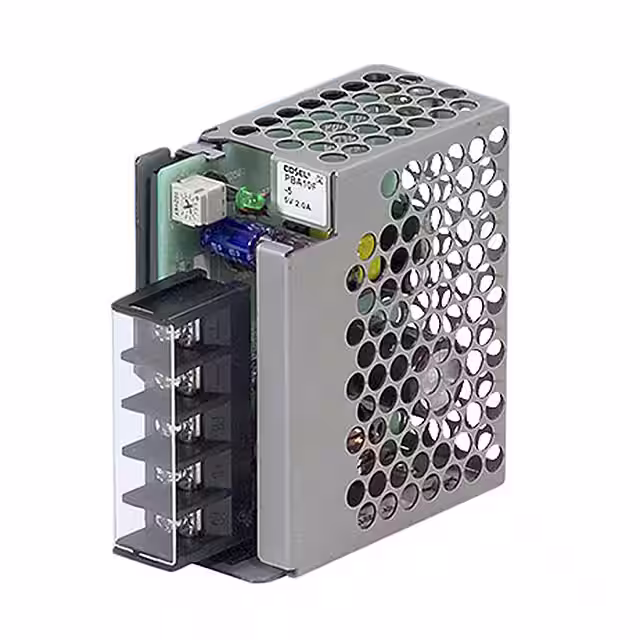

PBA10F-5-NAC/DC CONVERTER 5V 10W |
407 |
|
规格书 |
PBA (10W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
CFM60T-01AC/DC CONVERTER 5V +/-12V 62W |
112 |
|
规格书 |
CFM40T (60W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 4 A | 3 A | 500 mA | - | - | - | 62W | ITE (Commercial) | 4.242 kV | 0°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
CUS60M-24/AAC/DC CONVERTER 24V 60W |
251 |
|
规格书 |
CUS60M (60W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.48" L x 2.52" W x 1.59" H (88.4mm x 64.0mm x 40.5mm) |
|
|
LFA30F-24-SNYAC/DC CONVERTER 24V |
118 |
|
规格书 |
LFA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 4.13" L x 1.97" W x 1.04" H (104.9mm x 50.0mm x 26.4mm) |
