交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAC02-3.3SE/277/WAC/DC CONVERTER 3.3V 2W |
470 |
|
规格书 |
POWERLINE RAC02-SE/277/W (2W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC | 3.3V | - | - | - | - | - | 600 mA | - | - | - | - | - | 2W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 1.33" L x 0.96" W x 0.70" H (33.7mm x 24.4mm x 17.8mm) |
|

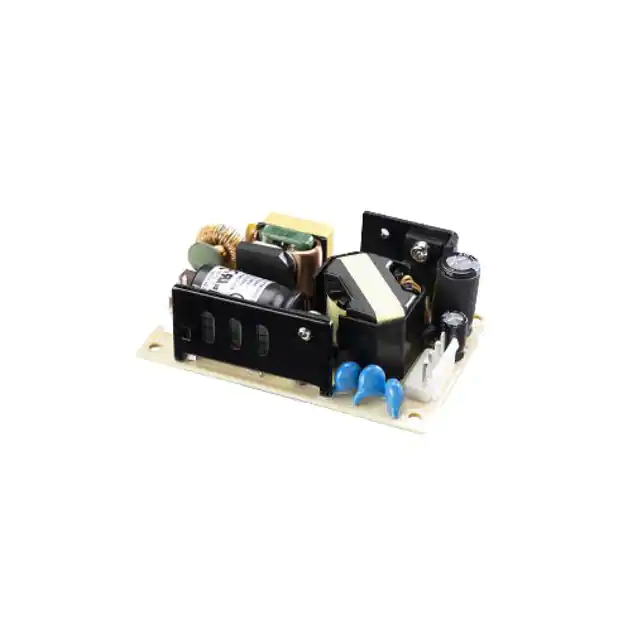

CFM70S360-CAAC/DC CONVERTER 36V 70W |
118 |
|
规格书 |
CFM70S (70W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 1.94 A | - | - | - | - | - | 70W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 3.20" L x 2.44" W x 1.58" H (81.3mm x 62.0mm x 40.0mm) |
|
PMT-5V50W1AAAC/DC CONVERTER 5V 50W |
105 |
|
规格书 |
PMT (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) |
|
RAC03-05SE/277/WAC/DC CONVERTER 5V 3W |
113 |
|
规格书 |
POWERLINE RAC03-E/277/W (3W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC | 5V | - | - | - | - | - | 600 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 1.50" L x 0.96" W x 0.69" H (38.1mm x 24.3mm x 17.4mm) |
|
SCP-50-24AC/DC CONVERTER 27.6V 50W |
241 |
|
规格书 |
SCP-50 (50W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27.6V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

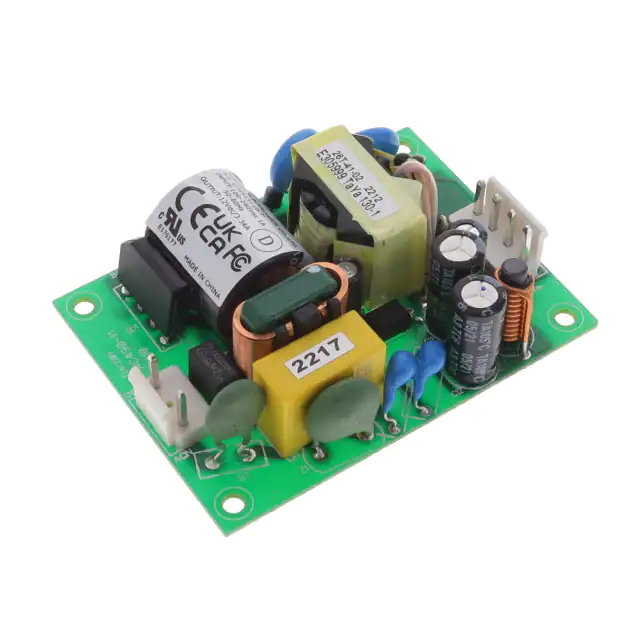

CFM41S120-TAC/DC CONVERTER 12V 40W |
287 |
|
规格书 |
CFM41S (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 2.70" L x 2.00" W x 0.78" H (68.6mm x 50.8mm x 19.7mm) |
|
|
RAC03-12SE/277/WAC/DC CONVERTER 12V 3W |
115 |
|
规格书 |
POWERLINE RAC03-E/277/W (3W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC | 12V | - | - | - | - | - | 250 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 1.50" L x 0.96" W x 0.69" H (38.1mm x 24.3mm x 17.4mm) |
|

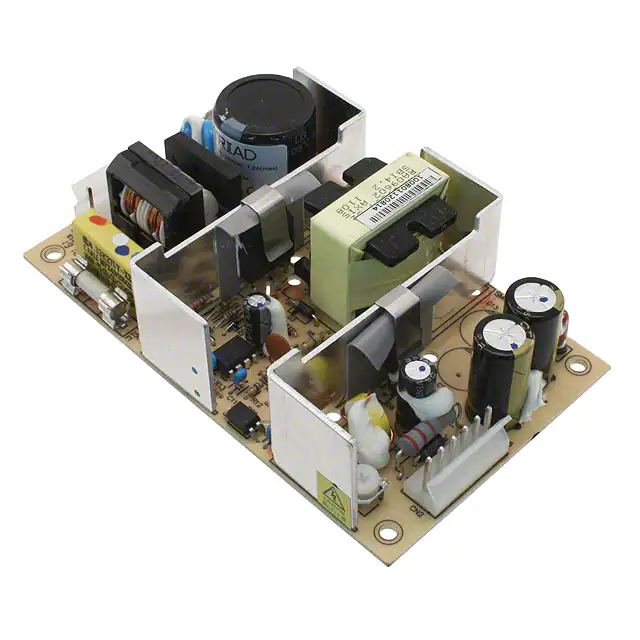

ALS50-24AC/DC CONVERTER 24V 50W |
230 |
|
规格书 |
ALS50 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
RS-100-15AC/DC CONVERTER 15V 105W |
10 |
|
规格书 |
RS-100 (100W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 373 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) |
|
CUS30M-12AC/DC CONVERTER 12V 30W |
298 |
|
规格书 |
CUS30M (30W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote Sense | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) |
|
SCP-75-12AC/DC CONVERTER 13.8V 75W |
187 |
|
规格书 |
SCP-75 (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 13.8V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) |
|
CFM40S090AC/DC CONVERTER 9V 40W |
182 |
|
规格书 |
CFM40S (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 4.45 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|

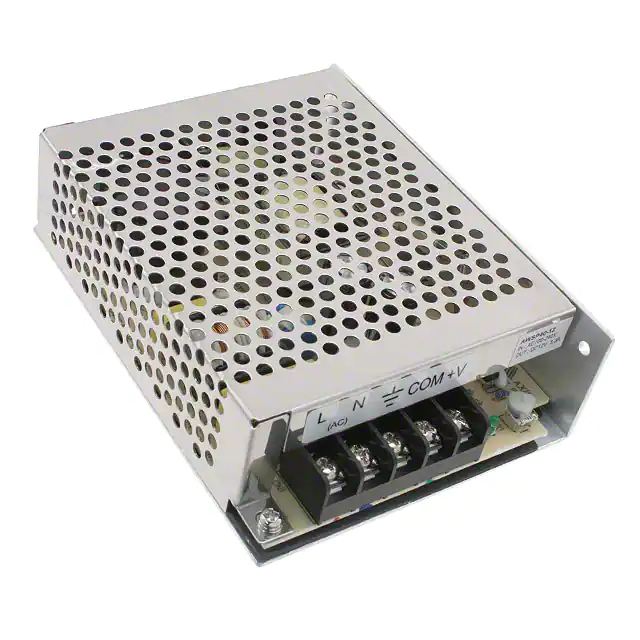

AWSP40-12AC/DC CONVERTER 12V 40W |
128 |
|
规格书 |
AWSP40 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|
RAC03-12SER/277AC/DC CONVERTER 12V 3W |
167 |
|
规格书 |
POWERLINE RAC03-SER/277 (3W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 12V | - | - | - | - | - | 250 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 1.98" L x 1.98" W x 0.43" H (50.3mm x 50.3mm x 11.0mm) |
|
LS75-48AC/DC CONVERTER 48V 75W |
574 |
|
规格书 |
LS (75W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm) |
|
RPT-65GAC/DC CONVERTER 24V 5V 12V 66W |
115 |
|
规格书 |
RPT-65 (65W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | 5V | 12V | - | - | - | 2.25 A | 1.2 A | 500 mA | - | - | - | 66W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.14" H (127.0mm x 76.0mm x 29.0mm) |
|
VMS-40-5AC/DC CONVERTER 5V 40W |
123 |
|
规格书 |
VMS-40 (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 40W | Medical | 5.656 kV | 0°C ~ 70°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) |
|
NPS23-MAC/DC CONVERTER 12V 25W |
321 |
|
规格书 |
NPS20-M (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 25W (40W Forced Air) | ITE (Commercial), Medical | - | 0°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 21.8mm) |
|

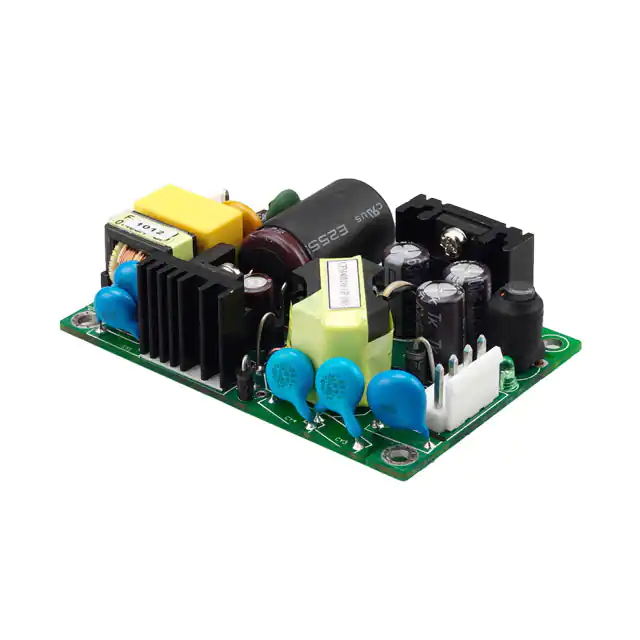

CFM40M090AC/DC CONVERTER 9V 40W |
138 |
|
规格书 |
CFM40M (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 4.45 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) |
|
PMH-24V100WCLSAC/DC CONVERTER 24V 108W |
154 |
|
规格书 |
PMH (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
