交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HWS150A-5/AAC/DC CONVERTER 5V 150W |
114 |
|
规格书 |
HWS-A (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 1.65" W x 3.23" H (160.0mm x 41.9mm x 82.0mm) |
|
HWS150A-48/AAC/DC CONVERTER 48V 150W |
103 |
|
规格书 |
HWS-A (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 1.65" W x 3.23" H (160.0mm x 41.9mm x 82.0mm) |
|
|
HWS150A-15/AAC/DC CONVERTER 15V 150W |
46 |
|
规格书 |
HWS-A (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 1.65" W x 3.23" H (160.0mm x 41.9mm x 82.0mm) |
|
HRPG-600-24AC/DC CONVERTER 24V 648W |
55 |
|
规格书 |
HRPG-600 (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 648W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) |
|
HRP-450-12AC/DC CONVERTER 12V 450W |
70 |
|
规格书 |
HRP-450 (450W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) |
|
PSP-600-27AC/DC CONVERTER 27V 599W |
29 |
|
规格书 |
PSP-600 (600W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 27V | - | - | - | - | - | 22.2 A | - | - | - | - | - | 599W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.69" L x 4.72" W x 3.66" H (170.0mm x 120.0mm x 93.0mm) |
|
GCS350PS12AC/DC CONVERTER 12V 200W |
295 |
|
规格书 |
GCS (350W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C | 80 Plus® Bronze, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
TPI 300-124-MAC/DC CONVERTER 24V 300W |
39 |
|
规格书 |
TPI 300-M (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 2.32" H (116.8mm x 62.0mm x 58.9mm) |
|
HRP-600-7.5AC/DC CONVERTER 7.5V 600W |
112 |
|
规格书 |
HRP-600 (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 7.5V | - | - | - | - | - | 80 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) |
|
|
TPI 300-112-MAC/DC CONVERTER 12V 300W |
40 |
|
规格书 |
TPI 300-M (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 2.32" H (116.8mm x 62.0mm x 58.9mm) |
|
GMA300F-24AC/DC CONVERTER 24V 300W |
59 |
|
规格书 |
GMA (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) |
|
PLA600F-24AC/DC CONVERTER 24V 600W |
137 |
|
规格书 |
PLA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|
PJA600F-24AC/DC CONVERTER 24V 600W |
96 |
|
规格书 |
PJA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
|
ECM100UQ44AC/DC CNVRTR 5V 24V +/-15V 80W |
322 |
|
规格书 |
ECM (100W) | Box | Active | Open Frame | 4 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | 15V | -15V | - | - | 10 A | 2 A | 800 mA | 500 mA | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
TPP 300-148-MAC/DC CONVERTER 48V 300W |
41 |
|
规格书 |
TPP 300-M (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 2.32" H (116.8mm x 62.0mm x 58.9mm) |
|
|
TPP 300-124-MAC/DC CONVERTER 24V 300W |
28 |
|
规格书 |
TPP 300-M (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 2.32" H (116.8mm x 62.0mm x 58.9mm) |
|

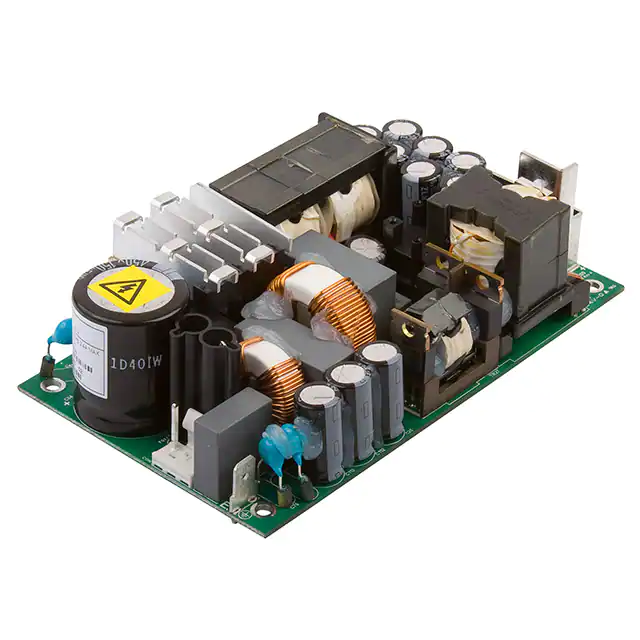

CCB200PS24AC/DC CONVERTER 24V 199W |
252 |
|
规格书 |
CCB200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 199W | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
|
CCB200PS48AC/DC CONVERTER 48V 202W |
250 |
|
规格书 |
CCB200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
IMA-S400-24-ZNPLIAC/DC CONVERTER 24V 400W |
101 |
|
规格书 |
IMA-400 (400W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC, 120 ~ 300 VDC | 24V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.96" L x 4.00" W x 1.60" H (176.8mm x 101.6mm x 40.6mm) |
|
ABC400-1024GAC/DC CONVERTER 24V 400W |
142 |
|
规格书 |
ABC400 (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 17 A | - | - | - | - | - | 400W | ITE (Commercial) | 4.242 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
