射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FXP831.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited |
391 |
|
- |
Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2.5 | - | 3dBi, 5.5dBi | 2 W | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
|
TG.31.81135G/4G TERMINAL MOUNT Taoglas Limited |
355 |
|
规格书 |
- | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | -1.9dBi, 1.2dBi, 0.8dBi, -1.2dBi, 4.6dBi, 4.2dBi, 3.2dBi, 4.4dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 8.295" (210.70mm) | 2G, 3G, 4G, 5G, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
FXUB66.54.0150CMAXIMUS ULTRA WIDE BAND FLEX ANT Taoglas Limited |
213 |
|
规格书 |
Maximus | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz | Flat Patch | 9 | 1.1, 2, 2.2, 3, 3.5 | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
|

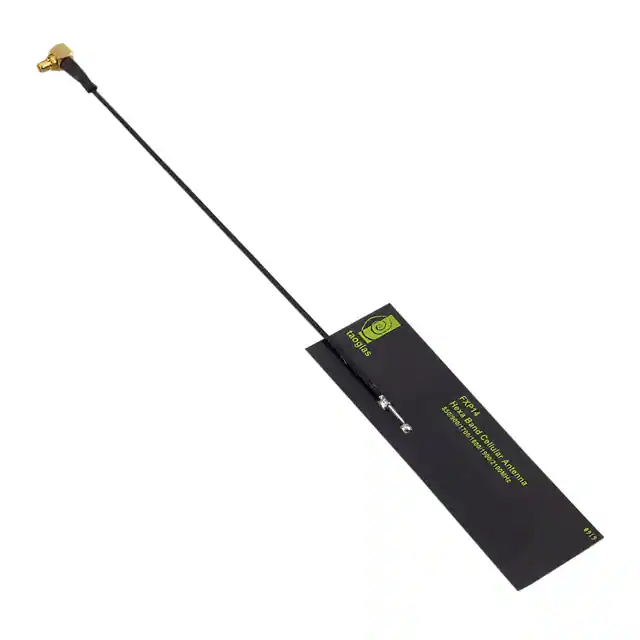

FXP14.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH Taoglas Limited |
152 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|

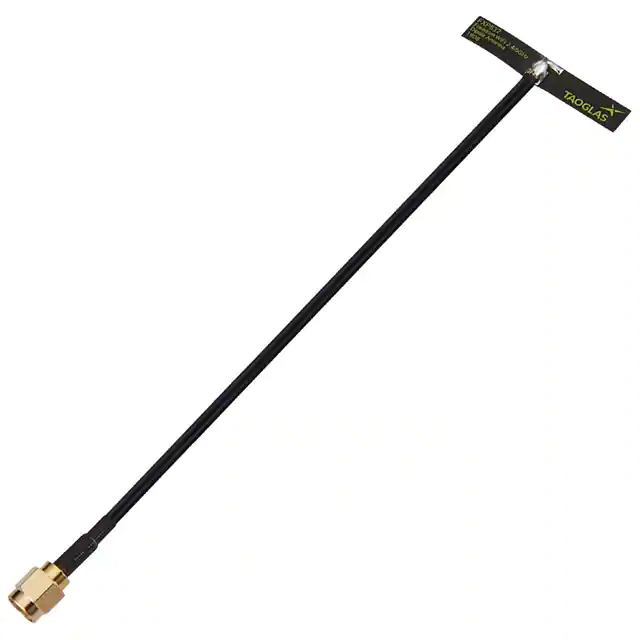

FXP832.03.0458DRF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited |
3,339 |
|
规格书 |
Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | - | -10dB | 3.66dBi, 5.33dBi | 2 W | Cable - 458mm | RP-SMA Male | - | - | - | Adhesive | 0.009" (0.24mm) | Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™ |
|
TI.09.A.0111RF ANT 915MHZ WHIP STR SMA MALE Taoglas Limited |
242 |
|
规格书 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.8 | - | 4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | - |
|
TI.10.0112RF ANT 433MHZ WHIP RA SMA MALE Taoglas Limited |
137 |
|
规格书 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Right Angle | 1 | 1.5 | -20dB | 0dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | - |
|

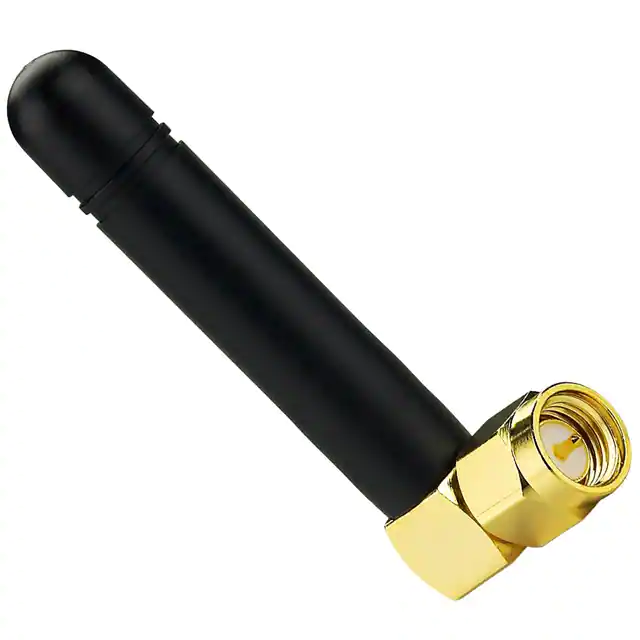

TG.22.0112RF ANT 850MHZ/900MHZ WHIP RA Taoglas Limited |
133 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 5 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMS, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS |
|
|
TI.42.A113433MHZ TERMINAL MOUNT ANTENNA WI Taoglas Limited |
115 |
|
规格书 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 417MHz, 460MHz | 400MHz ~ 435MHz, 450MHz ~ 470MHz | Whip, Right Angle | 2 | - | - | 3.7dBi, 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | General Purpose |
|
DSGP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH SLD Taoglas Limited |
252 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2:1 | -10dB | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GPS |
