射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

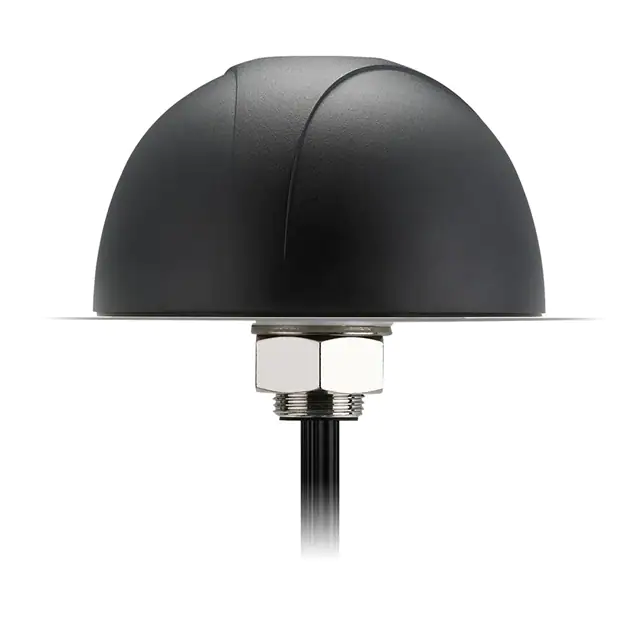

MA760.A.ABIC.003RF ANT DOME SMA MALE PANEL MT Taoglas Limited |
193 |
|
规格书 |
Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | - | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.7GHz ~ 5.9GHz | Dome | 5 | 3, 1.7, 2 | - | 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3), RP-SMA (1) | IP67 | - | - | Panel Mount | 3.138" (79.70mm) | GLONASS, GPS, LTE, Wi-Fi |
|

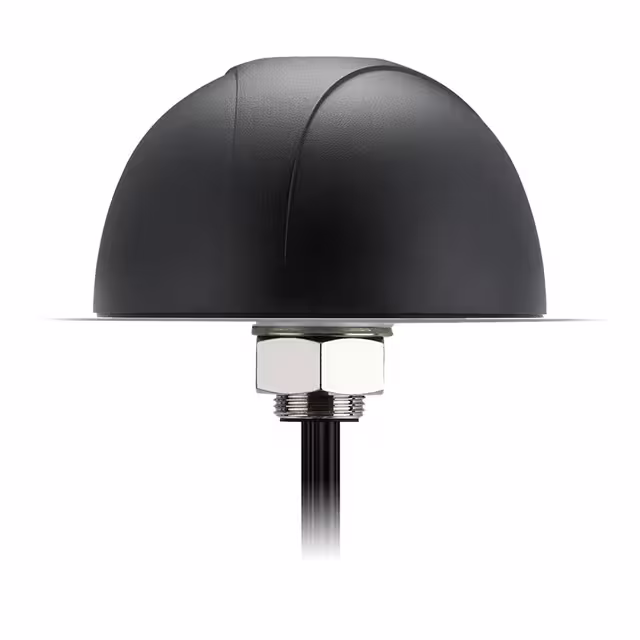

MA750.A.ABICG.003RF ANT 829MHZ/1.6GHZ DOME SMA ML Taoglas Limited |
82 |
|
规格书 |
Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.6GHz, 1.9GHz, 2.5GHz, 3.2GHz, 4.7GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 4.85GHz | Dome | 6 | 3, 2 | - | 32dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE, WLAN |
|

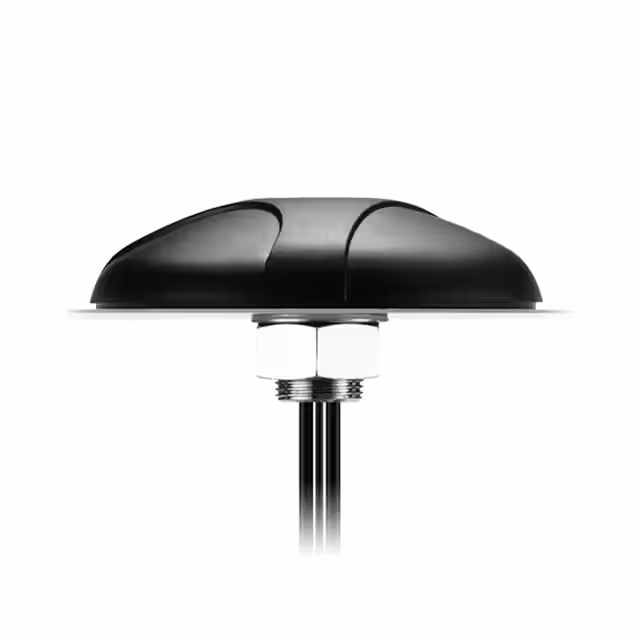

MA673.A.CGH.004RF ANT 2.4/5.38GHZ DOME RP-SMA Taoglas Limited |
45 |
|
规格书 |
Spartan | Box | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.38GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Dome | 2 | - | - | 5.64dBi | 5 W | - | RP-SMA Male | IP67 | - | - | Panel Mount | 1.575" (40.00mm) | - |
|

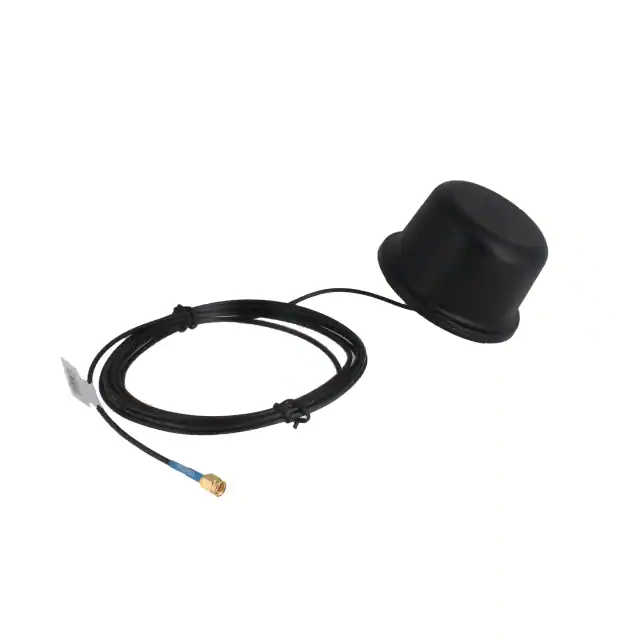

XAHP.50.A.301111ACTIVE MULTI-BAND GNSS ANTENNA 3 Taoglas Limited |
68 |
|
- |
- | Box | Active | Navigation | Wide Band | 1.176GHz, 1.2276GHz, 1.27875GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 6 | 1.3, 1.4, 1.5 | - | 7.4dBi, 6.2dBi, 6.8dBi, 3.2dBi, 4.2dBi, 4.2dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 2.283" (58.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MA1504.AK.0016 IN 1 BRAIDED ANT Taoglas Limited |
42 |
|
规格书 |
- | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.47GHz, 1.79GHz, 1.92GHz, 2.05GHz, 2.49GHz, 4.15GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Dome | 10 | - | - | -2.7dBi, -1.6dBi, 1.8dBi, 2.3dBi, 2.7dBi, 2.9dBi, 3.3dBi, 4.5dBi, 1.6dBi, 2.4dBi | 2 W | Cable - 300mm | SMA Male | IP67 | - | - | Bracket Mount | 2.263" (57.47mm) | 4G, 5G |
|

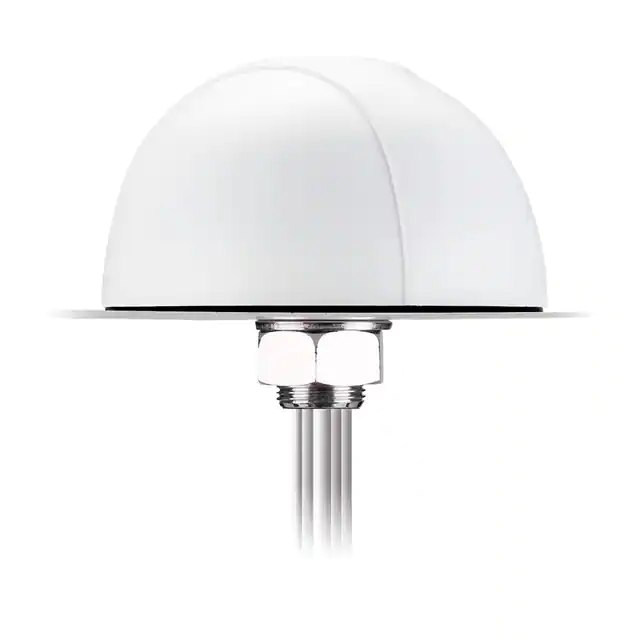

MA750.W.A.ABICG.003PANTHEON MA750 WHITE 5-IN-1 PERM Taoglas Limited |
32 |
|
规格书 |
Pantheon | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.57542GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.5GHz, 3.2GHz, 5.175GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 5.85GHz | Dome | 8 | 2, 3 | - | 4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | 2G, 3G, 4G, Galileo, GLONASS, GPS, LTE |
|

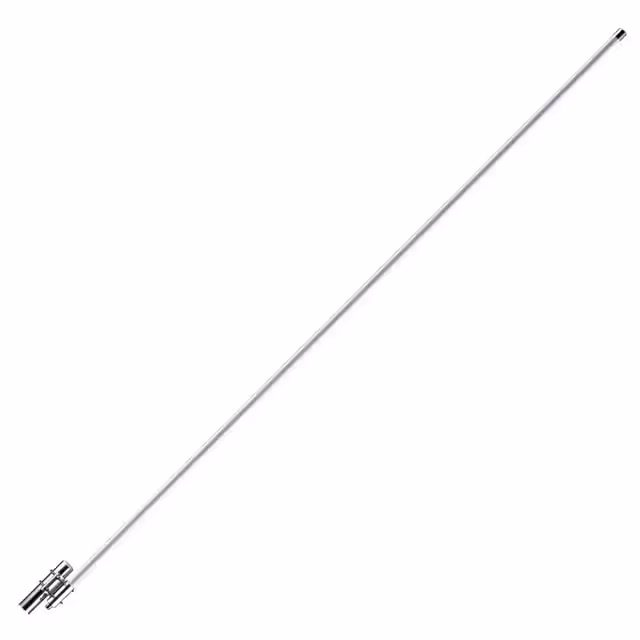

OMB.868.B12F21868MHZ 12DBI OMNI ANTENNA WITH N Taoglas Limited |
45 |
|
规格书 |
- | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 11.4dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 0.087" (2.20mm) | ISM |
|

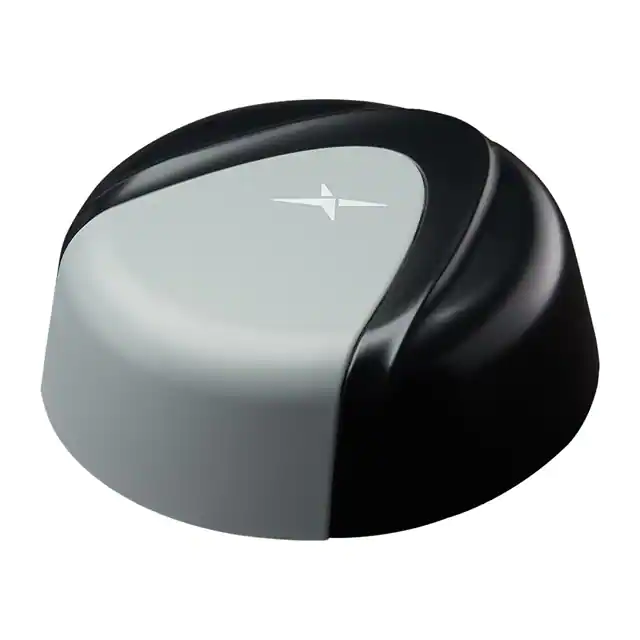

MA1508.AK.001SYNERGY 8-IN-1 GNSS SMA(M):4*5G/ Taoglas Limited |
161 |
|
规格书 |
Synergy | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 2.45GHz, 3.55GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.88GHz, 1.92GHz ~ 1.99GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, | Dome | 15 | 2, 2.5 | - | 0.25dBi, 1.44dBi, 2.93dBi, 3.76dBi, 3.75dBic, 4.44dBic, 4.54dBic, 4.55dBi, 2.93dBi, 3.97dBi, 5.06dBi, 3.12dBi, 5.99dBi, 7.03dBi, 6.28dBi | 2 W | Cable - 300mm, LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 4G/5G, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
|
|
WLA.042.4~2.5GHZ CERAMIC SUBSTRATE LOO Taoglas Limited |
5,337 |
|
规格书 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.7dBi | - | - | - | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
FXP890.07.0100C860-928MHZ ISM/LORA COMPACT FLEX Taoglas Limited |
186 |
|
规格书 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | PCB Trace | 2 | - | - | -0.9dBi, -0.06dBi | 10 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa |
