射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

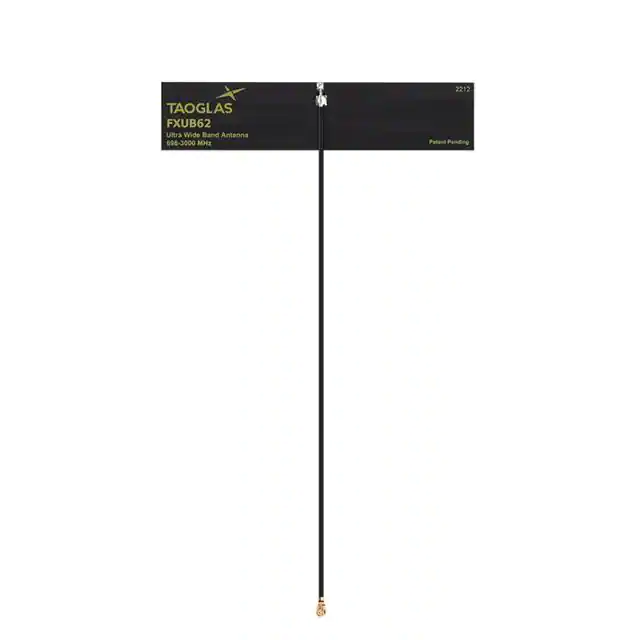

FXUB62.07.0150CWIDE BAND FLEX ANTENNA 698MHZ TO Taoglas Limited |
122 |
|
规格书 |
- | Bag | Active | AGPS, Cellular | Wide Band | 829MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz | FlexPIFA | 6 | - | -3.4dB, -9.7dB, -9.8dB, -10.5dB, -10.7dB | 2.4dBi, 4.5dBi, 5.9dBi, 5.9dBi, 4.6dBi, 4dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, LTE |
|

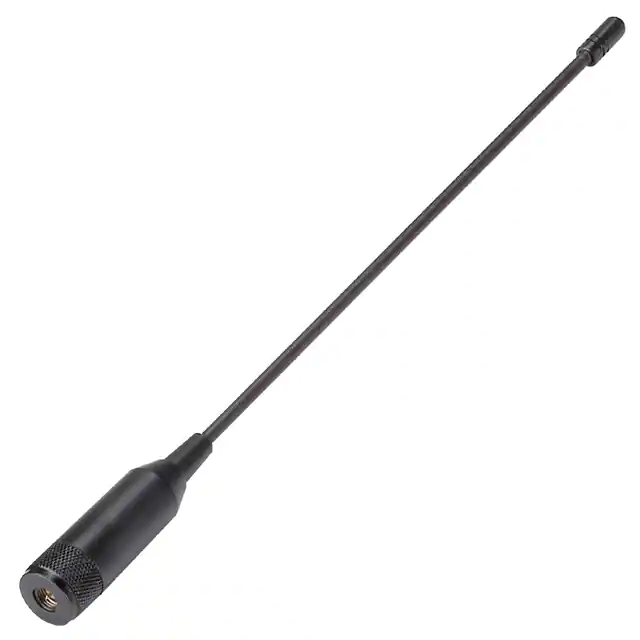

FW.86.B.SMA.MRF ANT 868MHZ WHIP STR SMA MALE Taoglas Limited |
216 |
|
规格书 |
Meteor | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | -10dB | 2.8dBi | 2 W | - | SMA Male | IP65 | - | - | Connector Mount | 9.449" (240.00mm) | ISM |
|
GW.23.A1512.4GHZ MONOPOLE ANTENNA RP-SMA(M Taoglas Limited |
166 |
|
规格书 |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz | Dome | 1 | - | - | -1.41dBi | 10 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 0.866" (22.00mm) | Bluetooth, Wi-Fi, WLAN |
|
FXUB63.54.0150CWIDE BAND FLEX ANTENNA, 150MM 1. Taoglas Limited |
188 |
|
规格书 |
- | Bulk | Active | AGPS, Cellular, General ISM, WiFi | Wide Band | 829MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | 698MHz ~ 3GHz | Flat Patch | 6 | 1.8, 1.9, 2, 5.2 | -3.4dB, -9.7dB, -9.8dB, -10.5dB, -10.7dB | 4.5dBi, 2.33dBi, 4.6dBi, 4.7dBi, 4.4dBi, 4dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | GPS, ISM, LTE, Wi-Fi |
|

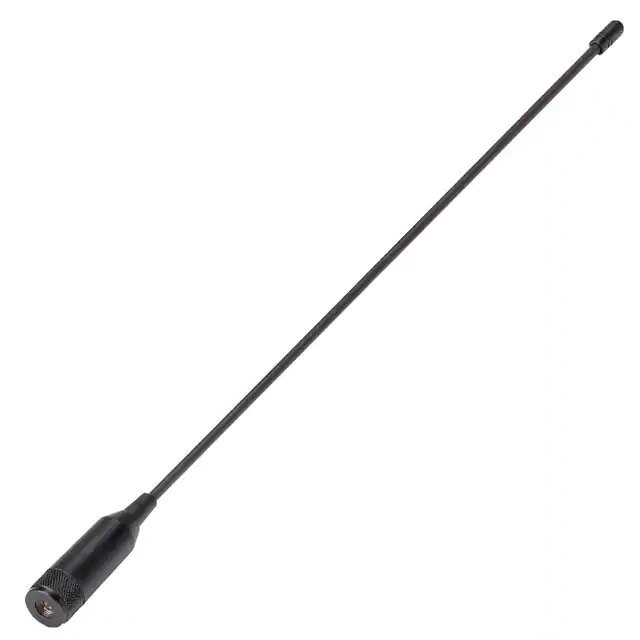

FW.24.SMA.MRF ANT 2.4GHZ WHIP STR SMA MALE Taoglas Limited |
123 |
|
规格书 |
Meteor | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 3 | -10dB | 4.4dBi | 2 W | - | SMA Male | IP67 | - | - | Connector Mount | 12.087" (307.00mm) | Bluetooth, Wi-Fi |
|

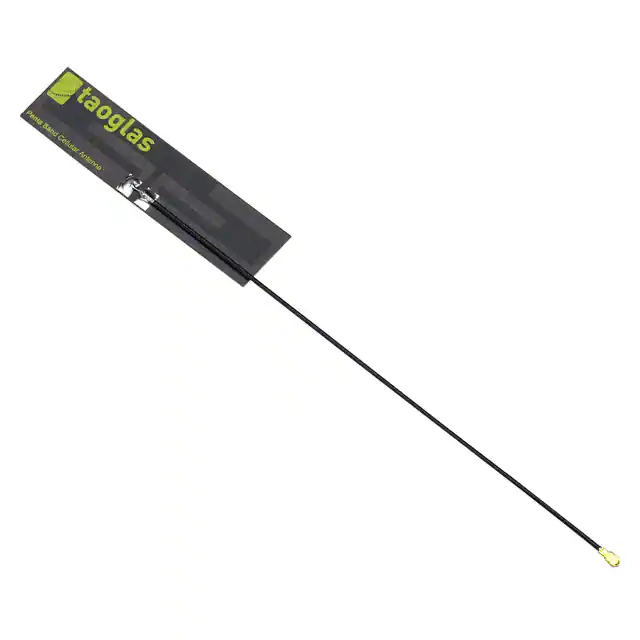

PC.104.07.0165CRF ANT 892MHZ/1.9GHZ FLAT PATCH Taoglas Limited |
1,182 |
|
规格书 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | - | -7dB, -10dB | 0.99dBi, 2.39dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | GSM, UMTS |
|
TG.30.8111RF ANT 750MHZ/892MHZ WHIP STR Taoglas Limited |
1,238 |
|
规格书 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Whip, Straight | 5 | - | - | 2dBi, 1.2dBi, 0.3dBi, 3dBi, 4.2dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 6.736" (171.10mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|

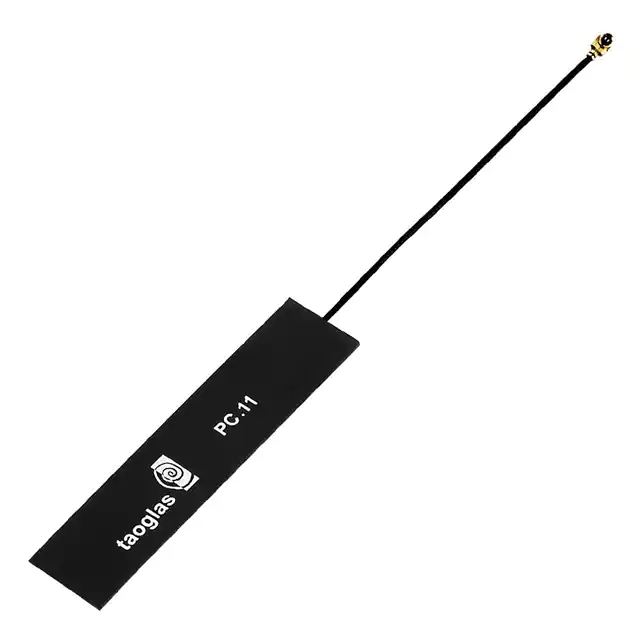

PC11.07.0100ARF ANT 2.4GHZ/5.2GHZ FLAT PATCH Taoglas Limited |
1,454 |
|
规格书 |
TheStripe™ | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | - | - | 3dBi, 4.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

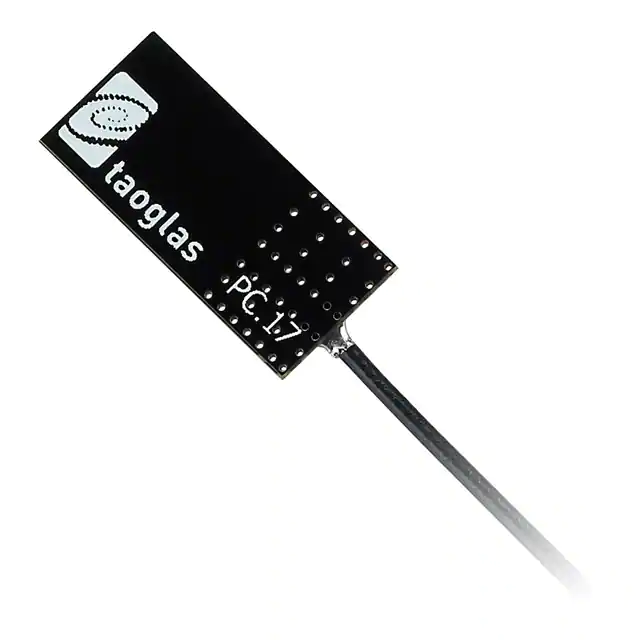

PC17.07.0070ARF ANT 2.4GHZ PCB TRCE IPEX MHFI Taoglas Limited |
984 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | 1.5 | -12dB | 0.9dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, WLAN, Zigbee™ |
|
AP.17F.07.0064ARF ANT 1.575GHZ CER PATCH IPEX Taoglas Limited |
391 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
