键盘开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

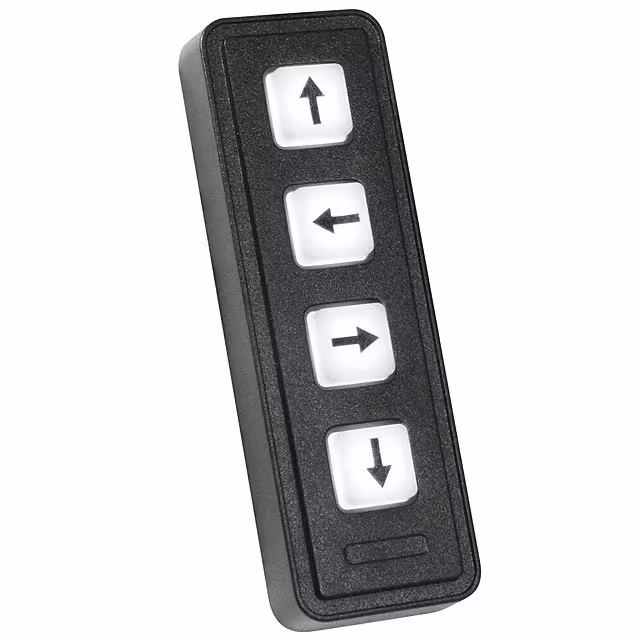

7203-04CW203SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
1 |
|
规格书 |
720 TFX-i | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Illuminated - White | Fixed | Polymer | Matrix | Arrows | Black | White | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|

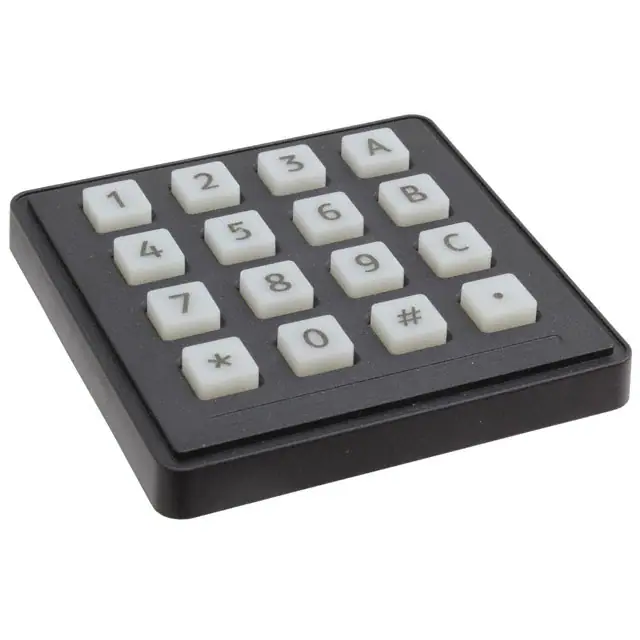

7203-16T0203SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
0 |
|
规格书 |
720 TFX | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ C | Black | White | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
70360203SWITCH KEYPAD 36KEY 0.05A 24V Storm Interface |
0 |
|
规格书 |
700 | Bulk | Active | Conductive Rubber | 36 | - | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Black Housing |
|
FT4K1003SWITCH KEYPAD 20KEY 0.05A 24V Storm Interface |
0 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Telephone Format, A ~ D | Black | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|
6000-210023SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
0 |
|
规格书 |
6000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 115.00mm x 109.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
8616-310023SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
0 |
|
规格书 |
SF6000 | Box | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format, Function Keys | Black | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 97.00mm x 79.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
DX2KW203SWITCH KEYPAD 12 KEY 3A 120V Storm Interface |
0 |
|
规格书 |
StrikeMaster ES | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated | Fixed | Transparent Key Cap | Non-Standard (Controller Needed) | Telephone Format | Black | White | Panel Mount, Front | Screw Terminal | - | - | IP65 - Dust Tight, Water Resistant | - | 3A @ 120VAC | - |
|
FT4K0903SWITCH KEYPAD 20KEY 0.05A 24V Storm Interface |
0 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Illuminated | Interchangeable | Transparent Key Cap | Matrix | Telephone Format, A ~ D | Black | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | Display |
|
AT02-430H13SWITCH KEYPAD 2KEY ILLUM Storm Interface |
0 |
|
规格书 |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
AT02-530H13SWITCH KEYPAD 2KEY ILLUM Storm Interface |
0 |
|
规格书 |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
