键盘开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8616-410023SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
11 |
|
规格书 |
SF6000 | Box | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated | Fixed | Transparent Key Cap | Matrix | Telephone Format, Function Keys | Black | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 97.00mm x 79.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | 5 VDC | 0.05A @ 24VDC | - |
|
FT2K0503SWITCH KEYPAD 20KEY 0.05A 24V Storm Interface |
12 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
EZ06-23001SWITCH KEYPAD 6KEY NON-ILLUM Storm Interface |
9 |
|
规格书 |
NAV-Pad™ | Bulk | Active | Conductive Rubber | 6 | - | Non-Illuminated | Fixed | Polymer | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | USB Socket | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
AT02-430013SWITCH KEYPAD 2KEY ILLUM Storm Interface |
10 |
|
规格书 |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
EZB6-730023SWITCH KEYPAD 6KEY ILLUM Storm Interface |
8 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

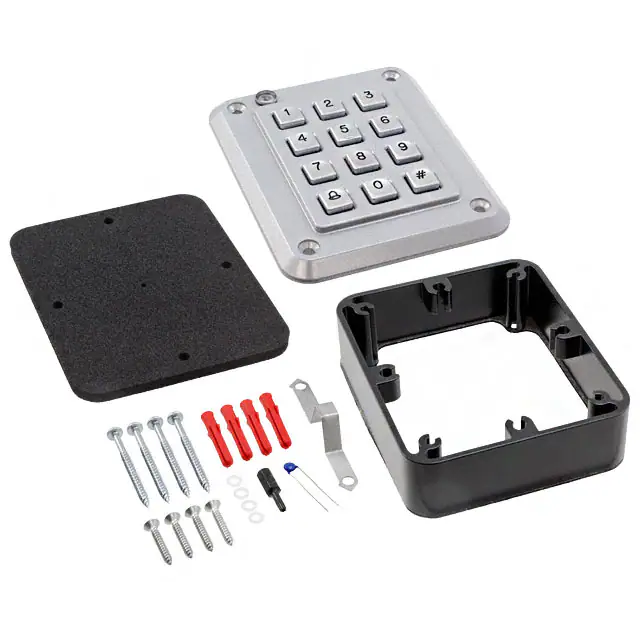

DE1KT103SWITCH KEYPAD 12KEY NON-ILLUM Storm Interface |
10 |
|
规格书 |
AXS | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Non-Standard (Controller Included) | Telephone Format | Black | Silver | Panel Mount, Front | Screw Terminal | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|

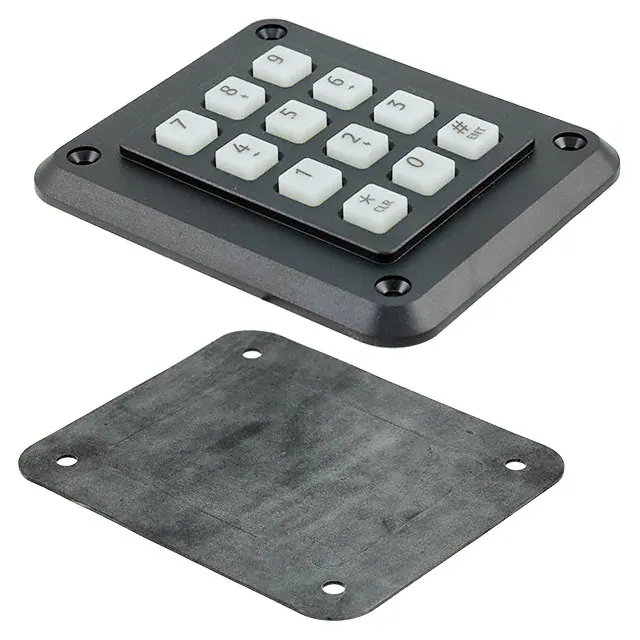

3K120103SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface |
32 |
|
规格书 |
3000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

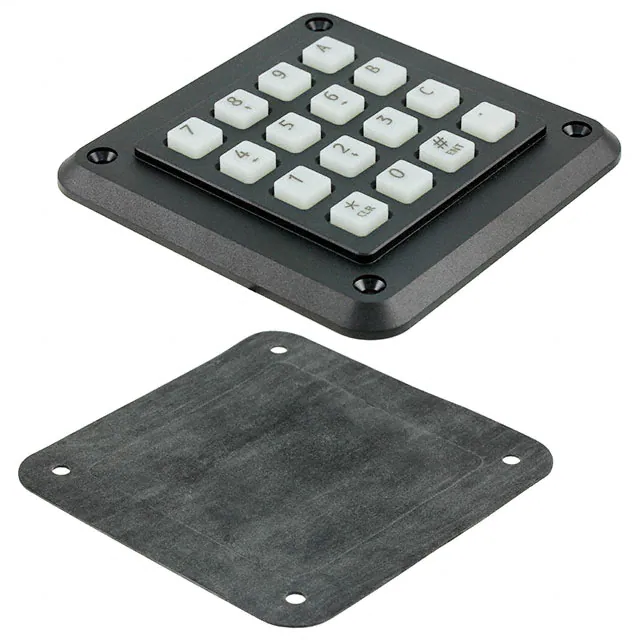

3K160103SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
15 |
|
规格书 |
3000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

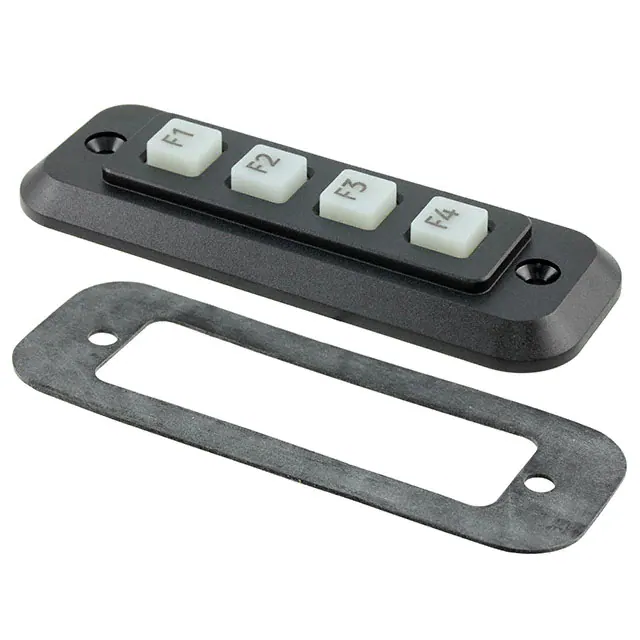

2K042103SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
6 |
|
规格书 |
2000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | F1 ~ F4 | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

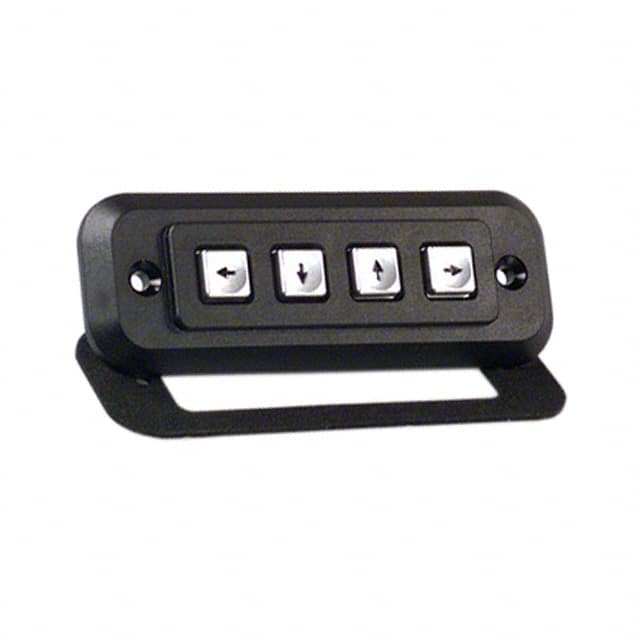

PLX041203SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
72 |
|
规格书 |
1000 PLX | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Arrows | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
