上传BOM
键盘开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZB2-405003SWITCH KEYPAD 2KEY ILLUM Storm Interface |
5 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | - | - | - | White | Panel Mount, Front | Cable with Connector | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|

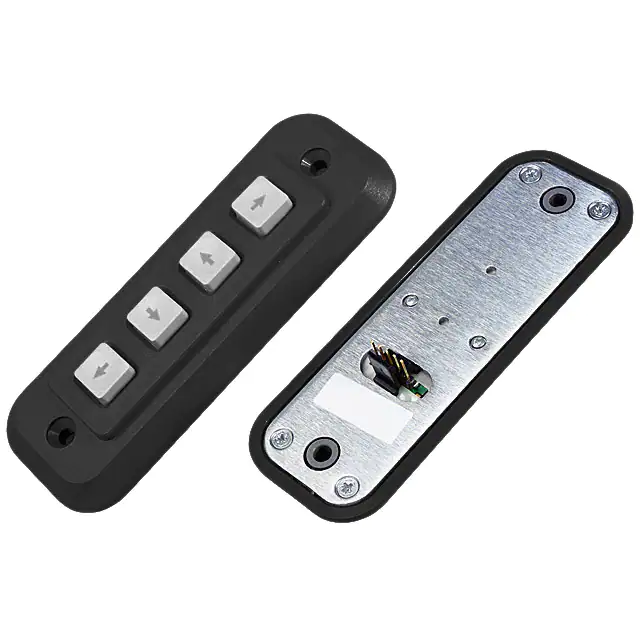

2K041103SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
19 |
|
规格书 |
2000 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Arrows | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

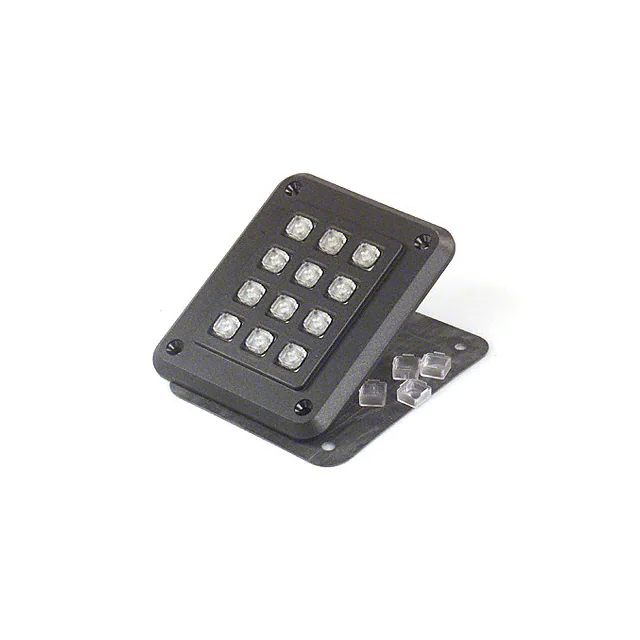

GS120203SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface |
7 |
|
规格书 |
GFX | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

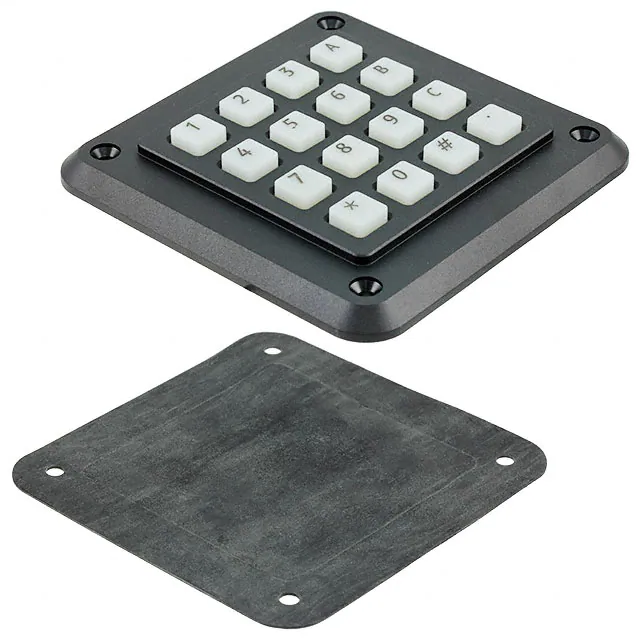

2K16T103SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
3 |
|
规格书 |
2000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|
EZB2-505003SWITCH KEYPAD 2KEY ILLUM Storm Interface |
13 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | - | - | - | White | Panel Mount, Front | Cable with Connector | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | - |
|
8616-210023SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
4 |
|
规格书 |
SF6000 | Box | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 97.00mm x 79.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
EZB6-730003SWITCH KEYPAD 6KEY ILLUM Storm Interface |
4 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
AT02-530013SWITCH KEYPAD 2KEY ILLUM Storm Interface |
7 |
|
规格书 |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
EZB6-430003SWITCH KEYPAD 6KEY ILLUM Storm Interface |
5 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|

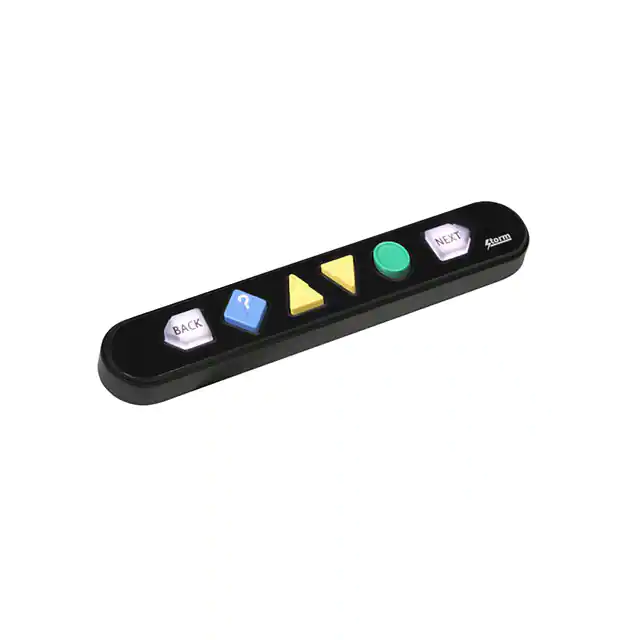

EZB6-630003SWITCH KEYPAD 6KEY ILLUM Storm Interface |
2 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
